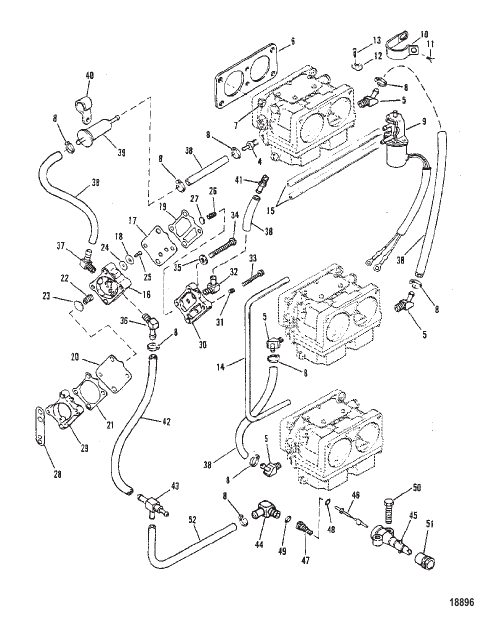

FUEL PUMP AND CARBURETOR
Parts (53)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11338A88 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт двигателя GASKET SET Engine Overhaul |
1 | discontinued |
| 1 | 9671A1 |
КАРБЮРАТОР (TOP) CARBURETOR (TOP) |
1 | discontinued |
| 10 | 633001 |
ЗАЖИМ ENRICHER VALVE CLAMP ENRICHER VALVE |
1 | discontinued |
| 11 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь VALVE CLAMP SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP |
1 | |
| 12 | 45915 |
КЛЕММНАЯ КОЛОДКА REED BLOCK HOUSING TERMINAL BLOCK REED BLOCK HOUSING |
2 | |
| 13 | 35519 |
ВИНТ (№10-16 x 0.500) TERMINAL BLOCK ATTACHING SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING |
2 | discontinued |
| 14 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) TOP CARBURETOR TO VALVE (Cut to 7.75 Inches) TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (Cut to 7.75 Inches) |
1 | superseded |
| 15 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") CARBURETOR TO CARBURETOR (Cut to 4.25 Inches) TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (Cut to 4.25 Inches) |
2 | |
| 16 | 15930A15 |
КОМПЛЕКТ НАСОСА Топливо PUMP KIT Fuel |
1 | |
| 17 | 42990A3 |
КОМПЛЕКТ ДИАФРАГМ DIAPHRAGM KIT |
1 | superseded |
| 18 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Check Valve-Rubber NOT SOLD SEPARATE Check Valve-Rubber |
2 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Boost NOT SOLD SEPARATE Gasket-Boost |
1 | |
| 2 | 9671A2 |
КАРБЮРАТОР (CENTER) CARBURETOR (CENTER) |
1 | discontinued |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Diaphragm NOT SOLD SEPARATE Diaphragm |
2 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Pulse NOT SOLD SEPARATE Gasket-Pulse |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring NOT SOLD SEPARATE Spring |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cap NOT SOLD SEPARATE Cap |
1 | |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Check Vavle NOT SOLD SEPARATE Check Vavle |
2 | |
| 25 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Retainer NOT SOLD SEPARATE Retainer |
2 | |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring NOT SOLD SEPARATE Spring |
1 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cap NOT SOLD SEPARATE Cap |
1 | |
| 28 | 98769 |
ПРОКЛАДКА BASE GASKET BASE |
1 | superseded |
| 29 | 144303 |
БАЗА FUEL PUMP BASE FUEL PUMP |
1 | |
| 3 | 9671A3 |
КАРБЮРАТОР (BOTTOM) CARBURETOR (BOTTOM) |
1 | discontinued |
| 30 | 98775A2 |
ПЛАСТИНА FUEL PUMP PLATE FUEL PUMP |
1 | superseded |
| 31 | 56800 |
ПРОБКА Труба (0.0625-27) PLUG Pipe (.0625-27) |
1 | |
| 32 | 64704 |
ФИТИНГ FITTING |
1 | superseded |
| 33 | 16452 |
ВИНТ (№12-24 x 2.00) FUEL PUMP SCREW (#12-24 x 2.00) FUEL PUMP |
2 | |
| 34 | 4000310 |
ВИНТ (M5 x 40) FUEL PUMP TO CRANKCASE SCREW (M5 x 40) FUEL PUMP TO CRANKCASE |
2 | discontinued |
| 35 | 4002314 |
ШАЙБА FUEL PUMP SCREW WASHER FUEL PUMP SCREW |
2 | |
| 36 | 14868 |
ФИТИНГ FUEL PUMP (ELBOW) FITTING FUEL PUMP (ELBOW) |
1 | |
| 37 | 64704 |
ФИТИНГ FUEL PUMP (ELBOW) FITTING FUEL PUMP (ELBOW) |
1 | superseded |
| 38 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") LINE (57.00 Inches Bulk) |
1 | superseded |
| 39 | 16494 |
ФИЛЬТР Топливо FILTER Fuel |
1 | superseded |
| 4 | 6232 |
ФИТИНГ FUEL INLET (UPPER) FITTING FUEL INLET (UPPER) |
1 | discontinued |
| 40 | 15279 |
ЗАЖИМ FUEL FILTER CLAMP FUEL FILTER |
1 | discontinued |
| 41 | 64705 |
ФИТИНГ PULSE HOSE FITTING PULSE HOSE |
1 | |
| 42 | 9912976 |
ТРУБОПРОВОД TUBING |
1 | superseded |
| 43 | 424251 |
ТРОЙНИК TEE |
1 | superseded |
| 44 | 36221 |
КОЛЕНЧАТЫЙ FUEL LINE TO ADAPTOR ELBOW FUEL LINE TO ADAPTOR |
1 | discontinued |
| 45 | 30186 |
ПЕРЕХОДНИК CHECK UNIT ADAPTER CHECK UNIT |
1 | discontinued |
| 46 | 30187 |
ШТОК CHECK UNIT ADAPTOR STEM CHECK UNIT ADAPTOR |
1 | discontinued |
| 47 | 30189 |
ПРУЖИНА ADAPTOR STEM SPRING ADAPTOR STEM |
1 | |
| 48 | 20415 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО ADAPTOR STEM O-RING ADAPTOR STEM |
1 | superseded |
| 49 | 30188 |
ШАЙБА ADAPTOR WASHER ADAPTOR |
1 | |
| 5 | 70007 |
ФИТИНГ 45 градусов FUEL INLET FITTING 45 Degree FUEL INLET |
4 | |
| 50 | 69067 |
ВИНТ (0.250-20 x 1.375) ADAPTOR TO BOTTOM COWL SCREW (.250-20 x 1.375) ADAPTOR TO BOTTOM COWL |
1 | |
| 51 | 92037 |
УПЛОТНЕНИЕ FUEL CONNECTOR SEAL FUEL CONNECTOR |
1 | discontinued |
| 52 | 9912976 |
ТРУБОПРОВОД TUBING |
1 | superseded |
| 6 | 90430 |
ПРОКЛАДКА CARBURETOR GASKET CARBURETOR |
3 | superseded |
| 7 | 20184 |
ГАЙКА (1/4-28X7/32) CARBURETOR MOUNTING NUT (1/4-28X7/32) CARBURETOR MOUNTING |
12 | superseded |
| 8 | 73498 |
ЗАЖИМ FUEL HOSE TO CARBURETOR CLAMP FUEL HOSE TO CARBURETOR |
AR | superseded |
| 9 | 42859A2 |
КЛАПАН В СБОРЕ Обогатитель VALVE ASSEMBLY Enrichner |
1 |
