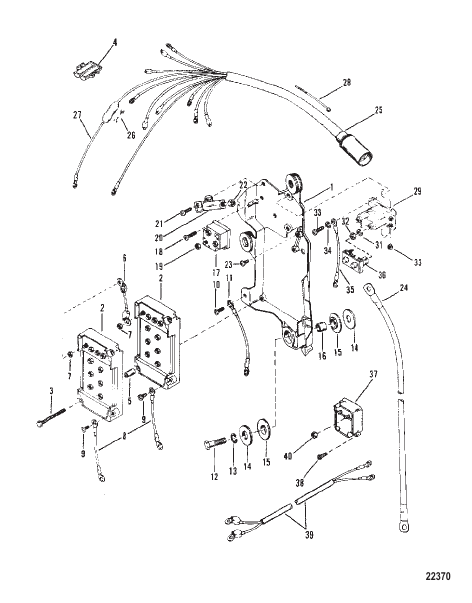

WIRING HARNESS, STARTER SOLENOID AND RECTIFIER
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 43429 |
ПЛАСТИНА IGNITION PLATE IGNITION |
1 | superseded |
| 10 | 38055 |
ВИНТ (0.190-32 x 0.620) CABLE TO IGNITION PLATE SCREW (.190-32 x .620) CABLE TO IGNITION PLATE |
1 | discontinued |
| 11 | 65999A3 |
КАБЕЛЬ В СБОРЕ Черный CABLE ASSEMBLY Black |
1 | discontinued |
| 12 | 69092 |
ВИНТ (1.25) IGNITION PLATE SCREW (1.25) IGNITION PLATE |
3 | superseded |
| 13 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) IGNITION PLATE SCREW LOCKWASHER (.312) IGNITION PLATE SCREW |
3 | superseded |
| 14 | 36042 |
ШАЙБА IGNITION PLATE SCREW WASHER IGNITION PLATE SCREW |
6 | |
| 15 | 67264 |
ШАЙБА (Резина) IGNITION PLATE SCREW WASHER (Rubber) IGNITION PLATE SCREW |
6 | |
| 16 | 67268 |
ВТУЛКА IGNITION PLATE SCREW BUSHING IGNITION PLATE SCREW |
3 | discontinued |
| 17 | 62351A1 |
ВЫПРЯМИТЕЛЬ RECTIFIER |
1 | superseded |
| 18 | 38055 |
ВИНТ (0.190-32 x 0.620) RECTIFIER TO IGNITION PLATE SCREW (.190-32 x .620) RECTIFIER TO IGNITION PLATE |
2 | discontinued |
| 19 | 45076 |
ГАЙКА (№10-32), латунь RECTIFIER TERMINALS NUT (#10-32) Brass RECTIFIER TERMINALS |
3 | |
| 2 | 7778A6 |
РАСПРЕДЕЛИТЕЛЬНАЯ КОРОБКА В СБОРЕ SWITCHBOX ASSEMBLY |
2 | superseded |
| 20 | 33386A3 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SWITCH ASSEMLBY |
1 | discontinued |
| 21 | 38055 |
ВИНТ (0.190-32 x 0.620) MERCURY SWITCH TO IGNITION PLATE SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE |
1 | discontinued |
| 22 | 45076 |
ГАЙКА (№10-32), латунь MERCURY SWITCH TERMINAL NUT (#10-32) Brass MERCURY SWITCH TERMINAL |
1 | |
| 23 | 87926 |
ВИНТ (№10-32 x 0.500) LEAD ATTACHING SCREW (#10-32 x .500) LEAD ATTACHING |
1 | discontinued |
| 24 | 88439A14 |
КАБЕЛЬ В СБОРЕ Аккумулятор – положительный полюс POSITIVE CABLE ASSEMBLY Battery - Positive POSITIVE |
1 | |
| 24 | 88439A2 |
КАБЕЛЬ В СБОРЕ Аккумулятор – отрицательный полюс NEGATIVE CABLE ASSEMBLY Battery - Negative NEGATIVE |
1 | |
| 25 | 96220A4 |
ЖГУТ ПРОВОДОВ В СБОРЕ ENGINE HARNESS ASSEMBLY ENGINE |
1 | |
| 26 | 79091 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | superseded |
| 27 | 95084A2 |
КАБЕЛЬ В СБОРЕ FUSE CABLE ASSEMBLY FUSE |
1 | |
| 28 | 73498 |
ЗАЖИМ HARNESS AND CABLES CLAMP HARNESS AND CABLES |
AR | superseded |
| 29 | 15857 |
ЭЛЕКТРОМАГНИТ Стартер 10-32 5/16-18 TERMINALS SOLENOID Starter 10-32 5/16-18 TERMINALS |
1 | superseded |
| 3 | 13669 |
ВИНТ (№12-24 x 2.00) SWITCH BOX TO IGNITION PLATE SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE |
2 | discontinued |
| 30 | 45076 |
ГАЙКА (№10-32), латунь SOLENOID TERMINALS 10-32 5/16-18 TERMINALS NUT (#10-32) Brass SOLENOID TERMINALS 10-32 5/16-18 TERMINALS |
2 | |
| 31 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) SOLENOID TERMINALS 10-32 5/16-18 TERMINALS LOCKWASHER (.312) SOLENOID TERMINALS 10-32 5/16-18 TERMINALS |
2 | |
| 32 | 68292 |
ГАЙКА (0.312-18) SOLENOID TERMINALS 10-32 5/16-18 TERMINALS NUT (.312-18) SOLENOID TERMINALS 10-32 5/16-18 TERMINALS |
2 | superseded |
| 33 | 31716 |
ВИНТ (0.250-20 x 0.620) SOLENOID TO IGNITION PLATE SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE |
2 | discontinued |
| 34 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь SOLENOID TO IGNITION PLATE SCREW LOCKWASHER (.250) Stainless Steel SOLENOID TO IGNITION PLATE SCREW |
2 | |
| 35 | 65999A2 |
КАБЕЛЬ В СБОРЕ Черный UPPER MOUNT CABLE ASSEMBLY Black UPPER MOUNT |
1 | discontinued |
| 36 | 97861 |
РАЗЪЕДИНИТЕЛЬ SOLENOID INSULATOR SOLENOID |
1 | |
| 37 | 88825A7 |
РЕГУЛЯТОР НАПРЯЖЕНИЯ VOLTAGE REGUALTOR |
1 | discontinued |
| 38 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь VOLTAGE REGULATOR SCREW (#10-16 x .625) Stainless Steel VOLTAGE REGULATOR |
2 | |
| 39 | 13397A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 4 | 134731 |
ДЕРЖАТЕЛЬ Предохранитель HOLDER Fuse |
1 | discontinued |
| 40 | 45076 |
ГАЙКА (№10-32), латунь VOLTAGE REGULATOR NUT (#10-32) Brass VOLTAGE REGULATOR |
2 | |
| 5 | 94453 |
ВТУЛКА SWITCH BOX SCREW BUSHING SWITCH BOX SCREW |
2 | discontinued |
| 6 | 62310A2 |
КАБЕЛЬ В СБОРЕ SWITCH BOX TO SWITCH BOX CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX |
1 | |
| 7 | 45076 |
ГАЙКА (№10-32), латунь SWITCH BOX TERMINAL NUT (#10-32) Brass SWITCH BOX TERMINAL |
20 | |
| 8 | 60871A10 |
ПРОВОД В СБОРЕ SWITCH BOX WIRE ASSEMBLY SWITCH BOX |
2 | |
| 9 | 62568 |
ВИНТ (№10-16 x 0.375) WIRE ATTACHING SCREW (#10-16 x .375) WIRE ATTACHING |
2 |
