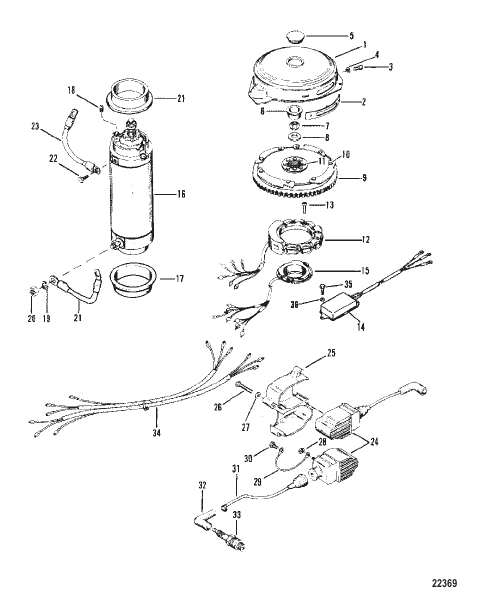

FLYWHEEL, STARTER MOTOR AND IGNITION COILS
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 79918A1 |
КОМПЛЕКТ КРЫШЕК FLYWHEEL COVER KIT FLYWHEEL |
1 | |
| 10 | 32417 |
ВИНТ (0.250-28 x 0.625) FLYWHEEL PLATE SCREW (.250-28 x .625) FLYWHEEL PLATE |
8 | discontinued |
| 11 | 68997 |
ВИНТ (0.312-24 x 0.750) FLYWHEEL HUB SCREW (.312-24 x .750) FLYWHEEL HUB |
8 | |
| 12 | 5454A35 |
СТАТОР STATOR |
1 | |
| 13 | 76566 |
ВИНТ (№10-24 x 1.00) STATOR SCREW (#10-24 x 1.00) STATOR |
4 | superseded |
| 14 | 93772A5 |
МОДУЛЬ MODULE |
1 | superseded |
| 15 | 96455A9 |
ПЛАСТИНА В СБОРЕ Триггер PLATE ASSEMBLY Trigger |
1 | |
| 16 | 79472 |
СТАРТЕР В СБОРЕ (8 TOOTH PINION) STARTER MOTOR ASSEMBLY (8 TOOTH PINION) |
1 | superseded |
| 17 | 56703 |
ВТУЛКА STARTER MOTOR COLLAR STARTER MOTOR |
2 | superseded |
| 18 | 68042 |
СТОП Резина RUBBER - STARTER MOTOR STOP Rubber RUBBER - STARTER MOTOR |
2 | superseded |
| 19 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь STARTER MOTOR TERMINAL LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL |
1 | |
| 2 | 79022 |
МАРКЕР TIMING MARKER TIMING |
1 | |
| 20 | 20890 |
ГАЙКА (0.250-20) STARTER MOTOR TERMINAL NUT (.250-20) STARTER MOTOR TERMINAL |
1 | |
| 21 | 93388A2 |
КАБЕЛЬ В СБОРЕ Черный SOLENIOD TO STARTER MOTOR CABLE ASSEMBLY Black SOLENIOD TO STARTER MOTOR |
1 | superseded |
| 22 | 69035 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.250-20 x 0.625), нержавеющая сталь CABLE TO STARTER MOTOR SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR |
1 | |
| 23 | 93388A1 |
КАБЕЛЬ В СБОРЕ (6.00"), черный PLATE TO STARTER MOTOR CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR |
1 | |
| 24 | 7370A13 |
КАТУШКА В СБОРЕ Зажигание IGNITION COIL ASSEMBLY Ignition IGNITION |
6 | superseded |
| 25 | 67614 |
КРЫШКА IGNITION COIL COVER IGNITION COIL |
3 | discontinued |
| 26 | 88447 |
ВИНТ (0.190-32 x 1.62) IGNITION COIL COVER SCREW (.190-32 x 1.62) IGNITION COIL COVER |
12 | |
| 27 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь IGNITION COIL COVER SCREW WASHER (.192 x .375 x .0312) Stainless Steel IGNITION COIL COVER SCREW |
12 | |
| 28 | 45076 |
ГАЙКА (№10-32), латунь IGNITION COIL TERMINAL NUT (#10-32) Brass IGNITION COIL TERMINAL |
12 | |
| 29 | 88807A6 |
КАБЕЛЬ В СБОРЕ (3.50"), черный IGNITION COIL CABLE ASSEMBLY (3.50 Inches) Black IGNITION COIL |
6 | |
| 3 | 37572 |
ВИНТ (0.190-32 x 0.380) TIMING MARKER SCREW (.190-32 x .380) TIMING MARKER |
2 | |
| 30 | 68513 |
ВИНТ (№10-32 x 0.375), нержавеющая сталь GROUND STRAP SCREW (#10-32 x .375) Stainless Steel GROUND STRAP |
6 | |
| 31 | 99215A25 |
ЖИЛА В СБОРЕ HIGH TENSION LEAD ASSEMBLY HIGH TENSION |
6 | superseded |
| 32 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ HIGH TENSION CABLE BOOT/TERMINAL KIT HIGH TENSION CABLE |
6 | |
| 33 | 136862 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
6 | superseded |
| 34 | 69738A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ COIL TO SWITCH BOX (#2, 4 AND 6) HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 AND 6) |
1 | superseded |
| 34 | 69739A2 |
ЖГУТ ПРОВОДОВ В СБОРЕ COIL TO SWITCH BOX (#1, 3 AND 5) HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 AND 5) |
1 | |
| 35 | 69020 |
ВИНТ (№10-32 x 0.875) ADVANCE MODULE SCREW (#10-32 x .875) ADVANCE MODULE |
3 | superseded |
| 36 | 38833 |
ШАЙБА ADVANCE MODULE SCREW WASHER ADVANCE MODULE SCREW |
3 | |
| 4 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь TIMING MARKER SCREW WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW |
2 | |
| 5 | 89219 |
ПРОБКА FLYWHEEL COVER PLUG FLYWHEEL COVER |
1 | superseded |
| 6 | 45907 |
ПРОБКА Желтый FLYWHEEL PLUG Yellow FLYWHEEL |
1 | |
| 7 | 52901 |
ГАЙКА (.625-18) FLYWHEEL NUT (.625-18) FLYWHEEL |
1 | |
| 8 | 68229 |
ШАЙБА (0.641 x 1.250 x 0.190) FLYWHEEL WASHER (.641 x 1.250 x .190) FLYWHEEL |
1 | superseded |
| 9 | 7555A17 |
МАХОВИК FLYWHEEL |
1 | superseded |
