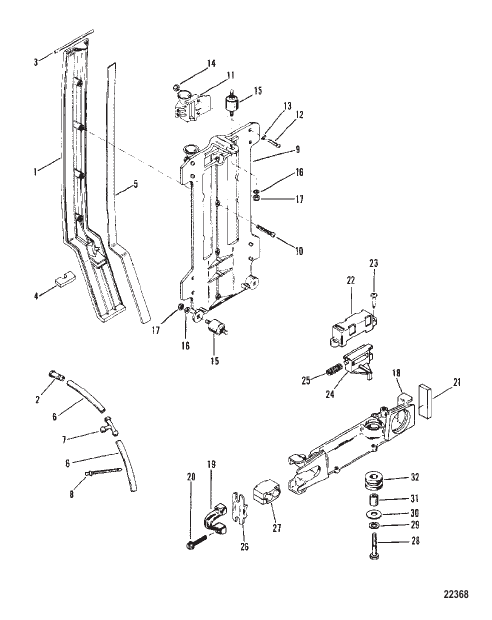

COWL MOUNTING BRACKET
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 76258A2 |
КРОНШТЕЙН REAR COWL (BLACK) BRACKET REAR COWL (BLACK) |
1 | discontinued |
| 1 | 76258A3 |
КРОНШТЕЙН REAR COWL (GRAY) BRACKET REAR COWL (GRAY) |
1 | discontinued |
| 10 | 66687 |
ВИНТ (№10-32 x 1.50) REAR COWL BRACKET SCREW (#10-32 x 1.50) REAR COWL BRACKET |
4 | |
| 11 | 85651 |
КОРПУС COWL HINGE - PORT HOUSING COWL HINGE - PORT |
2 | discontinued |
| 11 | 85650 |
КОРПУС COWL HINGE - STARBOARD HOUSING COWL HINGE - STARBOARD |
2 | discontinued |
| 12 | 64278 |
ВИНТ (0.250-28 x 1.00) COWL HINGE HOUSING SCREW (.250-28 x 1.00) COWL HINGE HOUSING |
8 | discontinued |
| 13 | 20583 |
ШАЙБА COWL HINGE HOUSING SCREW WASHER COWL HINGE HOUSING SCREW |
8 | |
| 14 | 35888 |
ГАЙКА (0.250-28), нержавеющая сталь COWL HINGE HOUSING SCREW NUT (.250-28) Stainless Steel COWL HINGE HOUSING SCREW |
8 | |
| 15 | 90435 |
КРЕПЛЕНИЕ COWL MOUNTING BRACKET MOUNT COWL MOUNTING BRACKET |
3 | |
| 16 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь COWL MOUNTING BRACKET MOUNT WASHER (.281 x .500 x .060) Stainless Steel COWL MOUNTING BRACKET MOUNT |
6 | superseded |
| 17 | 35888 |
ГАЙКА (0.250-28), нержавеющая сталь COWL MOUNTING BRACKET MOUNT NUT (.250-28) Stainless Steel COWL MOUNTING BRACKET MOUNT |
6 | |
| 18 | 99424 |
КРОНШТЕЙН COWL MOUNTING (LOWER) BRACKET COWL MOUNTING (LOWER) |
1 | discontinued |
| 19 | 99447T |
ФИКСАТОР CABLE RETAINER CABLE |
1 | superseded |
| 2 | 76256 |
ШТУЦЕР TELL TALE NOZZLE TELL TALE |
1 | discontinued |
| 20 | 22411 |
ВИНТ (0.190-24 x 1.00) CABLE RETAINER SCREW (.190-24 x 1.00) CABLE RETAINER |
2 | superseded |
| 21 | 67260 |
УПЛОТНЕНИЕ CONTROL CABLES SEAL CONTROL CABLES |
1 | discontinued |
| 22 | 67241 |
КОРПУС COWL LATCH HOUSING COWL LATCH |
1 | |
| 23 | 92051 |
ВИНТ (10-16 x 0.75) COWL LATCH HOUSING SCREW (10-16 x .75) COWL LATCH HOUSING |
2 | |
| 24 | 87608 |
ЗАЩЕЛКА Кожух LATCH Cowl |
1 | discontinued |
| 25 | 60295 |
ПРУЖИНА COWL LATCH SPRING COWL LATCH |
1 | discontinued |
| 26 | 88622 |
ПЛАСТИНА CABLE RETAINER PLATE CABLE RETAINER |
1 | discontinued |
| 27 | 99391 |
ФИКСАТОР OIL LINES RETAINER OIL LINES |
1 | discontinued |
| 28 | 69067 |
ВИНТ (0.250-20 x 1.375) LOWER BRACKET SCREW (.250-20 x 1.375) LOWER BRACKET |
2 | |
| 29 | 20346 |
ШАЙБА LOWER BRACKET SCREW (SMALL) WASHER LOWER BRACKET SCREW (SMALL) |
4 | superseded |
| 3 | 67984 |
УПЛОТНЕНИЕ REAR COWL BRACKET TO COWL SEAL REAR COWL BRACKET TO COWL |
1 | discontinued |
| 30 | 57427 |
ШАЙБА LOWER BRACKET SCREW (LARGE) WASHER LOWER BRACKET SCREW (LARGE) |
4 | superseded |
| 31 | 88180 |
ВТУЛКА LOWER BRACKET GROMMET BUSHING LOWER BRACKET GROMMET |
2 | discontinued |
| 32 | 88033 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО LOWER BRACKET GROMMET LOWER BRACKET |
2 | discontinued |
| 4 | 67228 |
УПЛОТНЕНИЕ REAR COWL BRACKET TO COWL SEAL REAR COWL BRACKET TO COWL |
1 | discontinued |
| 5 | 67999 |
УПЛОТНЕНИЕ REAR COWL BRACKET TO COWL SEAL REAR COWL BRACKET TO COWL |
2 | discontinued |
| 6 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") TELL TALE (Cut to 4 Inches) LINE (57.00 Inches Bulk) TELL TALE (Cut to 4 Inches) |
2 | superseded |
| 7 | 90824 |
ТРОЙНИК TELL TALE HOSE TEE TELL TALE HOSE |
1 | superseded |
| 8 | 73498 |
ЗАЖИМ TELL TALE HOSE CLAMP TELL TALE HOSE |
AR | superseded |
| 9 | 86386A1 |
КРОНШТЕЙН В СБОРЕ COWL SUPPORT BRACKET ASSEMBLY COWL SUPPORT |
1 | discontinued |
