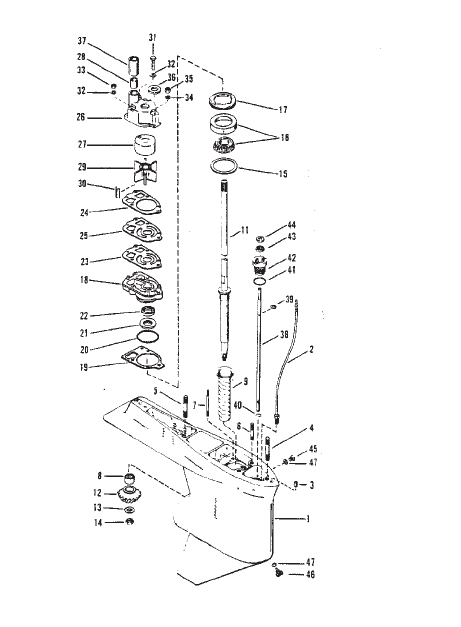

Gear Housing (Driveshaft)
Parts (61)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9148A18 |
КАРТЕР РЕДУКТОРА В СБОРЕ Стандартное вращение, передаточное число 2:1 (LONG) (BLACK) GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK) |
1 | superseded |
| - | 9148A19 |
КАРТЕР РЕДУКТОРА В СБОРЕ Стандартное вращение, передаточное число 2:1 (X-LONG) (BLACK) GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK) |
1 | superseded |
| - | 9148A20 |
КАРТЕР РЕДУКТОРА В СБОРЕ Стандартное вращение, передаточное число 2:1 (LONG) (GRAY) GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (GRAY) |
1 | superseded |
| - | 9148A21 |
КАРТЕР РЕДУКТОРА В СБОРЕ Стандартное вращение, передаточное число 2:1 (X-LONG) (GRAY) GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY) |
1 | superseded |
| - | 9148A36 |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG) (OYSTER) GEAR HOUSING ASSEMBLY (LONG) (OYSTER) |
1 | superseded |
| - | 9148A25 |
КАРТЕР РЕДУКТОРА В СБОРЕ (X-LONG) (OYSTER) GEAR HOUSING ASSEMBLY (X-LONG) (OYSTER) |
1 | superseded |
| - | 42579A4 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос REBUILD KIT Water Pump |
superseded | |
| - | 89238A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
||
| - | 90484A88 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
discontinued | |
| 1 | 9148A11 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BLACK-BASIC) GEAR HOUSING ASSEMBLY (BLACK-BASIC) |
1 | superseded |
| 1 | 9148A12 |
КАРТЕР РЕДУКТОРА В СБОРЕ (GRAY-BASIC) GEAR HOUSING ASSEMBLY (GRAY-BASIC) |
1 | superseded |
| 1 | 9148A24 |
КАРТЕР РЕДУКТОРА В СБОРЕ (OYSTER-BASIC) GEAR HOUSING ASSEMBLY (OYSTER-BASIC) |
1 | superseded |
| 11 | 44000 |
ВЕДУЩИЙ ВАЛ (LONG) DRIVESHAFT (LONG) |
1 | superseded |
| 11 | 44209 |
ВЕДУЩИЙ ВАЛ (EXTRA LONG) DRIVESHAFT (EXTRA LONG) |
1 | superseded |
| 12 | N.S.S. |
Не продается отдельно Pinion Gear (PART OF 43-44102A2) Not Sold Separate Pinion Gear (PART OF 43-44102A2) |
1 | |
| 13 | 92721 |
ШАЙБА PINION GEAR WASHER (.965 x .630) PINION GEAR |
1 | |
| 14 | 35921 |
ГАЙКА (.625-18) PINION GEAR TO DRIVE SHAFT NUT (.625-18) PINION GEAR TO DRIVE SHAFT |
1 | |
| 15 | 42637A1 |
НАБОР ПРОКЛАДОК ROLLER BEARING TO GEAR HOUSING SHIM SET ROLLER BEARING TO GEAR HOUSING |
AR | discontinued |
| 16 | 36387A1 |
БЛОК ПОДШИПНИКА Ролик/колпачок DRIVE SHAFT BEARING ASSEMBLY Roller/Cup DRIVE SHAFT |
1 | superseded |
| 17 | 42633 |
ГАЙКА DRIVE SHAFT BEARING NUT DRIVE SHAFT BEARING |
1 | superseded |
| 18 | 42579A3 |
БАЗА В СБОРЕ Водяной насос BASE ASSEMBLY Water Pump |
1 | superseded |
| 19 | 42631 |
ПРОКЛАДКА WATER PUMP TO GEAR HSG GASKET WATER PUMP TO GEAR HSG |
1 | superseded |
| 2 | 85822A1 |
СОЕДИНИТЕЛЬ В СБОРЕ SPEEDOMETER CONNECTOR ASSEMBLY SPEEDOMETER |
1 | superseded |
| 20 | 90011 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.175 x 0.175) WATER PUMP O-RING (2.175 x .175) WATER PUMP |
1 | superseded |
| 20 | 38099 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО WATER PUMP (2.109 I.D.) O-RING WATER PUMP (2.109 I.D.) |
1 | |
| 21 | 89238 |
УПЛОТНЕНИЕ Масло WATER PUMP SEAL Oil WATER PUMP |
1 | |
| 22 | 16977 |
УПЛОТНЕНИЕ Масло WATER PUMP SEAL Oil WATER PUMP |
1 | |
| 23 | 85608 |
ПРОКЛАДКА LOWER - WATER PUMP GASKET LOWER - WATER PUMP |
1 | superseded |
| 24 | 85609 |
ПРОКЛАДКА UPPER - WATER PUMP GASKET UPPER - WATER PUMP |
1 | superseded |
| 25 | 32435 |
ЦИФЕРБЛАТ FACE - WATER PUMP FACE PLATE FACE - WATER PUMP |
1 | superseded |
| 26 | 96148A1 |
КОРПУС В СБОРЕ Водяной насос BODY ASSEMBLY Water Pump |
1 | superseded |
| 27 | 48752 |
ВСТАВКА WATER PUMP BODY INSERT WATER PUMP BODY |
1 | superseded |
| 28 | 38970 |
УПЛОТНЕНИЕ RUBBER - WATER INLET TUBE SEAL RUBBER - WATER INLET TUBE |
1 | |
| 29 | 89984 |
КРЫЛЬЧАТКА WATER PUMP IMPELLER WATER PUMP |
1 | superseded |
| 3 | 20033 |
ШТИФТ Штифт GEAR HOUSING LOCATING PIN Dowel GEAR HOUSING LOCATING |
2 | superseded |
| 30 | 56654 |
КЛЮЧ IMPELLER DRIVE KEY IMPELLER DRIVE |
1 | superseded |
| 31 | 96411 |
ВИНТ (№14-8 x 2.25) WATER PUMP SCREW (#14-8 x 2.25) WATER PUMP |
1 | superseded |
| 32 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WATER PUMP SCREW AND STUD WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD |
2 | superseded |
| 33 | 13438 |
ГАЙКА (0.250-28) WATER PUMP STUD NUT (.250-28) WATER PUMP STUD |
2 | superseded |
| 34 | 36001 |
ШАЙБА WATER PUMP STUD WASHER WATER PUMP STUD |
1 | |
| 35 | 13436 |
ГАЙКА WATER PUMP STUD NUT WATER PUMP STUD |
1 | |
| 36 | 30271 |
КОЛЬЦО Резина RUBBER (DRIVE SHAFT) RING Rubber RUBBER (DRIVE SHAFT) |
1 | superseded |
| 37 | 29804 |
РУКАВ GUIDE - WATER INLET TUBE SLEEVE GUIDE - WATER INLET TUBE |
1 | superseded |
| 38 | 78902 |
ВАЛ SHIFT - LOWER SHAFT SHIFT - LOWER |
1 | superseded |
| 39 | 29641 |
Е-ОБРАЗНОЕ КОЛЬЦО RETAINING - SHIFT SHAFT E RING RETAINING - SHIFT SHAFT |
1 | |
| 4 | 78638 |
ШПИЛЬКА (0.438 x 3.12) GEAR HOUSING (LONG) STUD (.438 x 3.12) GEAR HOUSING (LONG) |
1 | superseded |
| 4 | 78639 |
ШПИЛЬКА GEAR HOUSING (9") - (EXTRA LONG) STUD GEAR HOUSING (9") - (EXTRA LONG) |
1 | discontinued |
| 40 | 78907 |
КОЛЬЦО Стопор RING Retaining |
1 | discontinued |
| 41 | 25439 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.862 x 0.103) SHIFT SHAFT BUSHING O-RING (.862 x .103) SHIFT SHAFT BUSHING |
1 | |
| 42 | 77631A2 |
ВТУЛКА В СБОРЕ SHIFT SHAFT BUSHING ASSEMBLY SHIFT SHAFT |
1 | |
| 43 | 76384 |
УПЛОТНЕНИЕ Масло SHIFT SHAFT BUSHING SEAL Oil SHIFT SHAFT BUSHING |
1 | superseded |
| 44 | 77674 |
ШАЙБА RUBBER - SHIFT SHAFT BUSHING WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING |
1 | |
| 45 | 79953 |
ВИНТ (0.375-16 x 0.250) GREASE FILLER SCREW (.375-16 x .250) GREASE FILLER |
1 | superseded |
| 46 | 67892 |
ВИНТ Магнитный DRAIN SCREW Magnetic DRAIN |
1 | superseded |
| 47 | 20260 |
ШАЙБА GREASE FILLER AND DRAIN SCREW WASHER GREASE FILLER AND DRAIN SCREW |
2 | superseded |
| 5 | 57920 |
ШПИЛЬКА (0.44 x 2.06) GEAR HOUSING (LONG) STUD (.44 x 2.06) GEAR HOUSING (LONG) |
2 | superseded |
| 5 | 74730 |
ШПИЛЬКА GEAR HOUSING (7-1/16") - (EXTRA LONG) STUD GEAR HOUSING (7-1/16") - (EXTRA LONG) |
2 | discontinued |
| 6 | 56297 |
ШПИЛЬКА (0.312 x 3.38) WATER PUMP STUD (.312 x 3.38) WATER PUMP |
1 | superseded |
| 7 | 30667 |
ШПИЛЬКА (0.250-20/0.250-28 x 3.125) WATER PUMP STUD (.250-20/.250-28 x 3.125) WATER PUMP |
2 | superseded |
| 8 | 42647A1 |
БЛОК ПОДШИПНИКА Ролик DRIVE SHAFT BEARING ASSEMBLY Roller DRIVE SHAFT |
1 | |
| 9 | 43998 |
РУКАВ LUBRICATION SLEEVE LUBRICATION |
1 | discontinued |
