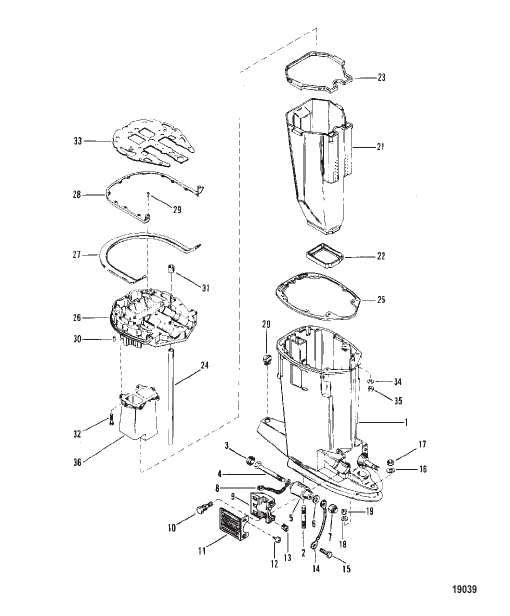

Driveshaft Housing and Exhaust Tube
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 90484A88 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
discontinued | |
| 1 | 8343A7 |
КОРПУС В СБОРЕ Карданный вал (BLACK) HOUSING ASSEMBLY Driveshaft (BLACK) |
1 | discontinued |
| 1 | 8343A8 |
КОРПУС В СБОРЕ Карданный вал (GRAY) HOUSING ASSEMBLY Driveshaft (GRAY) |
1 | discontinued |
| 1 | 8343A9 |
КОРПУС В СБОРЕ Карданный вал (OYSTER) HOUSING ASSEMBLY Driveshaft (OYSTER) |
1 | superseded |
| 10 | 66727 |
ВИНТ (0.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING |
4 | |
| 11 | 67077 |
КРЫШКА LOWER MOUNT CLAMP (BLACK) COVER LOWER MOUNT CLAMP (BLACK) |
2 | superseded |
| 11 | 67077T6 |
КРЫШКА LOWER MOUNT CLAMP (GRAY) COVER LOWER MOUNT CLAMP (GRAY) |
2 | superseded |
| 11 | 67077T10 |
КРЫШКА LOWER MOUNT CLAMP (OYSTER) COVER LOWER MOUNT CLAMP (OYSTER) |
2 | superseded |
| 12 | 88417 |
ВИНТ (№12-24 x 0.620) COVER ATTACHING SCREW (#12-24 x .620) COVER ATTACHING |
4 | |
| 13 | 35521 |
ГАЙКА NYLON - COVER TO CLAMP SCREW NUT NYLON - COVER TO CLAMP SCREW |
4 | |
| 14 | 88238A2 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | superseded |
| 15 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь GROUND WIRE SCREW (.250-20 x .500) Stainless Steel GROUND WIRE |
1 | |
| 16 | 73862 |
ШАЙБА GEAR HOUSING STUD WASHER GEAR HOUSING STUD |
1 | discontinued |
| 17 | 29489 |
ГАЙКА GEAR HOUSIG STUD (CAP) NUT GEAR HOUSIG STUD (CAP) |
1 | discontinued |
| 18 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь GEAR HOUSING STUD WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD |
2 | |
| 19 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь GEAR HOUSING STUD NUT (.437-20) Stainless Steel GEAR HOUSING STUD |
2 | superseded |
| 2 | 56295 |
ШПИЛЬКА (0.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG. (LONG) STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG. (LONG) |
2 | |
| 2 | 74732 |
ШПИЛЬКА DRIVE SHAFT HSG./GEAR HSG. (EXTRA LONG) STUD DRIVE SHAFT HSG./GEAR HSG. (EXTRA LONG) |
2 | discontinued |
| 20 | 64649 |
ПРОБКА DRIVE SHAFT HOUSING (BLACK & GRAY) PLUG DRIVE SHAFT HOUSING (BLACK & GRAY) |
1 | |
| 20 | 646491 |
ПРОБКА DRIVE SHAFT HOUSING (OYSTER) PLUG DRIVE SHAFT HOUSING (OYSTER) |
1 | discontinued |
| 21 | 89743 |
ТРУБА Выхлоп TUBE Exhaust |
1 | discontinued |
| 22 | 66350 |
УПЛОТНЕНИЕ EXHAUST TUBE - LOWER SEAL EXHAUST TUBE - LOWER |
1 | superseded |
| 23 | 86027 |
УПЛОТНЕНИЕ EXHAUST TUBE - UPPER SEAL EXHAUST TUBE - UPPER |
1 | |
| 24 | 67295 |
ТРУБА Вода WATER (LONG SHAFT) TUBE Water WATER (LONG SHAFT) |
1 | superseded |
| 24 | 74729 |
ТРУБА WATER (EXTRA LONG SHAFT) TUBE WATER (EXTRA LONG SHAFT) |
1 | superseded |
| 25 | 99173 |
ПРОКЛАДКА DRIVE SHAFT HOUSING TO PLATE GASKET DRIVE SHAFT HOUSING TO PLATE |
1 | superseded |
| 26 | 41945A6 |
ПЛАСТИНА В СБОРЕ DRIVE SHAFT HOUSING PLATE ASSEMBLY DRIVE SHAFT HOUSING |
1 | discontinued |
| 27 | 707482 |
УПЛОТНЕНИЕ BRACKET (BLACK & GRAY) SEAL BRACKET (BLACK & GRAY) |
1 | discontinued |
| 28 | 68011 |
КРОНШТЕЙН SEAL RETAINING (BLACK & GRAY) BRACKET SEAL RETAINING (BLACK & GRAY) |
1 | |
| 29 | 48408 |
ВИНТ (№10-16 x 0.500) BRACKET TO PLATE (BLACK & GRAY) SCREW (#10-16 x .500) BRACKET TO PLATE (BLACK & GRAY) |
12 | |
| 3 | 25067 |
УПОР LOWER MOUNT SCREW BUMPER LOWER MOUNT SCREW |
2 | discontinued |
| 30 | 20033 |
ШТИФТ Штифт LOCATING PIN Dowel LOCATING |
2 | superseded |
| 31 | 38970 |
УПЛОТНЕНИЕ WATER TUBE SEAL WATER TUBE |
1 | |
| 32 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь EXTENSION TO PLATE SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE |
6 | |
| 33 | 99177 |
ПРОКЛАДКА DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE GASKET DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE |
1 | superseded |
| 34 | 25970 |
ШАЙБА POWER HEAD STUD WASHER POWER HEAD STUD |
4 | superseded |
| 35 | 69254 |
ГАЙКА POWER HEAD STUD NUT POWER HEAD STUD |
4 | |
| 36 | 41942 |
УДЛИНИТЕЛЬ EXHAUST EXTENSION EXHAUST |
1 | superseded |
| 36 | 78148A1 |
ПРОСТАВКА В СБОРЕ (EXTRA LONG) SPACER ASSEMBLY (EXTRA LONG) |
1 | discontinued |
| 36 | 20033 |
ШТИФТ Штифт LOCATING - SPACER - (EXTRA LONG) PIN Dowel LOCATING - SPACER - (EXTRA LONG) |
2 | superseded |
| 4 | 63474 |
ВИНТ (0.500-20 x 6.00) LOWER MOUNT SCREW (.500-20 x 6.00) LOWER MOUNT |
2 | superseded |
| 5 | 78249 |
КРЕПЛЕНИЕ LOWER MOUNT LOWER |
2 | discontinued |
| 6 | 49339 |
ШАЙБА (0.8125) LOWER MOUNT SCREW WASHER (.8125) LOWER MOUNT SCREW |
2 | |
| 7 | 25096 |
ГАЙКА LOWER MOUNST SCREW NUT LOWER MOUNST SCREW |
2 | discontinued |
| 8 | 88238A1 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | superseded |
| 9 | 67076 |
ЗАЖИМ LOWER MOUNT CLAMP LOWER MOUNT |
2 | superseded |
