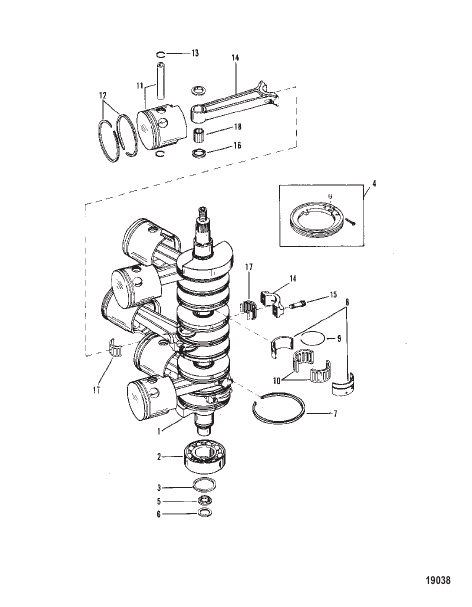

Crankshaft, Pistons and Connecting Rods
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8745A5 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ (INCLUDES 8 OF 39-67377) CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377) |
1 | superseded |
| 10 | 67445 |
ПОДШИПНИК Ролик RETAINED BEARING (PLASTIC CAGE) BEARING Roller RETAINED BEARING (PLASTIC CAGE) |
2 | |
| 11 | 7441A3 |
ПОРШЕНЬ В СБОРЕ (STARBOARD-STANDARD) PISTON ASSEMBLY (STARBOARD-STANDARD) |
3 | superseded |
| 11 | 7443A2 |
ПОРШЕНЬ В СБОРЕ (STARBOARD - .015 O.S.) PISTON ASSEMBLY (STARBOARD - .015 O.S.) |
AR | superseded |
| 11 | 7445A2 |
ПОРШЕНЬ В СБОРЕ (STARBOARD-.030 O.S.) PISTON ASSEMBLY (STARBOARD-.030 O.S.) |
AR | superseded |
| 11 | 7442A3 |
ПОРШЕНЬ В СБОРЕ (PORT-STANDARD) PISTON ASSEMBLY (PORT-STANDARD) |
3 | superseded |
| 11 | 7444A2 |
ПОРШЕНЬ В СБОРЕ (PORT-.015 O.S.) PISTON ASSEMBLY (PORT-.015 O.S.) |
AR | superseded |
| 11 | 7446A2 |
ПОРШЕНЬ В СБОРЕ (PORT-.030 O.S.) PISTON ASSEMBLY (PORT-.030 O.S.) |
AR | superseded |
| 12 | 93481A12 |
НАБОР КОЛЕЦ Поршень – стандартный (STANDARD) RING SET Piston - Standard (STANDARD) |
1 | |
| 12 | 78918A4 |
НАБОР КОЛЕЦ Поршень – большой размер 0.015 (.015 O.S.) RING SET Piston - .015 Oversize (.015 O.S.) |
AR | discontinued |
| 12 | 85636A4 |
НАБОР КОЛЕЦ Поршень – большой размер 0.030 (.030 O.S.) RING SET Piston - .030 Oversize (.030 O.S.) |
AR | |
| 13 | 52035 |
КОЛЬЦО Замок RING Lock |
12 | superseded |
| 14 | 8119A5 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ CONNECTING ROD ASSEMBLY |
6 | superseded |
| 15 | 93886 |
ВИНТ (0.312-28 x 0.875) CONNECTING ROD SCREW (.312-28 x .875) CONNECTING ROD |
12 | |
| 16 | 47247 |
ШАЙБА NEEDLE LOCATING WASHER NEEDLE LOCATING |
12 | superseded |
| 17 | 17514A1 |
КОМПЛЕКТ ПОДШИПНИКОВ BEARING KIT |
6 | superseded |
| 18 | 67483 |
ПОДШИПНИК Игла PISTON END BEARING Needle PISTON END |
174 | |
| 2 | 67923 |
ПОДШИПНИК Шарик CRANKSHAFT (LOWER) BEARING Ball CRANKSHAFT (LOWER) |
1 | superseded |
| 3 | 67446 |
КОЛЬЦО BALL BEARING RING BALL BEARING |
1 | |
| 4 | 99727A1 |
ПЕРЕДАЧА Привод GEAR Drive |
1 | |
| 5 | 54196A6 |
СТАКАН В СБОРЕ SEAL CARRIER ASSEMBLY SEAL |
1 | |
| 6 | 65800 |
УПАКОВКА CARRIER PACKING CARRIER |
1 | |
| 7 | 67377 |
КОЛЬЦО Уплотнение SEALING - CRANKSHAFT (.124 THICK) RING Sealing SEALING - CRANKSHAFT (.124 THICK) |
AR | superseded |
| 7 | 78633 |
КОЛЬЦО SEALING - CRANKSHAFT (.139 THICK) RING SEALING - CRANKSHAFT (.139 THICK) |
AR | discontinued |
| 8 | 88903 |
ПОДШИПНИК Ролик RETAINED BEARING (PLASTIC CAGE) BEARING Roller RETAINED BEARING (PLASTIC CAGE) |
2 | superseded |
| 8 | 93495 |
ПОДШИПНИК Ролик LOOSE BEARING (METAL CAGE) BEARING Roller LOOSE BEARING (METAL CAGE) |
2 | superseded |
| 9 | 67444 |
КОЛЬЦО Стопор RETAINED BEARING (PLASTIC CAGE) RING Retaining RETAINED BEARING (PLASTIC CAGE) |
2 | discontinued |
| 9 | 67444 |
КОЛЬЦО Стопор LOOSE BEARING (METAL CAGE) RING Retaining LOOSE BEARING (METAL CAGE) |
2 | discontinued |
