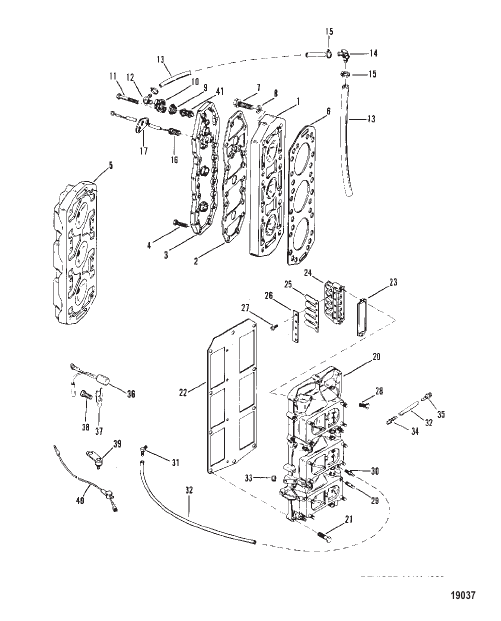

Reed Block and Cylinder Head
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 90484A88 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
discontinued | |
| 1 | 96423 |
ГОЛОВКА ЦИЛИНДРА (2 PIECE DESIGN) CYLINDER HEAD (2 PIECE DESIGN) |
2 | superseded |
| 10 | 90390A1 |
КОМПЛЕКТ КРЫШЕК THERMOSTAT COVER KIT THERMOSTAT |
2 | |
| 11 | 77065 |
ВИНТ (0.312-18 x 2) THERMOSTAT COVER (NOT USED W/REF. #5) SCREW (.312-18 x 2) THERMOSTAT COVER (NOT USED W/REF. #5) |
2 | superseded |
| 11 | 35386 |
ВИНТ (0.312-18 x 1.00) THERMOSTAT COVER (QTY OF 4 W/REF.#5) SCREW (.312-18 x 1.00) THERMOSTAT COVER (QTY OF 4 W/REF.#5) |
2 | |
| 12 | 68727 |
ФИТИНГ (0.250-18), 90 градусов – латунь ELBOW - WATER HOSES FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES |
1 | superseded |
| 13 | 7765377 |
РУКАВ (Общая длина 24.500") WATER DISTRIBUTION HOSE (24.500 Inches Bulk) WATER DISTRIBUTION |
2 | superseded |
| 14 | 68728 |
ФИТИНГ THE THERMOSTAT COVER TO WATER HOSES FITTING THE THERMOSTAT COVER TO WATER HOSES |
1 | discontinued |
| 15 | 73498 |
ЗАЖИМ WATER HOSES CLAMP WATER HOSES |
4 | superseded |
| 16 | 97465 |
ДАТЧИК Температура (STARBOARD) SENDER Temperature (STARBOARD) |
1 | |
| 17 | 96282 |
КРЫШКА TEMPERATURE SENDER (NOT USED W/REF. #5) COVER TEMPERATURE SENDER (NOT USED W/REF. #5) |
1 | discontinued |
| 2 | 96278 |
ПРОКЛАДКА CYLINDER COVER - (2 PIECE DESIGN) GASKET CYLINDER COVER - (2 PIECE DESIGN) |
2 | |
| 20 | 99747A2 |
КОРПУС REED BLOCK (USE W/OLD DESIGN FUEL PUMP) HOUSING REED BLOCK (USE W/OLD DESIGN FUEL PUMP) |
1 | discontinued |
| 20 | 99747A9 |
КОРПУС REED BLOCK (USE W/SQUARE FUEL PUMP) HOUSING REED BLOCK (USE W/SQUARE FUEL PUMP) |
1 | discontinued |
| 21 | 24878 |
ВИНТ (0.250-20 x 1.25) REED BLOCK HOUSING SCREW (.250-20 x 1.25) REED BLOCK HOUSING |
1 | discontinued |
| 21 | 69093 |
ВИНТ (0.250-20 x 1.50) REED BLOCK HOUSING SCREW (.250-20 x 1.50) REED BLOCK HOUSING |
8 | discontinued |
| 21 | 69067 |
ВИНТ (0.250-20 x 1.375) REED BLOCK HOUSING SCREW (.250-20 x 1.375) REED BLOCK HOUSING |
1 | |
| 22 | 93536 |
ПРОКЛАДКА REED BLOCK HOUSING GASKET REED BLOCK HOUSING |
1 | superseded |
| 23 | 65744 |
ПРОКЛАДКА REED BLOCK GASKET REED BLOCK |
6 | superseded |
| 24 | 75953 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ REED BLOCK |
6 | |
| 25 | 75362A1 |
ПЛАСТИНЫ В СБОРЕ REED ASSEMBLY |
6 | discontinued |
| 26 | 96183 |
ЗАЖИМ Пластинчатый клапан CLAMP Reed |
12 | superseded |
| 27 | 57583 |
ВИНТ (№8-32 x .375) REEDS TO REED BLOCK SCREW (#8-32 x .375) REEDS TO REED BLOCK |
60 | superseded |
| 28 | 65746 |
ВИНТ (0.250-20 x 0.750) REED BLOCK ATTACHING SCREW (.250-20 x .750) REED BLOCK ATTACHING |
12 | |
| 29 | 27037 |
ШПИЛЬКА (0.250-28 x 1.125) CARBURETOR MOUNTING STUD (.250-28 x 1.125) CARBURETOR MOUNTING |
12 | superseded |
| 3 | 96283T |
КРЫШКА CYLINDER - (2 PIECE DESIGN) COVER CYLINDER - (2 PIECE DESIGN) |
2 | superseded |
| 30 | 42658 |
ОБРАТНЫЙ КЛАПАН BLEED HOSE TO REED BLOCK HOUSING CHECK VALVE BLEED HOSE TO REED BLOCK HOUSING |
5 | superseded |
| 31 | 15133 |
ФИТИНГ BLEED HOSE TO CYLINDER BLOCK (90 DEGREES) FITTING BLEED HOSE TO CYLINDER BLOCK (90 DEGREES) |
5 | |
| 32 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) BLEED LINE TUBING (20.00 Feet Bulk) BLEED LINE |
1 | superseded |
| 33 | 42657A1 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | superseded |
| 34 | 65857 |
СОЕДИНИТЕЛЬ BLEED HOSE (PRESS-IN) CONNECTOR BLEED HOSE (PRESS-IN) |
1 | superseded |
| 35 | 64871A2 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | discontinued |
| 36 | 13536A7 |
ДАТЧИК В СБОРЕ Температура (PORT) (BLACK/GRAY) USED WITH REF. #5 REF. #36 IS USED WITH ENGINE TEMP. GUAGE (PORT) SENDERS MOUNTED ON STBD. ARE WORKING FOR WARNING HORNS: PORT MOUNTED ARE FOR TEMP. GUAGE. SENSOR ASSEMBLY Temperature (PORT) (BLACK/GRAY) USED WITH REF. #5 REF. #36 IS USED WITH ENGINE TEMP. GUAGE (PORT) SENDERS MOUNTED ON STBD. ARE WORKING FOR WARNING HORNS: PORT MOUNTED ARE FOR TEMP. GUAGE. |
1 | |
| 37 | 13715 |
ФИКСАТОР (QTY. OF 1 W/OYSTER) USED WITH REF. #5 RETAINER (QTY. OF 1 W/OYSTER) USED WITH REF. #5 |
2 | superseded |
| 38 | 98257 |
ВИНТ (0.312-18 x 0.500) (QTY. OF 1 W/OYSTER)(USED WITH REF. #5) SCREW (.312-18 x .500) (QTY. OF 1 W/OYSTER)(USED WITH REF. #5) |
2 | |
| 39 | 187531 |
ДАТЧИК Температура (OYSTER) SENDER Temperature (OYSTER) |
1 | discontinued |
| 4 | 74824 |
ВИНТ (0.312-18 x 1.250) CYLINDER COVER - (2 PIECE DESIGN) SCREW (.312-18 x 1.250) CYLINDER COVER - (2 PIECE DESIGN) |
40 | |
| 40 | 88824A8 |
КАБЕЛЬ В СБОРЕ TEMPERATURE SENDER - (OYSTER) CABLE ASSEMBLY TEMPERATURE SENDER - (OYSTER) |
1 | discontinued |
| 41 | 75692 |
ТЕРМОСТАТ THERMOSTAT |
2 | |
| 5 | 184191 |
ГОЛОВКА ЦИЛИНДРА (1 PIECE DESIGN) CYLINDER HEAD (1 PIECE DESIGN) |
2 | superseded |
| 6 | 96542 |
ПРОКЛАДКА CYLINDER HEAD GASKET CYLINDER HEAD |
2 | superseded |
| 7 | 98534 |
ВИНТ (0.375-16 x 2.30) CYLINDER HEAD SCREW (.375-16 x 2.30) CYLINDER HEAD |
24 | discontinued |
| 8 | 25909 |
ШАЙБА (0.406 x 0.812 x 0.065) CYLINDER HEAD SCREW WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW |
24 | |
| 9 | 62386 |
ПРОКЛАДКА GASKET |
2 | superseded |
