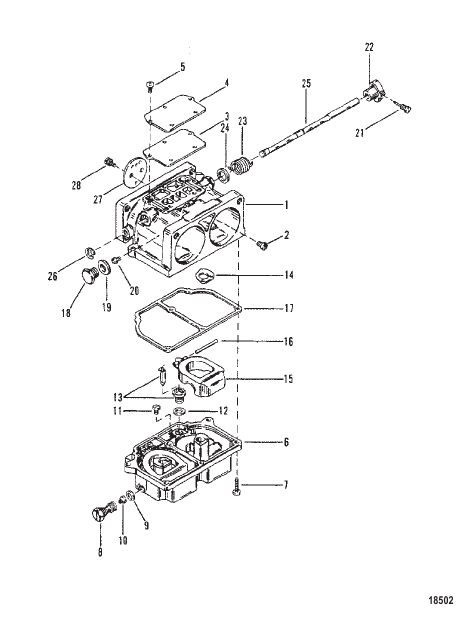

Carburetor
Parts (53)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 6452 |
КОМПЛЕКТ ПРОКЛАДОК GASKET KIT |
1 | |
| - | 8506 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор (WH-33) (WH-40) REPAIR KIT Carburetor (WH-33) (WH-40) |
1 | |
| - | 7826 |
РЕМОНТНЫЙ КОМПЛЕКТ (WH-32)(WH-35)(WH-38) REPAIR KIT (WH-32)(WH-35)(WH-38) |
1 | |
| 1 | 9242A33 |
КАРБЮРАТОР (TOP) (WH-40) CARBURETOR (TOP) (WH-40) |
1 | discontinued |
| 1 | 9242A34 |
КАРБЮРАТОР (CENTER) (WH-40) CARBURETOR (CENTER) (WH-40) |
1 | discontinued |
| 1 | 9242A35 |
КАРБЮРАТОР (BOTTOM) ( WH-40) CARBURETOR (BOTTOM) ( WH-40) |
1 | discontinued |
| 1 | 7563A10 |
КАРБЮРАТОР (TOP) (WH-35) CARBURETOR (TOP) (WH-35) |
1 | discontinued |
| 1 | 7563A11 |
КАРБЮРАТОР (CENTER) (WH-35) CARBURETOR (CENTER) (WH-35) |
1 | discontinued |
| 1 | 7563A12 |
КАРБЮРАТОР (BOTTOM) (WH-35) CARBURATOR (BOTTOM) (WH-35) |
1 | discontinued |
| 1 | 7563A13 |
КАРБЮРАТОР (TOP) (WH-38) CARBURETOR (TOP) (WH-38) |
1 | discontinued |
| 1 | 7563A14 |
КАРБЮРАТОР (CENTER) (WH-38) CARBURETOR (CENTER) (WH-38) |
1 | discontinued |
| 1 | 7563A15 |
КАРБЮРАТОР (BOTTOM) (WH-38) CARBURETOR (BOTTOM) (WH-38) |
1 | discontinued |
| 10 | 4216 |
ВОДОМЕТНЫЙ (0.064) MAIN FUEL (WH-33) JET (.064) MAIN FUEL (WH-33) |
6 | |
| 10 | 6246 |
ВОДОМЕТНЫЙ (0.048) MAIN FUEL (WH-32) JET (.048) MAIN FUEL (WH-32) |
6 | |
| 10 | 6028 |
ВОДОМЕТНЫЙ (0.050) MAIN FUEL (WH-35) JET (.050) MAIN FUEL (WH-35) |
6 | |
| 10 | 6359 |
ВОДОМЕТНЫЙ (0.052) MAIN FUEL (WH-38) JET (.052) MAIN FUEL (WH-38) |
6 | |
| 10 | 6201 |
ВОДОМЕТНЫЙ (0.080) MAIN FUEL (WH-40) JET (.080) MAIN FUEL (WH-40) |
6 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-Float Pin NOT SOLD SEPARATE Screw-Float Pin |
6 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket--Inlet Needle and Seat NOT SOLD SEPARATE Gasket--Inlet Needle and Seat |
6 | |
| 13 | 7824 |
ИГЛА/СЕДЛО В СБОРЕ Впуск NEEDLE/SEAT ASSEMBLY Inlet |
6 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Nozzle Boss NOT SOLD SEPARATE Gasket-Nozzle Boss |
6 | |
| 15 | 9267 |
ПОПЛАВОК FLOAT |
6 | discontinued |
| 16 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pin-Float Lever NOT SOLD SEPARATE Pin-Float Lever |
6 | |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Fuel Bowl NOT SOLD SEPARATE Gasket-Fuel Bowl |
3 | |
| 18 | 4541 |
ВИНТ IDLE AIR BLEED JET SCREW IDLE AIR BLEED JET |
6 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Bleed Jet Plug NOT SOLD SEPARATE Gasket-Bleed Jet Plug |
6 | |
| 2 | 6249 |
ВОДОМЕТНЫЙ Главн. (0.096) FUEL BOWL(WH-32) (WH-38) JET Main (.096) FUEL BOWL(WH-32) (WH-38) |
6 | |
| 2 | 8423 |
ВОДОМЕТНЫЙ (0.094) FUEL BOWL (.094) (WH-35) JET (.094) FUEL BOWL (.094) (WH-35) |
6 | discontinued |
| 2 | 6680 |
ВОДОМЕТНЫЙ (0.078) FUEL BOWL (WH-40) JET (.078) FUEL BOWL (WH-40) |
6 | |
| 20 | 5213 |
ВОДОМЕТНЫЙ Главн. (0.056) IKLE AIR BLEED (WH-33) JET Main (.056) IKLE AIR BLEED (WH-33) |
6 | |
| 20 | 7831 |
ВОДОМЕТНЫЙ Главн. топл. (0.058) IDLE AIR BLEED (.058) (WH-32) JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32) |
6 | |
| 20 | 6487 |
ВОДОМЕТНЫЙ Главн. (0.060) IKLE AIR BLEED (WH-35) JET Main (.060) IKLE AIR BLEED (WH-35) |
6 | |
| 20 | 5317 |
ВОДОМЕТНЫЙ (0.046) IDLE AIR BLEED (WH-38) JET (.046) IDLE AIR BLEED (WH-38) |
6 | |
| 20 | 6246 |
ВОДОМЕТНЫЙ (0.048) IDLE AIR BLEED (WH-40) JET (.048) IDLE AIR BLEED (WH-40) |
6 | |
| 21 | 6027 |
ВИНТ THROTTLE LEVER SCREW THROTTLE LEVER |
3 | discontinued |
| 22 | 67752 |
РЫЧАГ THROTTLE LEVER THROTTLE |
3 | discontinued |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring-Throttle Return NOT SOLD SEPARATE Spring-Throttle Return |
3 | |
| 24 | 6031 |
ПРОСТАВКА THROTTLE LEVER SPACER THROTTLE LEVER |
3 | discontinued |
| 25 | 6022 |
ВАЛ THROTTLE SHAFT THROTTLE |
3 | discontinued |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Ring-Retainer-Throttle Shaft NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft |
3 | |
| 27 | 6023 |
КЛАПАН Дроссельная заслонка (WH-33) (WH-40) VALVE Throttle (WH-33) (WH-40) |
6 | discontinued |
| 27 | 9496 |
КЛАПАН Дроссельная заслонка (WH-32) VALVE Throttle (WH-32) |
6 | discontinued |
| 27 | 9545 |
КЛАПАН Дроссельная заслонка (WH-38) (WH-35) VALVE Throttle (WH-38) (WH-35) |
6 | discontinued |
| 28 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-Throttle Valve NOT SOLD SEPARATE Screw-Throttle Valve |
12 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Cover Plate NOT SOLD SEPARATE Gasket-Cover Plate |
3 | |
| 4 | 6032 |
ПЛАСТИНА COVER PLATE COVER |
3 | discontinued |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-Cover Plate NOT SOLD SEPARATE Screw-Cover Plate |
15 | |
| 6 | 7822 |
КАМЕРА Топливо (WH-33) BOWL Fuel (WH-33) |
3 | discontinued |
| 6 | 7823 |
КАМЕРА Топливо (TOP) (WH-32, WH-38, WH-35, WH-40) BOWL Fuel (TOP) (WH-32, WH-38, WH-35, WH-40) |
1 | discontinued |
| 6 | 7822 |
КАМЕРА Топливо (CENTER/BOTTOM) (WH-32, WH-38, WH-35, WH-40) BOWL Fuel (CENTER/BOTTOM) (WH-32, WH-38, WH-35, WH-40) |
2 | discontinued |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-Fuel Bowl NOT SOLD SEPARATE Screw-Fuel Bowl |
18 | |
| 8 | 6025 |
ПРОБКА MAIN JET PLUG MAIN JET |
6 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Main Jet NOT SOLD SEPARATE Gasket-Main Jet |
6 |
