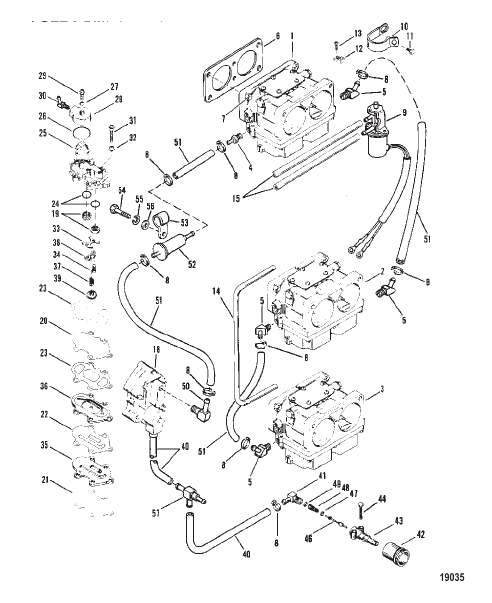

Fuel Pump (Old Design Fuel Pump)
Parts (61)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 90484A88 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
discontinued | |
| 1 | 7563A10 |
КАРБЮРАТОР (TOP) - (WH-35) CARBURETOR (TOP) - (WH-35) |
1 | discontinued |
| 1 | 9242A33 |
КАРБЮРАТОР (TOP) - (WH-40) CARBURETOR (TOP) - (WH-40) |
1 | discontinued |
| 1 | 7563A13 |
КАРБЮРАТОР (TOP) - (WH-38) CARBURETOR (TOP) - (WH-38) |
1 | discontinued |
| 10 | 633001 |
ЗАЖИМ ENRICHNER VALVE CLAMP ENRICHNER VALVE |
1 | discontinued |
| 11 | 69079 |
ВИНТ (№10-16 x 0.440) VALVE CLAMP SCREW (#10-16 x .440) VALVE CLAMP |
1 | |
| 12 | 45915 |
КЛЕММНАЯ КОЛОДКА REED BLOCK HOUSING TERMINAL BLOCK REED BLOCK HOUSING |
2 | |
| 13 | 35519 |
ВИНТ (№10-16 x 0.500) TERMINAL BLOCK ATTACHING SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING |
2 | discontinued |
| 14 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) TOP CARBURETOR TO VALVE (7-3/4") TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4") |
1 | superseded |
| 15 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") CARBURETOR TO CARBURETOR (4-1/4") TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4") |
2 | |
| 18 | 13453A1 |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | discontinued |
| 19 | 30430A8 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | |
| 2 | 7563A11 |
КАРБЮРАТОР (CENTER) - (WH-35) CARBURETOR (CENTER) - (WH-35) |
1 | discontinued |
| 2 | 9242A34 |
КАРБЮРАТОР (CENTER) - (WH-40) CARBURETOR (CENTER) - (WH-40) |
1 | discontinued |
| 2 | 7563A14 |
КАРБЮРАТОР (CENTER) - (WH-38) CARBURETOR (CENTER) - (WH-38) |
1 | discontinued |
| 20 | 89031A2 |
ДИАФРАГМА В СБОРЕ DIAPHRAGM ASSEMBLY |
1 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket NOT SOLD SEPARATE Gasket |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Pulse Chamber NOT SOLD SEPARATE Gasket-Pulse Chamber |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Fuel Pump NOT SOLD SEPARATE Gasket-Fuel Pump |
2 | |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Check Valve to Housing NOT SOLD SEPARATE Gasket-Check Valve to Housing |
2 | |
| 25 | 59072 |
ЭКРАН FUEL INLET SCREEN FUEL INLET |
1 | |
| 26 | 35480 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.237 x 0.103) FUEL INLET COVER O-RING (1.237 x .103) FUEL INLET COVER |
1 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Cover Attaching Screw NOT SOLD SEPARATE Gasket-Cover Attaching Screw |
1 | |
| 28 | 91078A1 |
КРЫШКА В СБОРЕ FUEL FILTER COVER ASSEMBLY FUEL FILTER |
1 | discontinued |
| 29 | 89766 |
ВИНТ (№10-32 x 0.620), нержавеющая сталь FUEL FILTER COVER SCREW (#10-32 x .620) Stainless Steel FUEL FILTER COVER |
1 | |
| 3 | 7563A12 |
КАРБЮРАТОР (BOTTOM) - (WH-35) CARBURATOR (BOTTOM) - (WH-35) |
1 | discontinued |
| 3 | 9242A35 |
КАРБЮРАТОР (BOTTOM) - (WH-40) CARBURETOR (BOTTOM) - (WH-40) |
1 | discontinued |
| 3 | 7563A15 |
КАРБЮРАТОР (BOTTOM) - (WH-38) CARBURETOR (BOTTOM) - (WH-38) |
1 | discontinued |
| 30 | 70007 |
ФИТИНГ 45 градусов INLET FUEL LINE FITTING 45 Degree INLET FUEL LINE |
1 | |
| 31 | 73013 |
ВИНТ 10-32 x 1.50 FUEL PUMP SCREW 10-32 x 1.50 FUEL PUMP |
5 | discontinued |
| 32 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь FUEL PUMP SCREW LOCKWASHER (#10) Stainless Steel FUEL PUMP SCREW |
5 | |
| 33 | 23004 |
ФИКСАТОР CHECK VALVE RETAINER CHECK VALVE |
1 | discontinued |
| 34 | 43723 |
ВИНТ (№6-32 x 0.500) RETAINER ATTACHING SCREW (#6-32 x .500) RETAINER ATTACHING |
2 | discontinued |
| 35 | 67623 |
БАЗА FUEL PUMP BASE FUEL PUMP |
1 | discontinued |
| 36 | 86449 |
КАМЕРА PULSE - FUEL PUMP CHAMBER PULSE - FUEL PUMP |
1 | discontinued |
| 37 | 86207 |
ПРУЖИНА COMPRESSION SPRING COMPRESSION |
1 | |
| 38 | 86026 |
ФИКСАТОР SPRING RETAINER SPRING |
1 | discontinued |
| 39 | 86252 |
ПРОБКА SPRING END CAP SPRING END |
1 | |
| 4 | 6232 |
ФИТИНГ FUEL INLET FITTING FUEL INLET |
1 | discontinued |
| 40 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") INLET LINE (57.00 Inches Bulk) INLET |
1 | superseded |
| 41 | 92007 |
ФИТИНГ (.250-18) FUEL LINE (90 DEGREES) FITTING (.250-18) FUEL LINE (90 DEGREES) |
1 | superseded |
| 42 | 92037 |
УПЛОТНЕНИЕ ADAPTOR SEAL ADAPTOR |
1 | discontinued |
| 43 | 30186 |
ПЕРЕХОДНИК CHECK UNIT ADAPTER CHECK UNIT |
1 | discontinued |
| 44 | 69067 |
ВИНТ (0.250-20 x 1.375) ADAPTOR TO BRACKET SCREW (.250-20 x 1.375) ADAPTOR TO BRACKET |
1 | |
| 46 | 30187 |
ШТОК CHECK UNIT ADAPTOR STEM CHECK UNIT ADAPTOR |
1 | discontinued |
| 47 | 20415 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО ADAPTOR STEM O-RING ADAPTOR STEM |
1 | superseded |
| 48 | 30189 |
ПРУЖИНА ADAPTOR STEM SPRING ADAPTOR STEM |
1 | |
| 49 | 30188 |
ШАЙБА ADAPTOR WASHER ADAPTOR |
1 | |
| 5 | 70007 |
ФИТИНГ 45 градусов FUEL INLET FITTING 45 Degree FUEL INLET |
4 | |
| 50 | 64704 |
ФИТИНГ FUEL PUMP FITTING FUEL PUMP |
1 | superseded |
| 51 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") LINE (57.00 Inches Bulk) |
1 | superseded |
| 52 | 16494 |
ФИЛЬТР Топливо FILTER Fuel |
1 | superseded |
| 53 | 26404 |
ЗАЖИМ FUEL FILTER CLAMP FUEL FILTER |
1 | discontinued |
| 54 | 78291 |
ВИНТ (0.190-24 x 0.500) CLAMP SCREW (.190-24 x .500) CLAMP |
1 | |
| 55 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь CLAMP SCREW LOCKWASHER (#10) Stainless Steel CLAMP SCREW |
1 | |
| 56 | 69205 |
C-ШАЙБА CLAMP SCREW C WASHER CLAMP SCREW |
1 | superseded |
| 57 | 42425 |
ТРОЙНИК TEE |
1 | discontinued |
| 6 | 90430 |
ПРОКЛАДКА CARBURETOR GASKET CARBURETOR |
3 | superseded |
| 7 | 20184 |
ГАЙКА (1/4-28X7/32) CARBURETOR MOUNTING NUT (1/4-28X7/32) CARBURETOR MOUNTING |
12 | superseded |
| 8 | 73498 |
ЗАЖИМ FUEL HOSE TO CARBURETOR CLAMP FUEL HOSE TO CARBURETOR |
AR | superseded |
| 9 | 42859A2 |
КЛАПАН В СБОРЕ Обогатитель ENRICHNER VALVE ASSEMBLY Enrichner ENRICHNER |
1 |
