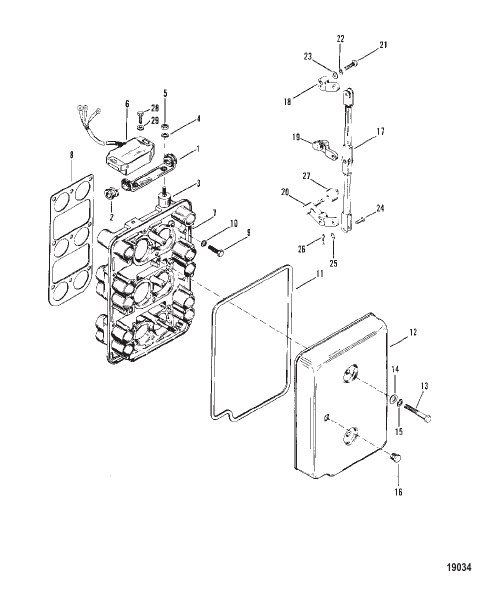

Choke Plate and Throttle Levers
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 90484A88 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
discontinued | |
| 1 | 67245T |
КРОНШТЕЙН COWL MOUNTING - UPPER (BLACK/GRAY) BRACKET COWL MOUNTING - UPPER (BLACK/GRAY) |
1 | discontinued |
| 10 | 20583 |
ШАЙБА CHOKE PLATE SCREW WASHER CHOKE PLATE SCREW |
6 | |
| 11 | 67275 |
ПРОКЛАДКА COVER GASKET COVER |
1 | superseded |
| 12 | 67246T |
КРЫШКА INDUCTION SILENCER COVER INDUCTION SILENCER |
1 | discontinued |
| 13 | 30720 |
ВИНТ (0.250-20 x 2.25) COVER TO CHOKE PLATE SCREW (.250-20 x 2.25) COVER TO CHOKE PLATE |
2 | discontinued |
| 14 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь COVER SCREW WASHER (.281 x .500 x .060) Stainless Steel COVER SCREW |
2 | superseded |
| 15 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь COVER SCREW LOCKWASHER (.250) Stainless Steel COVER SCREW |
2 | |
| 16 | 90585 |
ПРОБКА INDUCTION SILENCER COVER PLUG INDUCTION SILENCER COVER |
1 | discontinued |
| 17 | 67760 |
СОЕДИНИТЕЛЬ Дроссельная заслонка LINK Throttle |
1 | discontinued |
| 18 | 67759 |
РЫЧАГ Дроссельная заслонка UPPER LEVER Throttle UPPER |
1 | discontinued |
| 19 | 41049 |
РЫЧАГ Дроссельная заслонка CENTER LEVER Throttle CENTER |
1 | discontinued |
| 2 | 67272 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО COWL MOUNTING BRACKET (BLACK/GRAY) GROMMET COWL MOUNTING BRACKET (BLACK/GRAY) |
2 | discontinued |
| 20 | 67749 |
РЫЧАГ Дроссельная заслонка LOWER LEVER Throttle LOWER |
1 | discontinued |
| 21 | 15124 |
ВИНТ (№10-32 x 0.750) THROTTLE LEVERS TO THROTTLE LINK SCREW (#10-32 x .750) THROTTLE LEVERS TO THROTTLE LINK |
3 | |
| 22 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь THROTTLE LEVERS SCREW LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW |
3 | |
| 23 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) THROTTLE LEVERS SCREW WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW |
3 | superseded |
| 24 | 67297 |
ШТИФТ Вилка THROTTLE LEVERS TO THROTTLE LINK PIN Clevis THROTTLE LEVERS TO THROTTLE LINK |
3 | |
| 25 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) CLEVIS PIN WASHER (.203 x .406 x .040) CLEVIS PIN |
3 | |
| 26 | 26953 |
ШПЛИНТ CLEVIS PIN COTTER PIN CLEVIS PIN |
3 | |
| 27 | 67748 |
РОЛИК LOWER THROTTLE LEVER ROLLER LOWER THROTTLE LEVER |
1 | |
| 28 | 69020 |
ВИНТ (№10-32 x 0.875) IDLE SPEED CONTROL SCREW (#10-32 x .875) IDLE SPEED CONTROL |
2 | superseded |
| 29 | 38833 |
ШАЙБА IDLE SPEED CONTROL SCREW WASHER IDLE SPEED CONTROL SCREW |
2 | |
| 3 | 90435 |
КРЕПЛЕНИЕ COWL MOUNTING BRACKET BLACK/GRAY MOUNT COWL MOUNTING BRACKET BLACK/GRAY |
2 | |
| 4 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь MOUNT ATTACHING (BLACK/GRAY) WASHER (.281 x .500 x .060) Stainless Steel MOUNT ATTACHING (BLACK/GRAY) |
4 | superseded |
| 5 | 35888 |
ГАЙКА (0.250-28), нержавеющая сталь MOUNT ATTACHING (BLACK/GRAY) NUT (.250-28) Stainless Steel MOUNT ATTACHING (BLACK/GRAY) |
4 | |
| 6 | 87076A4 |
СИСТЕМА РЕГУЛИРОВКИ СКОРОСТИ ХОЛОСТОГО ХОДА В СБОРЕ IDLE SPEED CONTROL ASSEMBLY |
1 | discontinued |
| 7 | 799831 |
ПЛАСТИНА CHOKE PLATE CHOKE |
1 | discontinued |
| 8 | 67274 |
ПРОКЛАДКА CHOKE PLATE TO CARBURETOR GASKET CHOKE PLATE TO CARBURETOR |
1 | superseded |
| 9 | 68000 |
ВИНТ (0.250-28 x 1.00) CHOKE PLATE TO CARBURETOR SCREW (.250-28 x 1.00) CHOKE PLATE TO CARBURETOR |
6 | discontinued |
