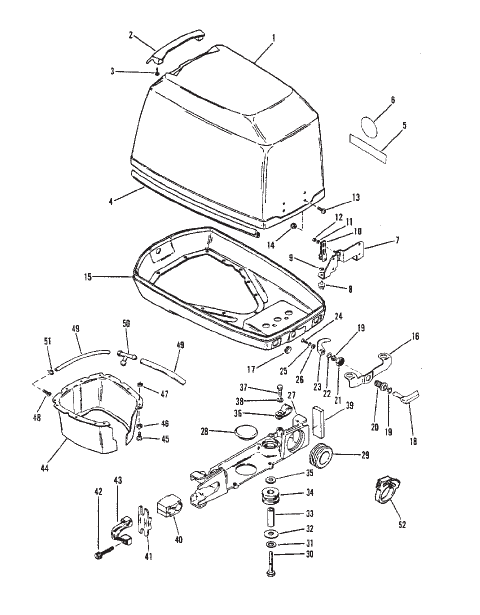

Cowls (Oyster Bucket Style)
Parts (53)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9735A2 |
ВЕРХНИЙ КОЖУХ В СБОРЕ TOP COWL ASSEMBLY |
1 | discontinued |
| 10 | 18173 |
КРОНШТЕЙН В СБОРЕ Роликовая защелка ROLLER BRACKET ASSEMBLY Latch Roller ROLLER |
2 | superseded |
| 11 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
4 | |
| 12 | 67980 |
ГАЙКА (0.312-18) NUT (.312-18) |
4 | superseded |
| 13 | 18192 |
ВИНТ (0.250-20 x 0.620) BRACKET SCREW (.250-20 x .620) BRACKET |
8 | discontinued |
| 14 | 56374 |
ГАЙКА (0.250-20) BRACKET SCREW NUT (.250-20) BRACKET SCREW |
8 | superseded |
| 15 | 9734T10 |
НИЖНИЙ КОЖУХ BOTTOM COWL |
1 | discontinued |
| 16 | 18183 |
КРОНШТЕЙН COWL LATCH BRACKET COWL LATCH |
2 | discontinued |
| 17 | 18182 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 18 | 18168A1 |
РУЧКА ЗАЩЕЛКИ В СБОРЕ LATCH HANDLE ASSEMBLY |
2 | discontinued |
| 19 | 71984 |
ВТУЛКА BUSHING |
4 | superseded |
| 2 | 18036A1 |
ЖАЛЮЗИ В СБОРЕ LOUVER ASSEMBLY |
1 | discontinued |
| 20 | 18172 |
ВТУЛКА COWL LATCH BUSHING COWL LATCH |
2 | discontinued |
| 21 | 18304 |
ГАЙКА NUT |
2 | |
| 22 | 69708 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
2 | |
| 23 | 18169 |
КРЮК COWL LATCH HOOK COWL LATCH |
2 | discontinued |
| 24 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь SCREW (.250-20 x .620) Stainless Steel |
2 | |
| 25 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 26 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 27 | 994241 |
КРОНШТЕЙН LOWER COWL BRACKET LOWER COWL |
1 | discontinued |
| 28 | 18219 |
ПРОБКА PLUG |
1 | discontinued |
| 29 | 13467 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (Внутренний диаметр 0.88) GROMMET (.88 Inside Diameter) |
1 | |
| 3 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь SCREW (#10-16 x .625) Stainless Steel |
3 | |
| 30 | 70732 |
ВИНТ (0.250-20 x 2.00) SCREW (.250-20 x 2.00) |
2 | |
| 31 | 20346 |
ШАЙБА WASHER |
4 | superseded |
| 32 | 35280 |
ШАЙБА (0.255 x 0.620 x 0.030), нержавеющая сталь WASHER (.255 x .620 x .030) Stainless Steel |
4 | |
| 33 | 18194 |
ВТУЛКА BUSHING |
2 | discontinued |
| 34 | 88033 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | discontinued |
| 35 | 28927 |
ШАЙБА WASHER |
2 | superseded |
| 36 | 18479 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 37 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь SCREW (.250-20 x .620) Stainless Steel |
1 | |
| 38 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
1 | |
| 39 | 67260 |
УПЛОТНЕНИЕ CONTROL CABLES SEAL CONTROL CABLES |
1 | discontinued |
| 4 | 17973 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 40 | 99391 |
ФИКСАТОР OIL LINES RETAINER OIL LINES |
1 | discontinued |
| 41 | 88622 |
ПЛАСТИНА CABLE RETAINER PLATE CABLE RETAINER |
1 | discontinued |
| 42 | 22411 |
ВИНТ (0.190-24 x 1.00) CABLE RETAINER SCREW (.190-24 x 1.00) CABLE RETAINER |
2 | superseded |
| 43 | 99447T |
ФИКСАТОР CABLE RETAINER CABLE |
1 | superseded |
| 44 | 18037T10 |
КРЫШКА ДИФФЕРЕНТА COWL TRIM COVER COWL |
1 | discontinued |
| 45 | 18124 |
ВИНТ (№10-32 x 0.750) TRIM COVER TO PLATE SCREW (#10-32 x .750) TRIM COVER TO PLATE |
12 | discontinued |
| 46 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) TRIM COVER SCREW WASHER (.203 x .406 x .040) TRIM COVER SCREW |
6 | |
| 47 | 29488 |
ГАЙКА (№10-32) TRIM COVER SCREW NUT (#10-32) TRIM COVER SCREW |
12 | superseded |
| 48 | 18195 |
ФИТИНГ TELL TALE FITTING TELL TALE |
1 | discontinued |
| 49 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") TELL TALE LINE (57.00 Inches Bulk) TELL TALE |
2 | superseded |
| 5 | 17996 |
ЭМБЛЕМА EMBLEM |
2 | discontinued |
| 50 | 90824 |
ТРОЙНИК TELL TALE HOSE TEE TELL TALE HOSE |
1 | superseded |
| 51 | 73498 |
ЗАЖИМ CLAMP |
AR | superseded |
| 52 | 4158210 |
ЗАЖИМ Нейлон CLAMP Nylon |
1 | discontinued |
| 6 | 179061 |
ЭМБЛЕМА EMBLEM |
2 | discontinued |
| 7 | 18189A1 |
КРОНШТЕЙН В СБОРЕ COWL LATCH (FRONT) BRACKET ASSEMBLY COWL LATCH (FRONT) |
1 | discontinued |
| 7 | 18190A1 |
КРОНШТЕЙН В СБОРЕ COWL LATCH (REAR) BRACKET ASSEMBLY COWL LATCH (REAR) |
1 | discontinued |
| 8 | 18170A1 |
ОПОРА НАПРАВЛЯЮЩЕЙ GUIDE MOUNT |
4 | discontinued |
| 9 | 18193 |
ЗАЖИМ GUIDE MOUNT CLIP GUIDE MOUNT |
4 | discontinued |
