| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863631T1 |

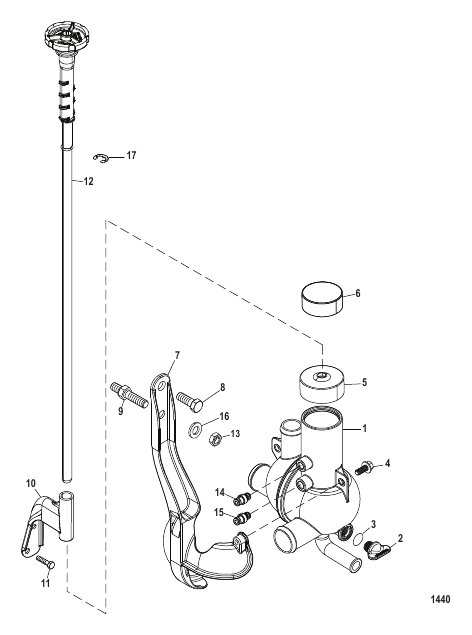

КОРПУС Water Distribution Manual (Standard Cooling) HOUSING Water Distribution Manual (Standard Cooling) |
1 | |
| 1 | 863444T1 |
КОРПУС Water Distribution Rod Actuated (Standard Cooling) HOUSING Water Distribution Rod Actuated (Standard Cooling) |
1 | |
| 1 | 863444T2 |
КОРПУС Water Distribution Air Actuated Drain (Standard Cooling) HOUSING Water Distribution Air Actuated Drain (Standard Cooling) |
1 | |
| 1 | 863802T2 |
КОРПУС Water Distribution Air Actuated Drain (Closed Cooling) HOUSING Water Distribution Air Actuated Drain (Closed Cooling) |
1 | |
| 10 | 863451T |
КРОНШТЕЙН Water Drain Actuator BRACKET Water Drain Actuator |
1 | |
| 11 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 | |
| 12 | 863381A1 |
СТЕРЖЕНЬ ДЛЯ ПРОЧИСТКИ В СБОРЕ DRAIN ROD ASSEMBLY |
1 | |
| 13 | 32219 |
ГАЙКА (.375-16) NUT (.375-16) |
1 | |
| 14 | 863499 |
ФИТИНГ Серый Air Valve Component of Air Actuated Housing Only FITTING Gray Air Valve Component of Air Actuated Housing Only |
1 | |
| 15 | 863467 |
ФИТИНГ Оранжевый Air Valve Component of Air Actuated Housing Only FITTING Orange Air Valve Component of Air Actuated Housing Only |
1 | |
| 16 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 17 | 863741 |
E-ОБРАЗНОЕ КОЛЬЦО E-RING |
1 | |
| 2 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | superseded |
| 3 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 4 | 8175051 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
3 | |
| 5 | 863839 |
КРЫШКА Rod Actuated COVER Rod Actuated |
1 | |
| 6 | 863865 |
КРЫШКА Manual Drain COVER Manual Drain |
1 | |
| 7 | 863449T |
КРОНШТЕЙН Water Distribution Housing BRACKET Water Distribution Housing |
1 | |
| 8 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
1 | |
| 9 | 805357 |
ШПИЛЬКА (0.375-16 x 2.130) STUD (.375-16 x 2.130) |
1 | superseded |
