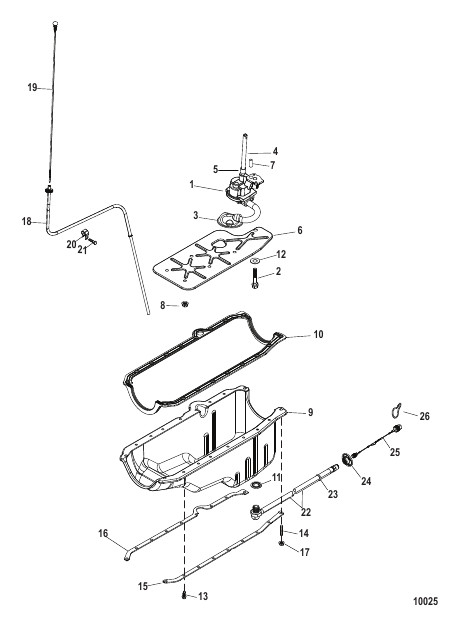

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A06 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 809907002 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | |
| 10 | 138651 |
ПРОКЛАДКА Oil Pan GASKET Oil Pan |
1 | superseded |
| 11 | 49955 |
ПРОКЛАДКА Drain Screw GASKET Drain Screw |
1 | superseded |
| 12 | 27339 |
ШАЙБА WASHER |
1 | |
| 13 | 14070 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
14 | |
| 14 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) STUD (.312-18 x 1.6718) |
2 | |
| 15 | 14257 |
АРМАТУРА Port REINFORCEMENT Port |
1 | |
| 16 | 14256 |
АРМАТУРА Starboard REINFORCEMENT Starboard |
1 | |
| 17 | 11971 |
ГАЙКА (0.312-18) NUT (.312-18) |
4 | superseded |
| 18 | 860274A2 |
ТРУБА В СБОРЕ Dipstick [2A032739] & Below TUBE ASSEMBLY Dipstick [2A032739] & Below |
1 | |
| 18 | 8M0058920 |
ТРУБА В СБОРЕ Щуп [2A032740] & Up TUBE ASSEMBLY Dipstick [2A032740] & Up |
1 | |
| 19 | 861942T7 |
ЩУП [2A032739] & Below DIPSTICK [2A032739] & Below |
1 | |
| 19 | 8M0058919 |
ЩУП Уровень масла [2A032740] & Up DIPSTICK Oil Level [2A032740] & Up |
1 | |
| 2 | 17346 |
ВИНТ Oil Pump SCREW Oil Pump |
1 | |
| 20 | 805625 |
ЗАЖИМ Dipstick Tube CLIP Dipstick Tube |
1 | |
| 21 | 35366 |
ВИНТ SCREW |
1 | superseded |
| 22 | 865281 |
РУКАВ Oil Drain HOSE Oil Drain |
1 | |
| 22 | 865280 |
РУКАВ Oil Drain (Jackshaft Models) HOSE Oil Drain (Jackshaft Models) |
1 | disc. |
| 23 | 863481 |
ЗАЖИМ Ty Strap CLAMP Ty Strap |
1 | |
| 24 | 862777 |
ФЛАНЕЦ Drain FLANGE Drain |
1 | |
| 25 | 862827 |
ТРОС В СБОРЕ TETHER ASSEMBLY |
1 | |
| 26 | 805524 |
ЗАЖИМ CLIP |
1 | |
| 3 | 809909 |
ЭКРАН Oil Pump Pick Up SCREEN Oil Pump Pick Up |
1 | |
| 4 | 36184 |
ВАЛ SHAFT |
1 | |
| 5 | 36183 |
ФИКСАТОР RETAINER |
1 | |
| 6 | 986021 |
ОТРАЖАТЕЛЬ Oil DEFLECTOR Oil |
1 | |
| 7 | 843378 |
ШТИФТ Штифт Alignment, Oil Pump PIN Dowel Alignment, Oil Pump |
1 | |
| 8 | 845602 |
ГАЙКА (.375-16) NUT (.375-16) |
5 | |
| 9 | 809910 |
ПОДДОН Масло PAN Oil |
1 | superseded |
