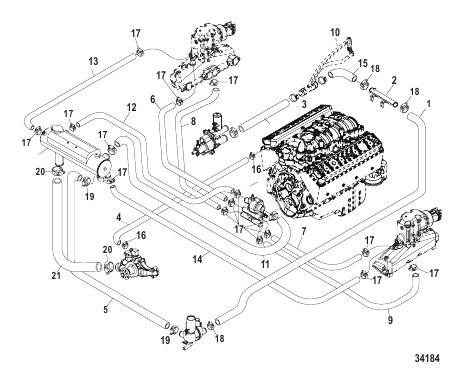

Closed Cooling System BRAVO
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 865247 |
РУКАВ Power Steering Cooler to Accumulator Housing HOSE Power Steering Cooler to Accumulator Housing |
1 | |
| 10 | NA |
NOT AVAILABLE Orifice Meter Assembly (See 'Cool Fuel System -Bravo' for Service Part Number) NOT AVAILABLE Orifice Meter Assembly (See 'Cool Fuel System -Bravo' for Service Part Number) |
1 | |
| 11 | 864506 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 12 | 864507 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 13 | 8M2005027 |
РУКАВ Heat Exchanger to Starboard Elbow (Non Riser, 1.7 Inch and 3 Inch Riser) HOSE Heat Exchanger to Starboard Elbow (Non Riser, 1.7 Inch and 3 Inch Riser) |
1 | |
| 13 | 864955 |
РУКАВ Heat Exchanger to Starboard Elbow (4.7 Inch and 6 Inch Riser) HOSE Heat Exchanger to Starboard Elbow (4.7 Inch and 6 Inch Riser) |
1 | discontinued |
| 14 | 864726 |
РУКАВ Heat Exchanger to Port Elbow (Non Riser, 1.7 Inch and 3 Inch Riser) HOSE Heat Exchanger to Port Elbow (Non Riser, 1.7 Inch and 3 Inch Riser) |
1 | |
| 14 | 864953 |
РУКАВ Heat Exchanger to Port Elbow (4.7 Inch and 6 Inch Riser) HOSE Heat Exchanger to Port Elbow (4.7 Inch and 6 Inch Riser) |
1 | discontinued |
| 15 | 865235 |
РУКАВ Water Orifice to Power Steering Cooler HOSE Water Orifice to Power Steering Cooler |
1 | superseded |
| 16 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 17 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
1 | |
| 18 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 19 | 8M2001490 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | superseded |
| 2 | 863841T |
ТРУБА Вода Brass (Compact Hydraulic Steering) TUBE Water Brass (Compact Hydraulic Steering) |
1 | |
| 20 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
1 | |
| 21 | 864886 |
РУКАВ Heat Exchanger to Circulating Pump HOSE Heat Exchanger to Circulating Pump |
1 | |
| 3 | 865234 |
РУКАВ Sea Water Pump to Water Orifice HOSE Sea Water Pump to Water Orifice |
||
| 4 | 864551 |
РУКАВ Intake Bypass to Circulating Pump HOSE Intake Bypass to Circulating Pump |
1 | |
| 5 | 864431 |
РУКАВ Distribution Fitting to Heat Exchanger HOSE Distribution Fitting to Heat Exchanger |
1 | |
| 6 | 864539 |
РУКАВ Thermostat Housing to Upper Manifold (Starboard) (Non Riser) HOSE Thermostat Housing to Upper Manifold (Starboard) (Non Riser) |
1 | |
| 6 | 864956 |
РУКАВ Thermostat Housing to Upper Manifold (Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) HOSE Thermostat Housing to Upper Manifold (Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) |
1 | |
| 7 | 864552 |
РУКАВ Thermostat Housing to Upper Manifold (Port) (Non Riser) HOSE Thermostat Housing to Upper Manifold (Port) (Non Riser) |
1 | |
| 7 | 864954 |
РУКАВ Thermostat Housing to Upper Manifold (Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) HOSE Thermostat Housing to Upper Manifold (Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) |
1 | |
| 8 | 864509 |
РУКАВ Thermostat Housing to Lower Manifold (Starboard) HOSE Thermostat Housing to Lower Manifold (Starboard) |
1 | |
| 9 | 864508 |
РУКАВ Thermostat Housing to Lower Manifold (Port) HOSE Thermostat Housing to Lower Manifold (Port) |
1 |
