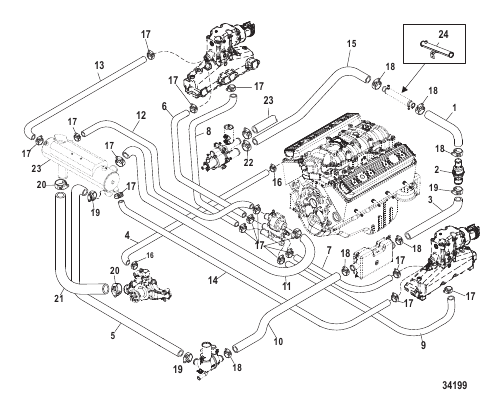

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863489 |
РУКАВ Power Steering to Check Valve HOSE Power Steering to Check Valve |
1 | |
| 10 | 863670 |
РУКАВ Fuel Cooler to Accumulator Housing HOSE Fuel Cooler to Accumulator Housing |
1 | |
| 11 | 864506 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 12 | 864507 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 13 | 8M2005027 |
РУКАВ Heat Exchanger to Starboard Elbow (Non Riser, 1.7 Inch and 3 Inch Riser) HOSE Heat Exchanger to Starboard Elbow (Non Riser, 1.7 Inch and 3 Inch Riser) |
1 | |
| 13 | 864955 |
РУКАВ Heat Exchanger to Starboard Elbow (4.7 Inch and 6 Inch Riser) HOSE Heat Exchanger to Starboard Elbow (4.7 Inch and 6 Inch Riser) |
1 | disc. |
| 14 | 864726 |
РУКАВ Heat Exchanger to Port Elbow (Non Riser, 1.7 Inch and 3 Inch Riser) HOSE Heat Exchanger to Port Elbow (Non Riser, 1.7 Inch and 3 Inch Riser) |
1 | |
| 14 | 864953 |
РУКАВ Heat Exchanger to Port Elbow (4.7 Inch and 6 Inch Riser) HOSE Heat Exchanger to Port Elbow (4.7 Inch and 6 Inch Riser) |
1 | disc. |
| 15 | 863611 |
РУКАВ Sea Pump to Power Steering Cooler HOSE Sea Pump to Power Steering Cooler |
1 | |
| 16 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 17 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
1 | |
| 18 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 19 | 8M2001490 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | superseded |
| 2 | 864206A1 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | |
| 20 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
1 | |
| 21 | 864886 |
РУКАВ Heat Exchanger to Circulating Pump HOSE Heat Exchanger to Circulating Pump |
1 | |
| 22 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 23 | 865672079 |
РУКАВ (Общая длина 96.00") Sea Water Pump to Water Pick Up HOSE (96.00 Inches Bulk) Sea Water Pump to Water Pick Up |
1 | superseded |
| 24 | 863841T |
ТРУБА Вода Brass Compact Hydralic Steering TUBE Water Brass Compact Hydralic Steering |
1 | |
| 3 | 863623 |
РУКАВ Check Valve to Fuel Cooler HOSE Check Valve to Fuel Cooler |
1 | |
| 4 | 864551 |
РУКАВ Intake Bypass to Circulating Pump HOSE Intake Bypass to Circulating Pump |
1 | |
| 5 | 864431 |
РУКАВ Distribution Fitting to Heat Exchanger HOSE Distribution Fitting to Heat Exchanger |
1 | |
| 6 | 864539 |
РУКАВ Thermostat Housing to Upper Manifold Starboard, Non- Riser HOSE Thermostat Housing to Upper Manifold Starboard, Non- Riser |
1 | |
| 6 | 864956 |
РУКАВ Thermostat Housing to Upper Manifold Starboard (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) HOSE Thermostat Housing to Upper Manifold Starboard (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) |
1 | |
| 7 | 864552 |
РУКАВ Thermostat Housing to Upper Manifold Port, Non-Riser HOSE Thermostat Housing to Upper Manifold Port, Non-Riser |
1 | |
| 7 | 864954 |
РУКАВ Thermostat Housing to Upper Manifold Port (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) HOSE Thermostat Housing to Upper Manifold Port (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser) |
1 | |
| 8 | 864509 |
РУКАВ Thermostat Housing to Lower Manifold Starboard HOSE Thermostat Housing to Lower Manifold Starboard |
1 | |
| 9 | 864508 |
РУКАВ Thermostat Housing to Lower Manifold Port HOSE Thermostat Housing to Lower Manifold Port |
1 |
