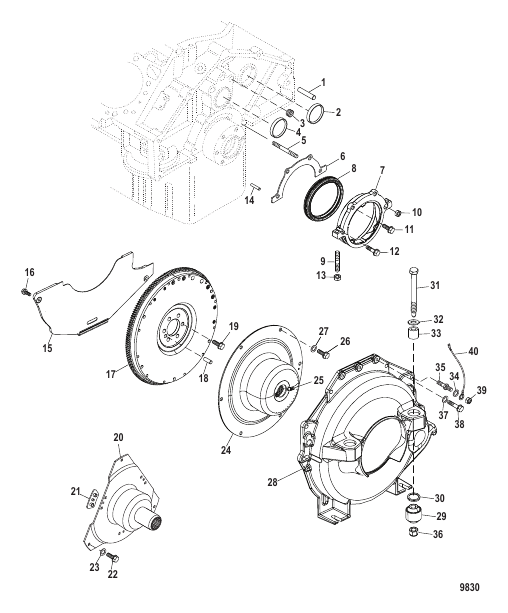

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 843379 |
ШТИФТ Штифт (0.6206/0.6211 x 1.20) Flywheel Housing Location PIN Dowel (.6206/.6211 x 1.20) Flywheel Housing Location |
2 | disc. |
| 10 | 8167301 |
ГАЙКА NUT |
1 | superseded |
| 11 | 14242 |
БОЛТ (0.250-20 x 0.875) BOLT (.250-20 x .875) |
2 | |
| 12 | 14243 |
БОЛТ (0.250-20 x 1.750) BOLT (.250-20 x 1.750) |
1 | superseded |
| 13 | 11971 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 14 | 14263 |
ШТИФТ Штифт Oil Seal Housing Location PIN Dowel Oil Seal Housing Location |
1 | |
| 15 | 807260A2 |
КОМПЛЕКТ КРЫШЕК Маховик COVER KIT Flywheel |
1 | |
| 16 | 76596 |
ВИНТ (0.250-20 x 1.250) SCREW (.250-20 x 1.250) |
2 | |
| 16 | 86885 |
ВИНТ (0.250-20 x 1.500), нержавеющая сталь Not Included With Item 15 (SEACORE) SCREW (.250-20 x 1.500) Stainless Steel Not Included With Item 15 (SEACORE) |
2 | |
| 17 | 9520001 |
МАХОВИК FLYWHEEL |
1 | superseded |
| 18 | 43504 |
ШТИФТ Штифт Flywheel PIN Dowel Flywheel |
2 | |
| 19 | 845757 |
ВИНТ (0.437-20 x 1.00) SCREW (.437-20 x 1.00) |
6 | superseded |
| 2 | 34270 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА (1.625) Engine Core Hole EXPANSION PLUG (1.625) Engine Core Hole |
8 | |
| 20 | 18643A5 |
СОЕДИНИТЕЛЬНАЯ МУФТА В СБОРЕ Alpha COUPLING ASSEMBLY Alpha |
1 | |
| 21 | 18644 |
УПОР Резина Alpha BUMPER Rubber Alpha |
3 | |
| 22 | 14883 |
ВИНТ (0.375-16 x 1.12) Alpha SCREW (.375-16 x 1.12) Alpha |
3 | superseded |
| 23 | 13510 |
ШАЙБА Alpha WASHER Alpha |
3 | |
| 24 | 861523A9 |
СОЕДИНИТЕЛЬНАЯ МУФТА В СБОРЕ Двигатель – короткая алюминиевая ступица Bravo and All Jacksahft Models COUPLER ASSEMBLY Engine - Short Aluminum Hub Bravo and All Jacksahft Models |
1 | superseded |
| 24 | 861523A11 |
СОЕДИНИТЕЛЬНАЯ МУФТА В СБОРЕ Двигатель Bravo, Steel Hub for Work Application COUPLER ASSEMBLY Engine Bravo, Steel Hub for Work Application |
OPT | |
| 25 | 49099 |
ФИТИНГ Bravo FITTING Bravo |
2 | superseded |
| 26 | 863480 |
ВИНТ (0.375-16 x 1.125) Bravo SCREW (.375-16 x 1.125) Bravo |
6 | |
| 27 | 20572 |
ШАЙБА (0.390 x 0.750 x 0.093) Bravo WASHER (.390 x .750 x .093) Bravo |
6 | |
| 28 | 865657A03 |
КОРПУС В СБОРЕ Маховик Alpha/Bravo HOUSING ASSEMBLY Flywheel Alpha/Bravo |
1 | |
| 29 | 865329A02 |
МОНТАЖНЫЙ КОМПЛЕКТ Резина Alpha/Bravo MOUNT KIT Rubber Alpha/Bravo |
1 | disc. |
| 3 | 48340 |
ПРОБКА (0.250-18 x 0.41) Oil Galley PLUG (.250-18 x .41) Oil Galley |
4 | superseded |
| 30 | 99322 |
ПРОСТАВКА SPACER |
2 | |
| 31 | 97934 |
ВИНТ (0.500-20 x 5.370), специальный SCREW (.500-20 x 5.370) Special |
2 | superseded |
| 32 | 35777 |
ШАЙБА (0.5156 x 1.375 x 0.125), алюминий WASHER (.5156 x 1.375 x .125) Aluminum |
2 | |
| 33 | 99299 |
ПРОСТАВКА (0.520 x 0.870 x 0.630) SPACER (.520 x .870 x .630) |
2 | |
| 34 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
2 | |
| 35 | 64066 |
ШПИЛЬКА (0.375-16 x 2.750), специальный STUD (.375-16 x 2.750) Special |
2 | superseded |
| 36 | 863332 |
ГАЙКА (0.500-20), алюминий NUT (.500-20) Aluminum |
2 | |
| 37 | 20572 |
ШАЙБА (0.390 x 0.750 x 0.093) WASHER (.390 x .750 x .093) |
1 | |
| 38 | 68101 |
ВИНТ (0.375-16 x 1.375) SCREW (.375-16 x 1.375) |
3 | |
| 38 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
1 | |
| 38 | 8M2015899 |
ВИНТ (0.375-16 x 1.37), нержавеющая сталь (SEACORE) SCREW (.375-16 x 1.37) Stainless Steel (SEACORE) |
4 | |
| 39 | 32219 |
ГАЙКА (.375-16) NUT (.375-16) |
1 | |
| 39 | 82671112 |
ГАЙКА (.375-16) (SEACORE) NUT (.375-16) (SEACORE) |
1 | |
| 4 | 72640 |
ПРОБКА Expansion, Camshaft Bearing Hole PLUG Expansion, Camshaft Bearing Hole |
1 | |
| 40 | 62826A6 |
КАБЕЛЬ В СБОРЕ Заземление (13.00"), черный CABLE ASSEMBLY Ground (13.00 Inches) Black |
2 | superseded |
| 5 | 14827 |
ШПИЛЬКА (0.250-20 x 2.180) STUD (.250-20 x 2.180) |
2 | |
| 6 | 881715 |
ПРОКЛАДКА Crankshaft Oil Seal Housing GASKET Crankshaft Oil Seal Housing |
1 | |
| 7 | 852940 |
КОРПУС В СБОРЕ Со шпильками Crankshaft Oil Seal HOUSING ASSEMBLY With Studs Crankshaft Oil Seal |
1 | |
| 8 | 852941 |
УПЛОТНЕНИЕ Cranskshaft Oil SEAL Cranskshaft Oil |
1 | |
| 9 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) STUD (.312-18 x 1.6718) |
2 | |
| NS | 807296 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 | |
| NS | 74036 |
ФИТИНГ Смазка Alpha FITTING Grease Alpha |
1 | superseded |
