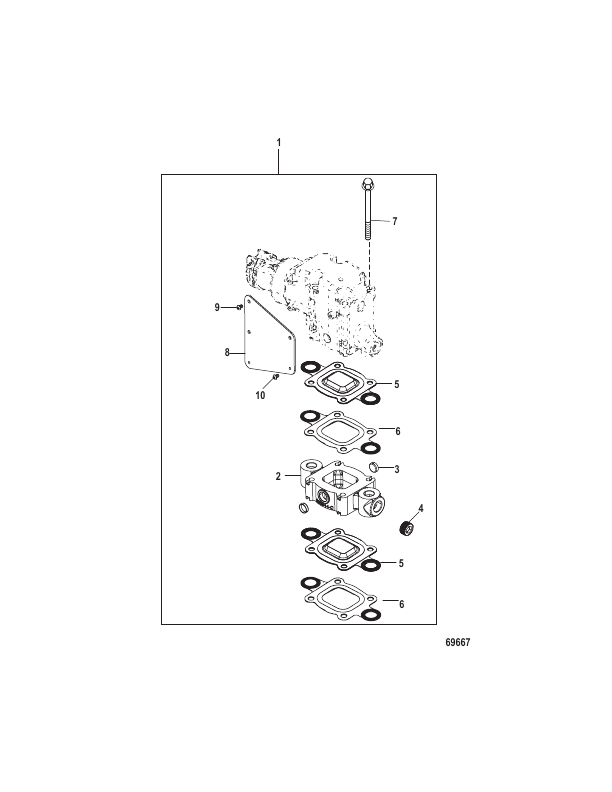

Exhaust Risers
Parts (11)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 866007A01 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА 1.7 Inch RISER EXTENSION KIT 1.7 Inch |
1 | |
| 10 | 864378 |
ВИНТ (0.250-20 x 0.375), Torx SCREW (.250-20 x .375) Torx |
1 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО 1.7 Inch NOT SOLD SEPARATE 1.7 Inch |
2 | |
| 3 | 864689 |
ПРОБКА Расширитель 1.7 Inch Riser PLUG Expansion 1.7 Inch Riser |
2 | |
| 4 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
2 | superseded |
| 5 | 864850A02 |
ПРОКЛАДКА Restrictor GASKET Restrictor |
2 | |
| 5 | 864549A02 |
ПРОКЛАДКА Block Off GASKET Block Off |
2 | |
| 6 | 864547A02 |
ПРОКЛАДКА Full Flow GASKET Full Flow |
2 | |
| 7 | 8M0163025 |
ВИНТ 1.7 Inch Riser SCREW 1.7 Inch Riser |
8 | |
| 8 | 863714T01 |
КРОНШТЕЙН BRACKET |
1 | |
| 9 | 860008 |
ВИНТ (0.250-20 x 0.625), Torx SCREW (.250-20 x .625) Torx |
3 |
