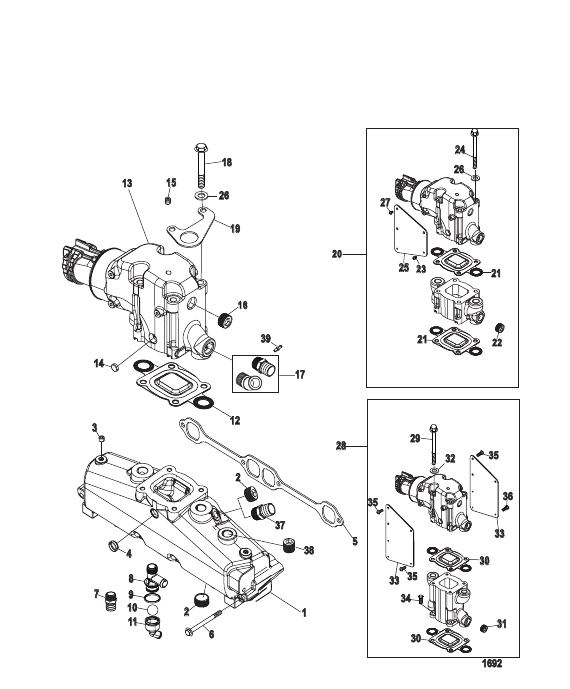

EXHAUST MANIFOLD AND ELBOW
Parts (53)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 861246A98 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | superseded |
| 1 | 864308T01 |
ВПУСКНОЙ КОЛЛЕКТОР Exhaust MANIFOLD ASSEMBLY Exhaust |
2 | superseded |
| 10 | 863129 |
ШАРИК BALL |
1 | |
| 11 | 862994T |
ФИТИНГ FITTING |
1 | |
| 12 | 864850A1 |
ПРОКЛАДКА Elbow(Restrictor) (Standard Cooling) GASKET Elbow(Restrictor) (Standard Cooling) |
2 | superseded |
| 12 | 864549A1 |
ПРОКЛАДКА Elbow(Block Off) (Closed Cooling) GASKET Elbow(Block Off) (Closed Cooling) |
2 | superseded |
| 13 | 864591T02 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Exhaust ELBOW ASSEMBLY Exhaust |
2 | |
| 14 | 864689 |
ПРОБКА Расширитель PLUG Expansion |
3 | |
| 15 | 73379 |
ПРОБКА (.250-18) PLUG (.250-18) |
AR | superseded |
| 16 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
2 | superseded |
| 17 | 864623A1 |
ФИТИНГИ В СБОРЕ Barb (With Tapped Fitting) FITTING ASSEMBLY Barb (With Tapped Fitting) |
1 | |
| 17 | 92499T |
ФИТИНГ (45 градусов) FITTING (45 Degree) |
1 | superseded |
| 18 | 864665 |
ВИНТ (0.375-16 x 7.50) SCREW (.375-16 x 7.50) |
8 | |
| 19 | 864263 |
КРОНШТЕЙН Flushing Attatchment BRACKET Flushing Attatchment |
1 | |
| 2 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
8 | superseded |
| 20 | 864306A5 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (3 In. Cold Riser) (Standard Cooling) [0M389999] & Below RISER EXTENSION KIT (3 In. Cold Riser) (Standard Cooling) [0M389999] & Below |
1 | |
| 20 | 864929A3 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (3 In. Warm Riser) (Standard Cooling) [0M390000] & Up RISER EXTENSION KIT (3 In. Warm Riser) (Standard Cooling) [0M390000] & Up |
1 | |
| 20 | 864306A4 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (3 In. Cold Riser) (Closed Cooling) [0M389999] & Below RISER EXTENSION KIT (3 In. Cold Riser) (Closed Cooling) [0M389999] & Below |
1 | |
| 20 | 864929A4 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (3 In. Warm Riser) (Closed Cooling) [0M390000] & Up RISER EXTENSION KIT (3 In. Warm Riser) (Closed Cooling) [0M390000] & Up |
1 | |
| 21 | 864850A1 |
ПРОКЛАДКА (Restrictor) (Standard Cooling) GASKET (Restrictor) (Standard Cooling) |
2 | superseded |
| 21 | 864549A1 |
ПРОКЛАДКА Block Off (Closed Cooling) GASKET Block Off (Closed Cooling) |
2 | superseded |
| 21 | 864547A1 |
ПРОКЛАДКА FullFlow (With Risers Only) GASKET FullFlow (With Risers Only) |
2 | superseded |
| 22 | 863804 |
ФИТИНГ (0.750-14) FITTING (.750-14) |
2 | superseded |
| 23 | 864378 |
ВИНТ (0.250-20 x 0.375), Torx SCREW (.250-20 x .375) Torx |
1 | |
| 24 | 864702 |
БОЛТ (0.375-16 x 10.500) BOLT (.375-16 x 10.500) |
8 | discontinued |
| 25 | 863714T |
КРОНШТЕЙН ECM Mounting BRACKET ECM Mounting |
1 | superseded |
| 26 | 34714 |
ШАЙБА WASHER |
8 | |
| 27 | 860008 |
ВИНТ (0.250-20 x 0.625), Torx SCREW (.250-20 x .625) Torx |
1 | |
| 28 | 864307A3 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (6 In. Cold Riser) (Standard Cooling) [0M389999] & Below RISER EXTENSION KIT (6 In. Cold Riser) (Standard Cooling) [0M389999] & Below |
1 | superseded |
| 28 | 864908A1 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (6 In. Warm Riser) (Standard Cooling) [0M390000] & Up RISER EXTENSION KIT (6 In. Warm Riser) (Standard Cooling) [0M390000] & Up |
1 | |
| 28 | 864307A2 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (6 In. Cold Riser) (Closed Cooling) [0M389999] & Below RISER EXTENSION KIT (6 In. Cold Riser) (Closed Cooling) [0M389999] & Below |
1 | superseded |
| 28 | 864908A2 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА (6 In. Warm Riser) (Closed Cooling) [0M390000] & Up RISER EXTENSION KIT (6 In. Warm Riser) (Closed Cooling) [0M390000] & Up |
1 | |
| 29 | 864665 |
ВИНТ (0.375-16 x 7.50) SCREW (.375-16 x 7.50) |
8 | |
| 3 | 390721 |
ПРОБКА Труба (0.125-27), латунь PLUG Pipe (.125-27) Brass |
2 | |
| 30 | 864850A1 |
ПРОКЛАДКА Restrictor (Standard Cooling) GASKET Restrictor (Standard Cooling) |
2 | superseded |
| 30 | 864549A1 |
ПРОКЛАДКА Block Off (Closed Cooling) GASKET Block Off (Closed Cooling) |
2 | superseded |
| 30 | 864547A1 |
ПРОКЛАДКА Full Flow (With Risers Only) GASKET Full Flow (With Risers Only) |
2 | superseded |
| 31 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
2 | superseded |
| 32 | 34714 |
ШАЙБА WASHER |
8 | |
| 33 | 863715T01 |
КРОНШТЕЙН ECM Mounting BRACKET ECM Mounting |
2 | |
| 34 | 12244 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
8 | superseded |
| 35 | 860008 |
ВИНТ (0.250-20 x 0.625), Torx SCREW (.250-20 x .625) Torx |
6 | |
| 36 | 864378 |
ВИНТ (0.250-20 x 0.375), Torx SCREW (.250-20 x .375) Torx |
1 | |
| 37 | 863804 |
ФИТИНГ (0.750-14) FITTING (.750-14) |
1 | superseded |
| 38 | 37372 |
ПРОБКА Труба (0.500) PLUG Pipe (.500) |
2 | superseded |
| 38 | 12524 |
ПРОБКА (0.375-18 x 0.475), латунь PLUG (.375-18 x .475) Brass |
2 | |
| 39 | 16604 |
ФИТИНГ Прямой (0.125-27) Barb FITTING Straight (.125-27) Barb |
1 | |
| 4 | 864689 |
ПРОБКА Расширитель PLUG Expansion |
3 | |
| 5 | 33395 |
ПРОКЛАДКА GASKET |
2 | |
| 6 | 53728 |
ВИНТ (0.375-16 x 4.75) SCREW (.375-16 x 4.75) |
8 | superseded |
| 7 | 863804 |
ФИТИНГ (0.750-14) (Closed Cooling) FITTING (.750-14) (Closed Cooling) |
2 | superseded |
| 8 | 863786A1 |
ФИТИНГИ В СБОРЕ Drain (Standard Cooling) FITTING ASSEMBLY Drain (Standard Cooling) |
2 | |
| 9 | 47632 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.112 x 0.103) O-RING (1.112 x .103) |
1 | superseded |
