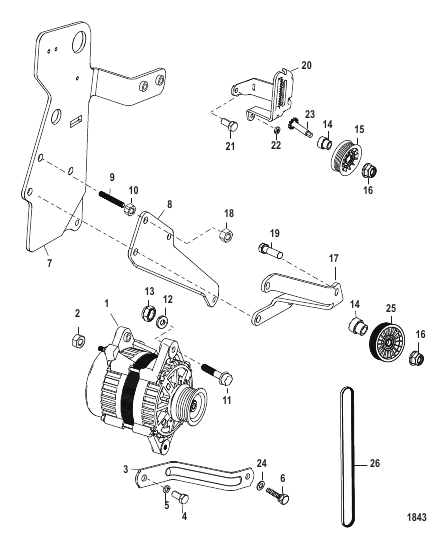

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863077T |
ГЕНЕРАТОР В СБОРЕ Черный (65 Amp)(50mm Pulley) Service Complete Assembly ALTERNATOR ASSEMBLY Black (65 Amp)(50mm Pulley) Service Complete Assembly |
1 | |
| 10 | 32219 |
ГАЙКА (.375-16) Standard Cooling NUT (.375-16) Standard Cooling |
3 | |
| 11 | 828213 |
ВИНТ Шестигранный фланец (0.312-18 x 1.500) Closed Cooling SCREW (.312-18 x 1.500) Hex Flange Closed Cooling |
2 | |
| 12 | 57792 |
ШАЙБА WASHER |
2 | |
| 13 | 859119 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 14 | 865193 |
ВТУЛКА BUSHING |
2 | |
| 15 | 865444T |
ШКИВ (Диаметр 3.50") PULLEY (3.50 Inch Diameter) |
2 | |
| 15 | 807757T |
ШКИВ В СБОРЕ Холостой ролик – черный (3 Inch Diameter) PULLEY ASSEMBLY Idler - Black (3 Inch Diameter) |
2 | |
| 16 | 859135 |
ГАЙКА (0.437-20), с латунным/никелевым покрытием NUT (.437-20) Brass/Nickel Plated |
2 | |
| 17 | 807753T1 |
КРОНШТЕЙН Idler BRACKET Idler |
1 | |
| 18 | 32219 |
ГАЙКА (.375-16) NUT (.375-16) |
3 | |
| 19 | 816601 |
ВИНТ (0.437-20 x 1.500) SCREW (.437-20 x 1.500) |
1 | |
| 2 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 20 | 807767T |
КРОНШТЕЙН Регулировка холостого хода BRACKET Idler Adjustment |
1 | |
| 21 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
1 | |
| 22 | 29250 |
ГАЙКА (0.312-24) NUT (.312-24) |
1 | |
| 23 | 8183812 |
ШПИЛЬКА ШЕСТЕРНИ (.437-20), нержавеющая сталь PINION STUD (.437-20) Stainless Steel |
1 | superseded |
| 24 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
1 | |
| 25 | 864625T |
ШКИВ (4-1/4 In. Diameter) PULLEY (4-1/4 In. Diameter) |
1 | |
| 26 | 865615005 |
РЕМЕНЬ Поликлиновый Standard Cooling BELT Serpentine Standard Cooling |
1 | superseded |
| 26 | 865615010 |
РЕМЕНЬ Поликлиновый Closed Cooling BELT Serpentine Closed Cooling |
1 | superseded |
| 3 | 807750T |
СКОБА BRACE |
1 | |
| 4 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
1 | |
| 5 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 6 | 40001134 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
1 | |
| 7 | 8645581 |
КРОНШТЕЙН Alternator and lifting Eye Inline, Standard Cooling BRACKET Alternator and lifting Eye Inline, Standard Cooling |
1 | |
| 7 | 864558 |
КРОНШТЕЙН Alternator and lifting Eye Inline, Closed Cooling BRACKET Alternator and lifting Eye Inline, Closed Cooling |
1 | |
| 7 | 863646 |
КРОНШТЕЙН Alternator and lifting Eye V-Drive, Standard Cooling BRACKET Alternator and lifting Eye V-Drive, Standard Cooling |
1 | |
| 7 | 8636461 |
КРОНШТЕЙН Alternator and lifting Eye V-Drive, Closed Cooling BRACKET Alternator and lifting Eye V-Drive, Closed Cooling |
1 | |
| 8 | 862058T |
СКОБА Alternator BRACE Alternator |
1 | |
| 9 | 862615 |
ШПИЛЬКА (0.375-16 x 2.25) STUD (.375-16 x 2.25) |
3 |
