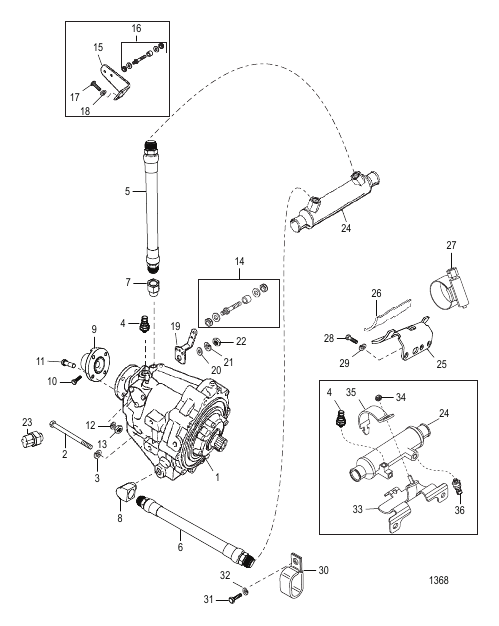

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 47805A7 |
ТРАНСМИССИЯ В СБОРЕ (71C)(1.1:1) TRANSMISSION ASSEMBLY (71C)(1.1:1) |
1 | |
| 1 | 47810A19 |
ТРАНСМИССИЯ (72C)(1.1:1) TRANSMISSION (72C)(1.1:1) |
1 | disc. |
| 1 | 47811A7 |
ТРАНСМИССИЯ (72C)(1.5:1) TRANSMISSION (72C)(1.5:1) |
1 | |
| 1 | 60961A6 |
ТРАНСМИССИЯ (72C V-Drive)(2.5:1 Left Hand Rotation) TRANSMISSION (72C V-Drive)(2.5:1 Left Hand Rotation) |
1 | disc. |
| 1 | 60961A8 |
ТРАНСМИССИЯ (72C V-Drive)(2.5:1 Right Hand Rotation) TRANSMISSION (72C V-Drive)(2.5:1 Right Hand Rotation) |
1 | disc. |
| 10 | 60171 |
ВИНТ (0.375-16 x 1.250) SCREW (.375-16 x 1.250) |
2 | |
| 10 | 60169 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | |
| 11 | 805159 |
ВИНТ (0.437-20 x 1.500) (5 and 4 In. Flange) SCREW (.437-20 x 1.500) (5 and 4 In. Flange) |
4 | |
| 12 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) (5 and 4 In. Flange) LOCKWASHER (.437) (5 and 4 In. Flange) |
4 | |
| 13 | 22024 |
ГАЙКА (0.437-14) (5 and 4 In. Flange) NUT (.437-14) (5 and 4 In. Flange) |
4 | |
| 14 | 97477A3 |
КОМПЛЕКТ ШПИЛЕК STUD KIT |
1 | |
| 15 | 18351A1 |
КРОНШТЕЙН В СБОРЕ BRACKET ASSEMBLY |
1 | |
| 16 | 97477A3 |
КОМПЛЕКТ ШПИЛЕК STUD KIT |
1 | |
| 17 | 54615 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
2 | disc. |
| 18 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 19 | 43325 |
РЫЧАГ LEVER |
1 | |
| 2 | 60179 |
ВИНТ (0.437-14 x 3.500) SCREW (.437-14 x 3.500) |
6 | |
| 20 | 20722 |
ШАЙБА (0.328 x 0.625 x 0.060) WASHER (.328 x .625 x .060) |
1 | disc. |
| 21 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
1 | superseded |
| 22 | 22053 |
ГАЙКА (0.312-24) NUT (.312-24) |
1 | |
| 23 | 47613 |
ПЕРЕКЛЮЧАТЕЛЬ Neutral Safety SWITCH Neutral Safety |
1 | |
| 24 | 863842T1 |
ОХЛАДИТЕЛЬ Transmission Oil (In Line 71C and 72C 1.1:1) COOLER Transmission Oil (In Line 71C and 72C 1.1:1) |
1 | superseded |
| 24 | 863832T |
ОХЛАДИТЕЛЬ Transmission Oil (72C 1.5:1 and V-Drive) COOLER Transmission Oil (72C 1.5:1 and V-Drive) |
1 | superseded |
| 25 | 805546A2 |
КРОНШТЕЙН Transmission Oil Cooler BRACKET Transmission Oil Cooler |
1 | |
| 26 | 772233 |
НАКЛАДКА PAD |
1 | |
| 27 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
1 | |
| 28 | 37612 |
ВИНТ (0.375-16 x 1.250) SCREW (.375-16 x 1.250) |
1 | |
| 29 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 3 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
6 | |
| 30 | 97521 |
ЗАЖИМ Double Hose (V-Drive Transmission) CLAMP Double Hose (V-Drive Transmission) |
1 | |
| 31 | 92913 |
ВИНТ (0.437-14 x 0.750) (V-Drive Transmission) SCREW (.437-14 x .750) (V-Drive Transmission) |
1 | |
| 32 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) (V-Drive Transmission) LOCKWASHER (.437) (V-Drive Transmission) |
1 | |
| 33 | 863850 |
КРОНШТЕЙН Cooler BRACKET Cooler |
1 | |
| 34 | 8267088 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 35 | 807445T |
ЗАЖИМ Cooler CLAMP Cooler |
1 | |
| 36 | 881879010 |
ДАТЧИК Pressure SENSOR Pressure |
1 | superseded |
| 4 | 88031 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SWITCH ASSEMBLY |
1 | |
| 5 | 8054782 |
РУКАВ (11.50") Oil (In Line Transmission) HOSE (11.50 Inches) Oil (In Line Transmission) |
1 | |
| 5 | 475169 |
ШЛАНГ В СБОРЕ (37.00") Oil (V-Drive Transmission) HOSE ASSEMBLY (37.00 Inches) Oil (V-Drive Transmission) |
1 | |
| 6 | 8054781 |
РУКАВ (19.50) Oil (In Line Transmission) HOSE (19.50) Oil (In Line Transmission) |
1 | |
| 6 | 4751613 |
РУКАВ (49.00") Oil (V-Drive Transmission) HOSE (49.00 Inches) Oil (V-Drive Transmission) |
1 | |
| 7 | 88517 |
ФИТИНГ Редуктор Straight FITTING Reducing Straight |
1 | |
| 7 | 63835 |
КОЛЕНЧАТЫЙ 45 градусов ELBOW 45 Degree |
1 | |
| 8 | 47629 |
КОЛЕНЧАТЫЙ 90 градусов ELBOW 90 Degree |
1 | |
| 9 | 79476A1 |
ФЛАНЕЦ В СБОРЕ (5.00 x 1.00) FLANGE ASSEMBLY (5.00 x 1.00) |
OPT | disc. |
| 9 | 79476A3 |
ФЛАНЕЦ В СБОРЕ (5.00 x 1.25) FLANGE ASSEMBLY (5.00 x 1.25) |
OPT | disc. |
| 9 | 79476A4 |
ФЛАНЕЦ В СБОРЕ (5.00 x 1.375) FLANGE ASSEMBLY (5.00 x 1.375) |
OPT | |
| 9 | 79476A5 |
ФЛАНЕЦ В СБОРЕ (5.00 x 1.50) FLANGE ASSEMBLY (5.00 x 1.50) |
OPT | |
| 9 | 79476A6 |
ФЛАНЕЦ В СБОРЕ (5.00 x 1.75) FLANGE ASSEMBLY (5.00 x 1.75) |
OPT |
