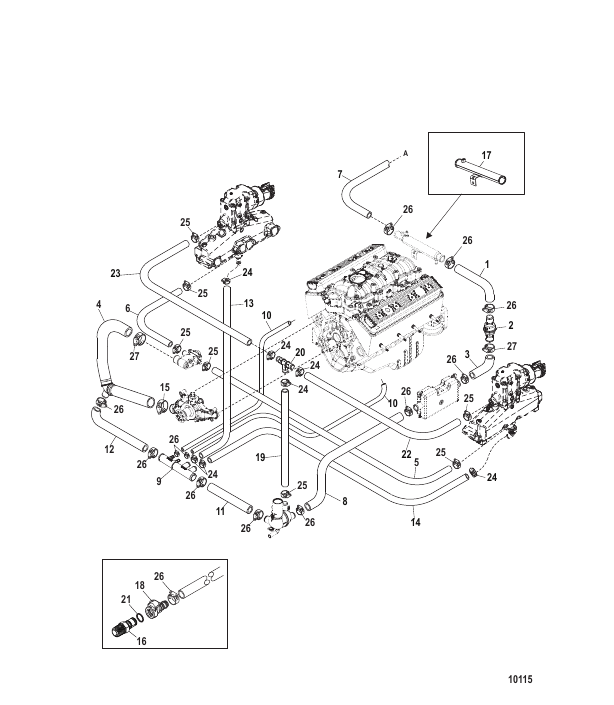

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863489 |
РУКАВ Power Steering Cooler to Check Valve HOSE Power Steering Cooler to Check Valve |
1 | |
| 10 | 8623175 |
РУКАВ Cylinder Block Drain to Distribution Fitting Port Cut to 23 Inches, Starboard 17 Inches HOSE Cylinder Block Drain to Distribution Fitting Port Cut to 23 Inches, Starboard 17 Inches |
2 | superseded |
| 11 | 863490 |
РУКАВ Water Drain Accumulator to Distribution Fitting HOSE Water Drain Accumulator to Distribution Fitting |
1 | |
| 12 | 863491 |
РУКАВ Distribution Fitting to "Y" Fitting HOSE Distribution Fitting to "Y" Fitting |
1 | |
| 13 | 4285069 |
РУКАВ (Общая длина 44.00") Starboard Manifold to Distribution Fitting Cut to 22 Inch Length HOSE (44.00 Inches Bulk) Starboard Manifold to Distribution Fitting Cut to 22 Inch Length |
1 | superseded |
| 14 | 4285069 |
РУКАВ (Общая длина 44.00") Port Manifold to Distribution Fitting Cut to 31 Inch Length HOSE (44.00 Inches Bulk) Port Manifold to Distribution Fitting Cut to 31 Inch Length |
1 | superseded |
| 15 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
AR | |
| 16 | 862603 |
ФИТИНГ Male Quick Connector, Threaded FITTING Male Quick Connector, Threaded |
2 | superseded |
| 17 | 863841T |
ТРУБА Вода Brass Compact Hydraulic Steering TUBE Water Brass Compact Hydraulic Steering |
1 | |
| 18 | 862225 |
ФИТИНГ Pushlock FITTING Pushlock |
4 | |
| 19 | 863465 |
РУКАВ Drain Accumulator to Tee Fitting HOSE Drain Accumulator to Tee Fitting |
1 | |
| 2 | 864206A1 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | |
| 20 | 863464A1 |
ФИТИНГИ В СБОРЕ Alpha Only FITTING ASSEMBLY Alpha Only |
1 | superseded |
| 21 | 627021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
2 | |
| 22 | 864560 |
РУКАВ Tee Fitting to Port Elbow Non Riser, 1.7 inch and 3 Inch Riser HOSE Tee Fitting to Port Elbow Non Riser, 1.7 inch and 3 Inch Riser |
1 | |
| 22 | 864965 |
РУКАВ Tee Fitting to Port Elbow 4.7 Inch and 6 Inch Riser HOSE Tee Fitting to Port Elbow 4.7 Inch and 6 Inch Riser |
1 | disc. |
| 23 | 864561 |
РУКАВ Tee Fitting to Starboard Elbow Non Riser, 1.7 inch and 3 Inch Riser HOSE Tee Fitting to Starboard Elbow Non Riser, 1.7 inch and 3 Inch Riser |
1 | |
| 23 | 864966 |
РУКАВ Tee Fitting to Starboard Elbow 4.7 Inch and 6 Inch Riser HOSE Tee Fitting to Starboard Elbow 4.7 Inch and 6 Inch Riser |
1 | |
| 24 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 25 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
AR | |
| 26 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) CLAMP Worm Gear (1.98 DIameter) |
2 | superseded |
| 27 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 3 | 863623 |
РУКАВ Check Valve to Fuel Cooler HOSE Check Valve to Fuel Cooler |
1 | |
| 4 | 863456A1 |
ШЛАНГ В СБОРЕ Thermostat Housing to Circulating Pump HOSE ASSEMBLY Thermostat Housing to Circulating Pump |
1 | |
| 5 | 863458 |
РУКАВ Thermostat Housing to Port Manifold HOSE Thermostat Housing to Port Manifold |
1 | |
| 6 | 863459 |
РУКАВ Thermostat Housing to Starboard Manifold HOSE Thermostat Housing to Starboard Manifold |
1 | |
| 7 | 807661 |
РУКАВ Transom Assembly to Power Steering Cooler Alpha HOSE Transom Assembly to Power Steering Cooler Alpha |
1 | |
| 8 | 863670 |
РУКАВ Fuel Cooler to Water Distribution Housing HOSE Fuel Cooler to Water Distribution Housing |
1 | |
| 9 | 864621A1 |
ФИТИНГИ В СБОРЕ Lower Distribution FITTING ASSEMBLY Lower Distribution |
1 | |
| NS | 864327 |
ВТУЛКА Orifice Alpha Only BUSHING Orifice Alpha Only |
1 | disc. |
| NS | 864353 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Alpha Only O-RING Alpha Only |
1 | disc. |
