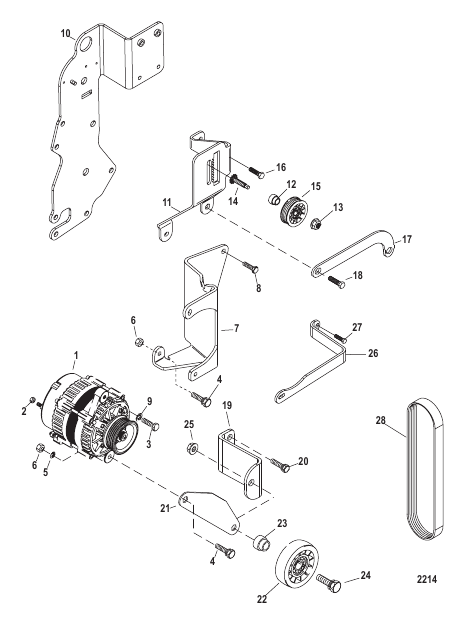

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863077T |
ГЕНЕРАТОР В СБОРЕ Черный 65 Amp With 50mm Pulley Non Serviceable ALTERNATOR ASSEMBLY Black 65 Amp With 50mm Pulley Non Serviceable |
1 | |
| 10 | 865188T01 |
КРОНШТЕЙН Without Air Actuated Drain BRACKET Without Air Actuated Drain |
1 | |
| 10 | 865188T |
КРОНШТЕЙН With Air Actuated Drain BRACKET With Air Actuated Drain |
1 | |
| 11 | 862083T |
КРОНШТЕЙН Idler Adjustment BRACKET Idler Adjustment |
1 | |
| 12 | 865193 |
ВТУЛКА BUSHING |
1 | |
| 13 | 859135 |
ГАЙКА (0.437-20), с латунным/никелевым покрытием NUT (.437-20) Brass/Nickel Plated |
1 | |
| 14 | 8183812 |
ШПИЛЬКА ШЕСТЕРНИ (.437-20), нержавеющая сталь PINION STUD (.437-20) Stainless Steel |
1 | superseded |
| 15 | 864625T |
ШКИВ (4.25 Inch Diameter) With Power Steering PULLEY (4.25 Inch Diameter) With Power Steering |
1 | |
| 15 | 807757T |
ШКИВ В СБОРЕ Холостой ролик – черный (3.00 Inch Diameter) Compact Hydralic Steering PULLEY ASSEMBLY Idler - Black (3.00 Inch Diameter) Compact Hydralic Steering |
1 | |
| 16 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 | |
| 17 | 862082T |
СКОБА Power Steering BRACE Power Steering |
1 | |
| 18 | 40001188 |
ВИНТ (M10 x 20) SCREW (M10 x 20) |
1 | disc. |
| 19 | 864456T |
КРОНШТЕЙН Alternator Brace Bravo, Alpha-Closed Cooling BRACKET Alternator Brace Bravo, Alpha-Closed Cooling |
1 | |
| 2 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 20 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
1 | |
| 21 | 862085T |
СКОБА Idler Bracket Bravo, Alpha-Closed Cooling BRACE Idler Bracket Bravo, Alpha-Closed Cooling |
1 | |
| 22 | 865598 |
ШКИВ Bravo, Alpha-Closed Cooling PULLEY Bravo, Alpha-Closed Cooling |
1 | superseded |
| 23 | 865193 |
ВТУЛКА Bravo, Alpha-Closed Cooling BUSHING Bravo, Alpha-Closed Cooling |
1 | |
| 24 | 56393 |
ВИНТ (0.437-20 x 1.75) Bravo, Alpha-Closed Cooling SCREW (.437-20 x 1.75) Bravo, Alpha-Closed Cooling |
1 | |
| 25 | 859135 |
ГАЙКА (0.437-20), с латунным/никелевым покрытием Bravo, Alpha-Closed Cooling NUT (.437-20) Brass/Nickel Plated Bravo, Alpha-Closed Cooling |
1 | |
| 26 | 862778 |
КРОНШТЕЙН Alternator Brace BRACKET Alternator Brace |
1 | |
| 27 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
1 | |
| 28 | 865615004 |
РЕМЕНЬ Standard Cooling, Alpha, With Power Steering BELT Standard Cooling, Alpha, With Power Steering |
1 | superseded |
| 28 | 865615009 |
РЕМЕНЬ Standard Cooling, Alpha, CHS and Non Power Steering BELT Standard Cooling, Alpha, CHS and Non Power Steering |
1 | superseded |
| 28 | 865615003 |
РЕМЕНЬ Standard Cooling, Bravo, With Power Steering BELT Standard Cooling, Bravo, With Power Steering |
1 | superseded |
| 28 | 865615008 |
РЕМЕНЬ Standard Cooling, Bravo, CHS and Non Power Steering BELT Standard Cooling, Bravo, CHS and Non Power Steering |
1 | superseded |
| 28 | 865615Q01 |
РЕМЕНЬ Поликлиновый Standard Cooling, Axius BELT Serpentine Standard Cooling, Axius |
1 | |
| 28 | 865615006 |
РЕМЕНЬ Alpha/Bravo,Closed Cooling, With Power Steering BELT Alpha/Bravo,Closed Cooling, With Power Steering |
1 | superseded |
| 28 | 865615008 |
РЕМЕНЬ Alpha/Bravo, Closed Cooling, CHS and Non Power Steering BELT Alpha/Bravo, Closed Cooling, CHS and Non Power Steering |
1 | superseded |
| 28 | 879194Q01 |
РЕМЕНЬ Поликлиновый Axius, Closed Cooling BELT Serpentine Axius, Closed Cooling |
1 | superseded |
| 3 | 40001134 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
1 | |
| 4 | 828213 |
ВИНТ Шестигранный фланец (0.312-18 x 1.500) SCREW (.312-18 x 1.500) Hex Flange |
2 | |
| 5 | 57792 |
ШАЙБА WASHER |
2 | |
| 6 | 26484 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 7 | 863211T01 |
КРОНШТЕЙН Alternator Mounting BRACKET Alternator Mounting |
1 | |
| 8 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | |
| 9 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
1 |
