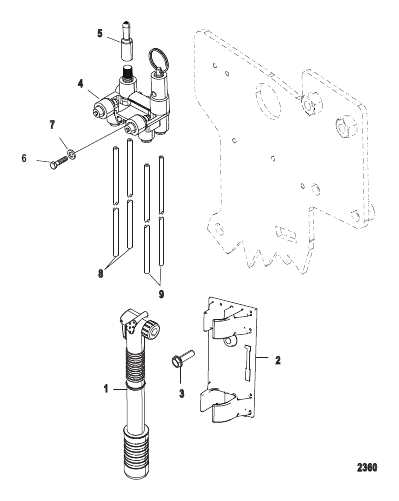

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863057 |
НАСОС PUMP |
1 | |
| 2 | 8634741 |
КРОНШТЕЙН Air Pump (Bravo Standard Cooling) BRACKET Air Pump (Bravo Standard Cooling) |
1 | |
| 2 | 8634742 |
КРОНШТЕЙН Air Pump (Bravo Closed Cooling) BRACKET Air Pump (Bravo Closed Cooling) |
1 | |
| 3 | 40011106 |
ВИНТ (M5 x 13), нержавеющая сталь (Bravo Standard Cooling) SCREW (M5 x 13) Stainless Steel (Bravo Standard Cooling) |
1 | |
| 4 | 863053T |
ВПУСКНОЙ КОЛЛЕКТОР Air MANIFOLD ASSEMBLY Air |
1 | |
| 5 | 883503 |
ПРОБКА Service Point CAP Service Point |
1 | |
| 6 | 40007112 |
ВИНТ (M5 x 40) SCREW (M5 x 40) |
2 | |
| 7 | 4002314 |
ШАЙБА WASHER |
2 | |
| 8 | 8630552 |
РУКАВ (Общая длина 40.00"), зеленый (Cut to 32 Inch Length) HOSE (40.00 Inches Bulk) Green (Cut to 32 Inch Length) |
2 | superseded |
| 9 | 8630542 |
РУКАВ (Общая длина 40.00"), серый (Cut to 32 Inch Lenght) HOSE (40.00 Inches Bulk) Grey (Cut to 32 Inch Lenght) |
2 | superseded |
| NS | 8630561 |
РУКАВ (Общая длина 42.00"), черный (Cut to 28 Inch Length) HOSE (42.00 Inches Bulk) Black (Cut to 28 Inch Length) |
2 |
