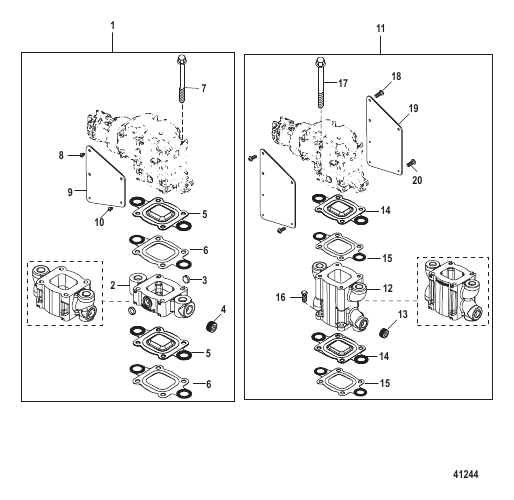

Exhaust Risers
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 865995A01 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА 1.7 Inch (Standard Cooling) RISER EXTENSION KIT 1.7 Inch (Standard Cooling) |
1 | |
| 1 | 865996A01 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА 1.7 Inch (Closed Cooling) RISER EXTENSION KIT 1.7 Inch (Closed Cooling) |
1 | |
| 1 | 864929A3 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА 3.0 Inch (Standard Cooling) RISER EXTENSION KIT 3.0 Inch (Standard Cooling) |
1 | |
| 1 | 864929A4 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА 3.0 Inch (Closed Cooling) RISER EXTENSION KIT 3.0 Inch (Closed Cooling) |
1 | |
| 10 | 864378 |
ВИНТ (0.250-20 x 0.375), Torx SCREW (.250-20 x .375) Torx |
1 | |
| 11 | 866208A02 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА 4.7" (Standard Cooling) RISER EXTENSION KIT 4.7 Inch (Standard Cooling) |
1 | |
| 11 | 866208A03 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА 4.7" (Closed Cooling) RISER EXTENSION KIT 4.7 Inch (Closed Cooling) |
1 | |
| 11 | 864908A1 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА 6.0 Inch (Standard Cooling) RISER EXTENSION KIT 6.0 Inch (Standard Cooling) |
1 | |
| 11 | 864908A2 |
КОМПЛЕКТ УДЛИНИТЕЛЯ ПАТРУБКА 6.0 Inch (Closed Cooling) RISER EXTENSION KIT 6.0 Inch (Closed Cooling) |
1 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО 4.7 Inch or 6 Inch Riser NOT SOLD SEPARATE 4.7 Inch or 6 Inch Riser |
2 | |
| 13 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
2 | superseded |
| 14 | 864850A02 |
ПРОКЛАДКА Restrictor GASKET Restrictor |
2 | |
| 14 | 864549A02 |
ПРОКЛАДКА Block Off GASKET Block Off |
2 | |
| 15 | 864547A02 |
ПРОКЛАДКА Full Flow GASKET Full Flow |
2 | |
| 16 | 865982005 |
ВИНТ (0.375-16 x 1.00) 6 Inch Riser SCREW (.375-16 x 1.00) 6 Inch Riser |
8 | |
| 17 | 865982092 |
ВИНТ (0.375-16 x 12.380) 4.7 Inch Riser SCREW (.375-16 x 12.380) 4.7 Inch Riser |
8 | |
| 17 | 865982057 |
ВИНТ (0.375-16 x 7.50) 6 Inch - Not included in Riser Kit SCREW (.375-16 x 7.50) 6 Inch - Not included in Riser Kit |
OPT | superseded |
| 18 | 860008 |
ВИНТ (0.250-20 x 0.625), Torx SCREW (.250-20 x .625) Torx |
6 | |
| 19 | 863715T01 |
КРОНШТЕЙН BRACKET |
2 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО 1.7 Inch or 3 Inch Riser NOT SOLD SEPARATE 1.7 Inch or 3 Inch Riser |
2 | |
| 20 | 864378 |
ВИНТ (0.250-20 x 0.375), Torx SCREW (.250-20 x .375) Torx |
1 | |
| 3 | 864689 |
ПРОБКА Расширитель 1.7 Inch Riser PLUG Expansion 1.7 Inch Riser |
2 | |
| 4 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
2 | superseded |
| 5 | 864850A02 |
ПРОКЛАДКА Restrictor GASKET Restrictor |
2 | |
| 5 | 864549A02 |
ПРОКЛАДКА Block Off GASKET Block Off |
2 | |
| 6 | 864547A02 |
ПРОКЛАДКА Full Flow GASKET Full Flow |
2 | |
| 7 | 865982071 |
ВИНТ (0.375-16 x 9.250) 1.7 Inch Riser SCREW (.375-16 x 9.250) 1.7 Inch Riser |
8 | superseded |
| 7 | 865982077 |
ВИНТ (0.375-16 x 10.500) 3 Inch Riser SCREW (.375-16 x 10.500) 3 Inch Riser |
8 | |
| 8 | 860008 |
ВИНТ (0.250-20 x 0.625), Torx SCREW (.250-20 x .625) Torx |
1 | |
| 9 | 863714T01 |
КРОНШТЕЙН BRACKET |
1 |
