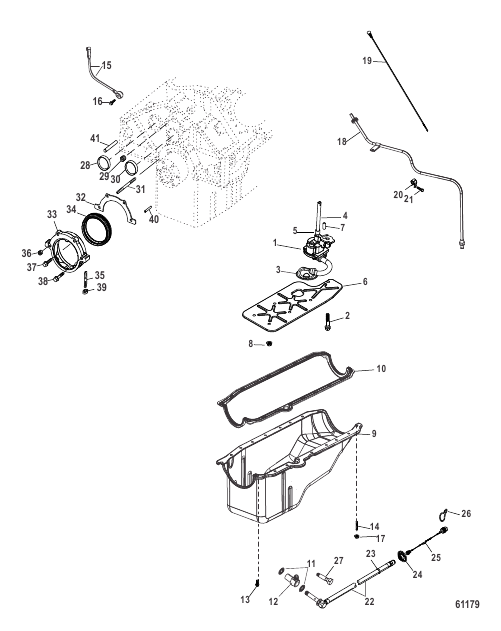

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 807756A02 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| - | 879150A31 |
ЛОНГ-БЛОК (4.3L) LONG BLOCK (4.3L) |
1 | disc. |
| 1 | 809907002 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | |
| 10 | 14247T02 |
КОМПЛЕКТ ПРОКЛАДОК Oil Pan GASKET SET Oil Pan |
1 | |
| 11 | 49955 |
ПРОКЛАДКА Drain Screw GASKET Drain Screw |
2 | superseded |
| 12 | 862813 |
ФИТИНГ Tee FITTING Tee |
1 | |
| 13 | 726071 |
ВИНТ (5/16-18x x 0.875) SCREW (5/16-18x x .875) |
10 | |
| 14 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) STUD (.312-18 x 1.6718) |
2 | |
| 15 | 878187 |
ДАТЧИК В СБОРЕ Детонационное сгорание SENSOR ASSEMBLY Knock |
1 | superseded |
| 16 | F430732 |
ВИНТ (0.312-18 x 1.250), нержавеющая сталь SCREW (.312-18 x 1.250) Stainless Steel |
1 | |
| 17 | 11971 |
ГАЙКА (0.312-18) NUT (.312-18) |
4 | superseded |
| 18 | 864928A1 |
ТРУБА Dipstick (Closed Cooling) TUBE Dipstick (Closed Cooling) |
1 | |
| 18 | 865178 |
ТРУБА Dipstick (Standard Cooling) TUBE Dipstick (Standard Cooling) |
1 | |
| 19 | 86194214 |
ЩУП (Closed Cooling) DIPSTICK (Closed Cooling) |
1 | |
| 19 | 86194216 |
ЩУП (Standard Cooling) DIPSTICK (Standard Cooling) |
1 | |
| 2 | 17346 |
ВИНТ Oil Pump SCREW Oil Pump |
1 | |
| 20 | 8054441 |
ЗАЖИМ Dipsitck Tube CLIP Dipsitck Tube |
1 | |
| 21 | 35366 |
ВИНТ SCREW |
1 | superseded |
| 22 | 865278 |
РУКАВ Oil Drain [1A343328] & Below HOSE Oil Drain [1A343328] & Below |
1 | |
| 22 | 865279 |
РУКАВ Oil Drain (Jackshaft Models) [1A343328] & Below HOSE Oil Drain (Jackshaft Models) [1A343328] & Below |
1 | |
| 23 | 863481 |
ЗАЖИМ Ty Strap [1A343328] & Below CLAMP Ty Strap [1A343328] & Below |
1 | |
| 24 | 862777 |
ФЛАНЕЦ Drain [1A343328] & Below FLANGE Drain [1A343328] & Below |
1 | |
| 25 | 862827 |
ТРОС В СБОРЕ [1A343328] & Below TETHER ASSEMBLY [1A343328] & Below |
1 | |
| 26 | 805524 |
ЗАЖИМ [1A343328] & Below CLIP [1A343328] & Below |
1 | |
| 27 | 8M2016778 |
ФИТИНГ Кожух [1A343329] & Up FITTING Banjo [1A343329] & Up |
1 | |
| 28 | 34270 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА (1.625) Engine Core Hole EXPANSION PLUG (1.625) Engine Core Hole |
8 | |
| 29 | 48358 |
ПРОБКА (0.375) Oil Galley PLUG (.375) Oil Galley |
3 | superseded |
| 3 | 8099081 |
ЭКРАН Oil Pump Pick-Up SCREEN Oil Pump Pick-Up |
1 | |
| 30 | 72640 |
ПРОБКА Expansion, Camshaft Bearing Hole PLUG Expansion, Camshaft Bearing Hole |
1 | |
| 31 | 148271 |
ШПИЛЬКА STUD |
2 | disc. |
| 32 | 881715 |
ПРОКЛАДКА Crankshaft Oil Seal Housing GASKET Crankshaft Oil Seal Housing |
1 | |
| 33 | 804910001 |
ФИКСАТОР Crankshaft Oil Seal RETAINER Crankshaft Oil Seal |
1 | |
| 34 | 879194364 |
УПЛОТНЕНИЕ Crankshaft Oil SEAL Crankshaft Oil |
1 | |
| 35 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) STUD (.312-18 x 1.6718) |
2 | |
| 36 | 8167301 |
ГАЙКА NUT |
1 | superseded |
| 37 | 14242 |
БОЛТ (0.250-20 x 0.875) BOLT (.250-20 x .875) |
2 | |
| 38 | 14243 |
БОЛТ (0.250-20 x 1.750) BOLT (.250-20 x 1.750) |
1 | superseded |
| 39 | 11971 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 4 | 36184 |
ВАЛ SHAFT |
1 | |
| 40 | 14263 |
ШТИФТ Штифт Oil Seal Housing Location PIN Dowel Oil Seal Housing Location |
1 | |
| 41 | 43504 |
ШТИФТ Штифт Flywheel Housing Location PIN Dowel Flywheel Housing Location |
1 | |
| 5 | 36183 |
ФИКСАТОР RETAINER |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Oil Deflector Included with Pan NOT SOLD SEPARATE Oil Deflector Included with Pan |
1 | |
| 7 | 843378 |
ШТИФТ Штифт Alignment,Oil Pump PIN Dowel Alignment,Oil Pump |
1 | |
| 8 | 845602 |
ГАЙКА (.375-16) NUT (.375-16) |
5 | |
| 9 | 804912T02 |
ПОДДОН Масло PAN Oil |
1 | disc. |
