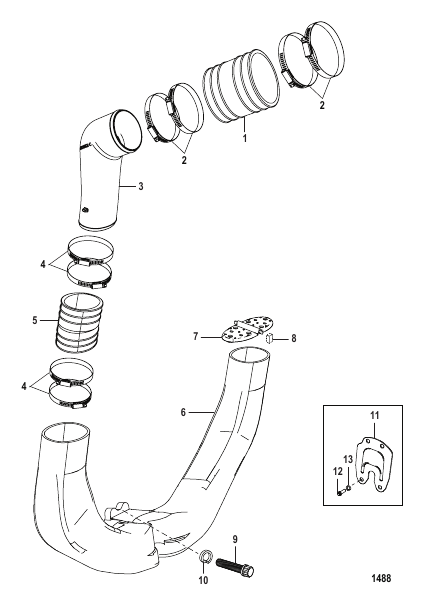

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 44348001 |
ТРУБА Выхлоп Exhaust TUBE Exhaust Exhaust |
1 | superseded |
| 10 | 41471 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
4 | |
| 11 | 861776A2 |
КОМПЛЕКТ ПЛАСТИН (Through Transom Exhaust) PLATE KIT (Through Transom Exhaust) |
1 | |
| 12 | 98794 |
ВИНТ (0.375-16 x 1.00) (Through Transom Exhaust) SCREW (.375-16 x 1.00) (Through Transom Exhaust) |
4 | superseded |
| 13 | 41471 |
СТОПОРНАЯ ШАЙБА (0.375) (Through Transom Exhaust) LOCKWASHER (.375) (Through Transom Exhaust) |
4 | |
| 2 | 815504272 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
8 | |
| 3 | 865947A01 |
КОЛЕНЧАТЫЙ (Non Riser) ELBOW (Non Riser) |
1 | |
| 3 | 866000A01 |
КОЛЕНЧАТЫЙ (1.7 Inch Riser) ELBOW (1.7 Inch Riser) |
1 | |
| 3 | 866001A01 |
КОЛЕНЧАТЫЙ (3 Inch Riser) ELBOW (3 Inch Riser) |
1 | |
| 3 | 865949A01 |
КОЛЕНЧАТЫЙ (4.7 Inch Riser) ELBOW (4.7 Inch Riser) |
1 | |
| 3 | 866002A01 |
КОЛЕНЧАТЫЙ (6 Inch Riser) ELBOW (6 Inch Riser) |
1 | |
| 4 | 815504272 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
8 | |
| 5 | 14358001 |
ТРУБА Выхлоп Exhaust TUBE Exhaust Exhaust |
1 | superseded |
| 6 | 807130A4 |
ТРУБА Exhaust PIPE Exhaust |
1 | superseded |
| 7 | 807166A1 |
ЗАСЛОНКА В СБОРЕ Вода SHUTTER ASSEMBLY Water |
2 | |
| 8 | 807167 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | superseded |
| 9 | 58640 |
ВИНТ (0.375-16 x 1.25) SCREW (.375-16 x 1.25) |
4 | superseded |
| NS | 8079923 |
КРЫШКА Hose Clamp End COVER Hose Clamp End |
AR | superseded |
