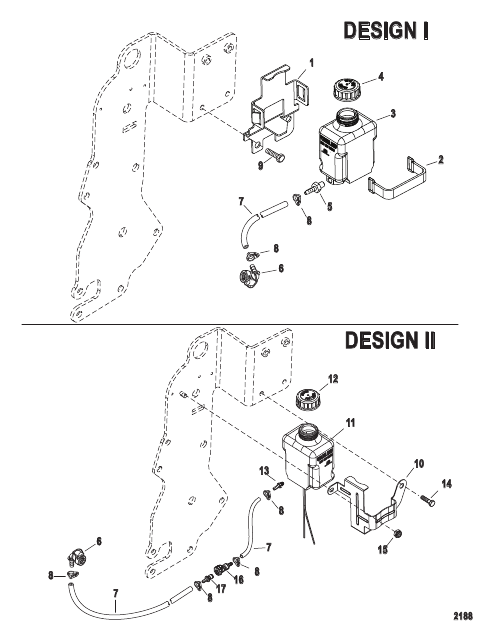

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 860065A1 |
КОМПЛЕКТ КРОНШТЕЙНА Oil Bottle - Lube Monitor Reservoir (Design I)(All)(Closed Cooling) [0M640000] THRU [0M639999] BRACKET KIT Oil Bottle - Lube Monitor Reservoir (Design I)(All)(Closed Cooling) [0M640000] THRU [0M639999] |
1 | |
| 10 | 865175T |
КРОНШТЕЙН Lube Monitor Reservoir (Design II)(Standard Cooling) [0M640000] & Up BRACKET Lube Monitor Reservoir (Design II)(Standard Cooling) [0M640000] & Up |
1 | |
| 11 | 806193A37 |
РЕЗЕРВУАР Lube Monitor (Design II)(Standard Cooling) [0M640000] & Up RESERVOIR Lube Monitor (Design II)(Standard Cooling) [0M640000] & Up |
1 | superseded |
| 12 | 8067271 |
ПРОБКА Монитор смазки привода Lube Reservoir CAP Drive Lube Monitor Lube Reservoir |
1 | |
| 13 | 808624 |
СОЕДИНИТЕЛЬ Lube Reservoir CONNECTOR Lube Reservoir |
1 | |
| 14 | 828552 |
ВИНТ (0.375-16 x 0.500) SCREW (.375-16 x .500) |
1 | |
| 15 | 8267098 |
ГАЙКА (0.250-20), нержавеющая сталь NUT (.250-20) Stainless Steel |
1 | |
| 16 | 865190 |
СОЕДИНИТЕЛЬ Гнездо Female [0M640000] & Up CONNECTOR Female Female [0M640000] & Up |
1 | superseded |
| 17 | 865191 |
ФИТИНГ Вилка Male [0M640000] & Up FITTING Male Male [0M640000] & Up |
1 | |
| 2 | 808023T |
СКОБА Bracket - Reservoir Retainer STRAP Bracket - Reservoir Retainer |
1 | |
| 3 | 806193A36 |
РЕЗЕРВУАР Lube Monitor (Design I)(All)(Closed Cooling) [0M640000] THRU [0M639999] RESERVOIR Lube Monitor (Design I)(All)(Closed Cooling) [0M640000] THRU [0M639999] |
1 | superseded |
| 4 | 8067271 |
ПРОБКА Монитор смазки привода Lube Reservoir CAP Drive Lube Monitor Lube Reservoir |
1 | |
| 5 | 808624 |
СОЕДИНИТЕЛЬ Lube Reservoir CONNECTOR Lube Reservoir |
1 | |
| 6 | 861163 |
БЫСТРОРАЗЪЕМНОЕ СОЕДИНЕНИЕ (90 градусов) To Transom QUICK CONNECTOR (90 Degree) To Transom |
1 | |
| 7 | 1940971 |
РУКАВ (Общая длина 54.00") (.25 Inch I.D. x 54 Inch Long) HOSE (54.00 Inches Bulk) (.25 Inch I.D. x 54 Inch Long) |
1 | superseded |
| 8 | 415825 |
ЗАЖИМ Нейлон Hose CLAMP Nylon Hose |
A/R | |
| 9 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 |
