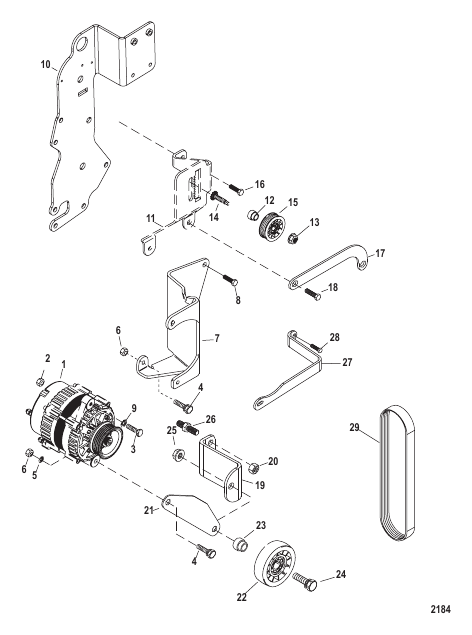

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863077T |
ГЕНЕРАТОР В СБОРЕ Черный 65 Amp With 50mm Pulley (Non Serviceable) ALTERNATOR ASSEMBLY Black 65 Amp With 50mm Pulley (Non Serviceable) |
1 | |
| 10 | 864922T01 |
КРОНШТЕЙН [0M639999] & Below BRACKET [0M639999] & Below |
1 | superseded |
| 10 | 865188T01 |
КРОНШТЕЙН [0M640000] & Up BRACKET [0M640000] & Up |
1 | |
| 11 | 862083T |
КРОНШТЕЙН Idler Adjusting BRACKET Idler Adjusting |
1 | |
| 12 | 818380T |
ВТУЛКА BUSHING |
1 | superseded |
| 13 | 859135 |
ГАЙКА (0.437-20), с латунным/никелевым покрытием NUT (.437-20) Brass/Nickel Plated |
1 | |
| 14 | 8183812 |
ШПИЛЬКА ШЕСТЕРНИ (.437-20), нержавеющая сталь PINION STUD (.437-20) Stainless Steel |
1 | superseded |
| 15 | 864625T |
ШКИВ (4.25 Inch Diameter) PULLEY (4.25 Inch Diameter) |
1 | |
| 16 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 | |
| 17 | 862082T |
СКОБА Power Steering BRACE Power Steering |
1 | |
| 18 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
3 | |
| 19 | 862084T |
КРОНШТЕЙН Промежуточная шестерня Alternator Brace (Bravo Standard Cooling) BRACKET Idler Alternator Brace (Bravo Standard Cooling) |
1 | |
| 19 | 864456T |
КРОНШТЕЙН Alternator Brace (Alpha/Bravo Closed Cooling) BRACKET Alternator Brace (Alpha/Bravo Closed Cooling) |
1 | |
| 2 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 20 | 32219 |
ГАЙКА (.375-16) (Bravo Standard Cooling) NUT (.375-16) (Bravo Standard Cooling) |
2 | |
| 20 | 82671112 |
ГАЙКА (.375-16) (Alpha/Bravo Closed Cooling) NUT (.375-16) (Alpha/Bravo Closed Cooling) |
1 | |
| 21 | 862085T |
СКОБА Idler Bracket (Bravo) (Alpha Closed Cooling) BRACE Idler Bracket (Bravo) (Alpha Closed Cooling) |
1 | |
| 22 | 818382 |
ШКИВ (Bravo) (Alpha Closed Cooling) PULLEY (Bravo) (Alpha Closed Cooling) |
1 | superseded |
| 23 | 818380T |
ВТУЛКА (Bravo) (Alpha Closed Cooling) BUSHING (Bravo) (Alpha Closed Cooling) |
1 | superseded |
| 24 | 56393 |
ВИНТ (0.437-20 x 1.75) (Bravo) (Alpha Closed Cooling) SCREW (.437-20 x 1.75) (Bravo) (Alpha Closed Cooling) |
1 | |
| 25 | 859135 |
ГАЙКА (0.437-20), с латунным/никелевым покрытием (Bravo) (Alpha Closed Cooling) NUT (.437-20) Brass/Nickel Plated (Bravo) (Alpha Closed Cooling) |
1 | |
| 26 | 860102 |
ШПИЛЬКА (0.375-16 x 1.730) (Bravo Standard Cooling) STUD (.375-16 x 1.730) (Bravo Standard Cooling) |
2 | |
| 26 | 863853 |
ШПИЛЬКА (Alpha/Bravo Closed Cooling) STUD (Alpha/Bravo Closed Cooling) |
1 | |
| 26 | 32132 |
ВИНТ (0.375-16 x 1.750) (Alpha/Bravo Closed Cooling) SCREW (.375-16 x 1.750) (Alpha/Bravo Closed Cooling) |
1 | |
| 27 | 862778 |
КРОНШТЕЙН Alternator Brace (Alpha Standard Cooling) BRACKET Alternator Brace (Alpha Standard Cooling) |
1 | |
| 28 | 34353 |
ВИНТ (0.375-16 x 1.00) (Alpha Standard Cooling) SCREW (.375-16 x 1.00) (Alpha Standard Cooling) |
1 | |
| 29 | 8638764 |
РЕМЕНЬ Поликлиновый Serpentine (Alpha)(Power Steering) BELT Serpentine Serpentine (Alpha)(Power Steering) |
1 | superseded |
| 29 | 8638769 |
РЕМЕНЬ Поликлиновый Serpentine (Alpha)(Compact Hydraulic Steering) BELT Serpentine Serpentine (Alpha)(Compact Hydraulic Steering) |
1 | superseded |
| 29 | 8638763 |
РЕМЕНЬ Поликлиновый Serpentine (Bravo)(Power Steering) BELT Serpentine Serpentine (Bravo)(Power Steering) |
1 | superseded |
| 29 | 8638768 |
РЕМЕНЬ Поликлиновый Serpentine (Bravo)(Compact Hydraulic Steering) BELT Serpentine Serpentine (Bravo)(Compact Hydraulic Steering) |
1 | superseded |
| 3 | 40001134 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
1 | |
| 4 | 828213 |
ВИНТ Шестигранный фланец (0.312-18 x 1.500) SCREW (.312-18 x 1.500) Hex Flange |
2 | |
| 5 | 57792 |
ШАЙБА WASHER |
2 | |
| 6 | 859119 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 7 | 863211T01 |
КРОНШТЕЙН Alternator Mounting BRACKET Alternator Mounting |
1 | |
| 8 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | |
| 9 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
1 |
