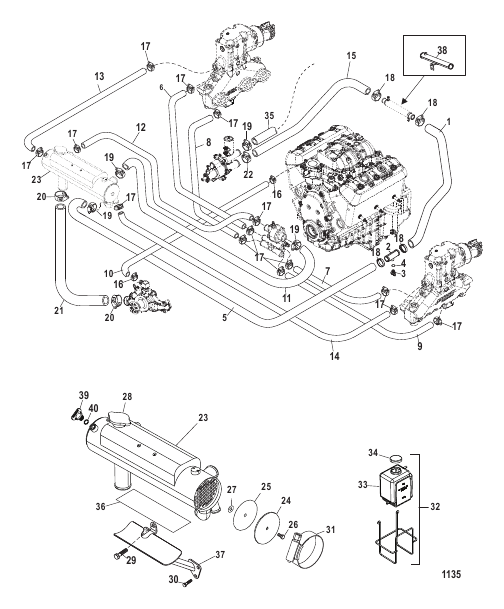

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 808045 |
РУКАВ Fuel Cooler to Transmission Oil Cooler HOSE Fuel Cooler to Transmission Oil Cooler |
1 | |
| 10 | 865529 |
РУКАВ Intake Bypass to Circulating Pump HOSE Intake Bypass to Circulating Pump |
1 | |
| 11 | 864436 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 12 | 864437 |
РУКАВ Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 13 | 864532 |
РУКАВ Heat Exchanger to Starboard Elbow (Without Riser) HOSE Heat Exchanger to Starboard Elbow (Without Riser) |
1 | |
| 13 | 864934 |
РУКАВ Heat Exchanger to Starboard Elbow (With Riser) HOSE Heat Exchanger to Starboard Elbow (With Riser) |
1 | |
| 14 | 864726 |
РУКАВ Heat Exchanger to Port Elbow (Without Riser) HOSE Heat Exchanger to Port Elbow (Without Riser) |
1 | |
| 14 | 864932 |
РУКАВ Heat Exchanger to Port Elbow (With Riser) HOSE Heat Exchanger to Port Elbow (With Riser) |
1 | |
| 15 | 8636111 |
РУКАВ Sea Pump to Power Steering Cooler HOSE Sea Pump to Power Steering Cooler |
1 | disc. |
| 16 | 815504212 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
2 | |
| 17 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) Hose CLAMP Worm Gear (1.56 Diameter) Hose |
AR | |
| 18 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) Hose CLAMP Worm Gear (1.98 DIameter) Hose |
AR | superseded |
| 19 | 815504228 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
AR | |
| 2 | 861505 |
ФИТИНГ Drain Assembly FITTING Drain Assembly |
1 | |
| 20 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) Hose CLAMP Worm Gear (2.50 Diameter) Hose |
AR | |
| 21 | 864886 |
РУКАВ Heat Exchanger to Circulating Pump HOSE Heat Exchanger to Circulating Pump |
1 | |
| 22 | 815504224 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
AR | |
| 23 | 864395T01 |
ТЕПЛООБМЕННИК Closed Cooling HEAT EXCHANGER Closed Cooling |
1 | |
| 24 | 864708 |
КРЫШКА COVER End Cap |
2 | |
| 25 | 866152 |
УПЛОТНЕНИЕ End Cover SEAL End Cover |
2 | superseded |
| 26 | 814877 |
БОЛТ BOLT |
2 | disc. |
| 27 | 814878 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Специальный O-RING Special |
2 | superseded |
| 28 | 8148791 |
ПРОБКА Pressure CAP Pressure |
1 | |
| 29 | 805559 |
ВИНТ (0.375-16 x 0.875), нержавеющая сталь SCREW (.375-16 x .875) Stainless Steel |
1 | |
| 3 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | superseded |
| 30 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
1 | |
| 31 | 815504396 |
ЗАЖИМ Червячная передача Heat Exchanger CLAMP Worm Gear Heat Exchanger |
2 | |
| 32 | 71587A10 |
КОМПЛЕКТ ДЛЯ ВОССТАНОВЛЕНИЯ Охлаждающая жидкость RECOVERY KIT Coolant |
1 | |
| 33 | 71587A11 |
БАЧОК Пластик Coolant Recovery Kit BOTTLE Plastic Coolant Recovery Kit |
1 | |
| 34 | 72058 |
ПРОБКА Coolant Recovery Bottle CAP Bottle Coolant Recovery Bottle |
1 | |
| 35 | 865672079 |
РУКАВ (Общая длина 96.00") Sea Water Pump to Water Pick Up HOSE (96.00 Inches Bulk) Sea Water Pump to Water Pick Up |
1 | superseded |
| 36 | 18431 |
НАКЛАДКА Heat Exchanger PAD Heat Exchanger |
1 | |
| 37 | 864405T |
КРОНШТЕЙН Cooler BRACKET Cooler |
1 | |
| 38 | 863841T |
ТРУБА Вода (Compact Hydralic Steering) TUBE Water (Compact Hydralic Steering) |
1 | |
| 39 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | superseded |
| 4 | 8M2000926 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 40 | 8M2000926 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 5 | 860332001 |
РУКАВ Drain Fitting to Heat Exchanger HOSE Drain Fitting to Heat Exchanger |
1 | |
| 6 | 866726 |
РУКАВ Thermostat Housing to Upper Manifold (Starboard) (Without Riser) HOSE Thermostat Housing to Upper Manifold (Starboard) (Without Riser) |
1 | |
| 6 | 865532 |
РУКАВ Thermostat Housing to Upper Manifold (Starboard) (With Riser) HOSE Thermostat Housing to Upper Manifold (Starboard) (With Riser) |
1 | |
| 7 | 864977 |
РУКАВ Thermostat Housing to Upper Manifold (PORT) (Without Riser) HOSE Thermostat Housing to Upper Manifold (PORT) (Without Riser) |
1 | disc. |
| 7 | 3322070 |
РУКАВ (Общая длина 48.00") Thermostat Housing to Upper Manifold (PORT) (With Riser) (Cut to Fit) HOSE (48.00 Inches Bulk) Thermostat Housing to Upper Manifold (PORT) (With Riser) (Cut to Fit) |
1 | superseded |
| 8 | 865531 |
РУКАВ Thermostat Housing to Lower Manifold (Starboard) HOSE Thermostat Housing to Lower Manifold (Starboard) |
1 | |
| 9 | 865530 |
РУКАВ Thermostat Housing to Lower Manifold (Port) HOSE Thermostat Housing to Lower Manifold (Port) |
1 | |
| NS | 774572 |
РУКАВ (Общая длина 48.00") HOSE (48.00 Inches Bulk) |
1 |
