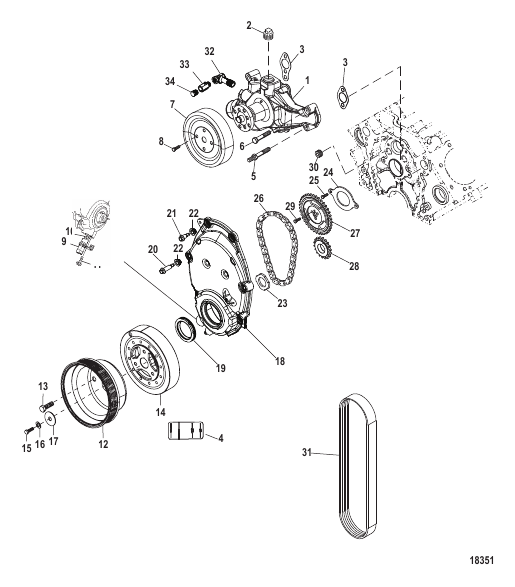

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 824326A02 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| - | 864256A1 |
ЛОНГ-БЛОК В СБОРЕ (4.3L) LONGBLOCK ASSEMBLY (4.3L) |
1 | disc. |
| 1 | 8503991 |
НАСОС В СБОРЕ Вода PUMP ASSEMBLY Water |
1 | superseded |
| 10 | 885192 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 11 | 884018 |
ВИНТ SCREW |
1 | superseded |
| 12 | 807730T |
ШКИВ Crankshaft PULLEY Crankshaft |
1 | |
| 13 | 34352 |
ВИНТ (0.375-24 x 0.875) SCREW (.375-24 x .875) |
3 | |
| 14 | 888776T |
ВИБРОГАСИТЕЛЬ HARMONIC BALANCER |
1 | |
| 15 | 32515 |
ВИНТ (0.437-20 x 2.50) SCREW (.437-20 x 2.50) |
1 | superseded |
| 16 | 39131 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
1 | |
| 17 | 71458 |
ШАЙБА WASHER |
1 | |
| 18 | 888777001 |
РАСПРЕДЕЛИТЕЛЬНАЯ КРЫШКА В СБОРЕ TIMING COVER ASSEMBLY |
1 | superseded |
| 19 | 888779 |
УПЛОТНЕНИЕ Oil SEAL Oil |
1 | |
| 2 | 49146 |
ПРОБКА Pipe (Standard Cooling) PLUG Pipe (Standard Cooling) |
1 | disc. |
| 20 | 888780 |
БОЛТ Timing Cover BOLT Timing Cover |
2 | disc. |
| 21 | 888781 |
БОЛТ Timing Cover BOLT Timing Cover |
3 | |
| 22 | 888782 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Timing Cover GROMMET Timing Cover |
6 | |
| 23 | 889334 |
РУЛЕВОЕ КОЛЕСО РЕДУКТОРА RELUCTOR WHEEL |
1 | |
| 24 | 824333 |
ФИКСАТОР Camshaft RETAINER Camshaft |
1 | |
| 25 | 824334 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | |
| 26 | 883494 |
КОМПЛЕКТ ЦЕПИ Timing CHAIN KIT Timing |
1 | |
| 27 | 824328 |
ЗВЕЗДОЧКА Camshaft SPROCKET Camshaft |
1 | superseded |
| 28 | 17160 |
ЗВЕЗДОЧКА Crankshaft SPROCKET Crankshaft |
1 | superseded |
| 29 | 824329 |
ВИНТ (0.312-18 x 0.750) SCREW (.312-18 x .750) |
3 | disc. |
| 3 | 34897 |
ПРОКЛАДКА Water Pump GASKET Water Pump |
2 | |
| 30 | 816565 |
ПРОБКА Колпачок (0.468) Pipe PLUG Cup (.468) Pipe |
1 | |
| 31 | 865615004 |
РЕМЕНЬ (Alpha) (Power Steering) BELT (Alpha) (Power Steering) |
1 | superseded |
| 31 | 865615009 |
РЕМЕНЬ (Alpha) (Compact Hydraulic Steering) BELT (Alpha) (Compact Hydraulic Steering) |
1 | superseded |
| 31 | 865615003 |
РЕМЕНЬ (Bravo) (Power Steering) BELT (Bravo) (Power Steering) |
1 | superseded |
| 31 | 865615008 |
РЕМЕНЬ (Bravo) (Compact Hydraulic Steering) BELT (Bravo) (Compact Hydraulic Steering) |
1 | superseded |
| 32 | 865526 |
ФИТИНГ FITTING |
1 | |
| 33 | 865525 |
КЛАПАН VALVE |
1 | |
| 34 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
1 | superseded |
| 4 | 864250 |
НАКЛЕЙКА Timing DECAL Timing |
1 | superseded |
| 5 | 35342 |
ШПИЛЬКА (0.312-24/0.375-16 x 2.5625) STUD (.312-24/.375-16 x 2.5625) |
2 | superseded |
| 6 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
2 | |
| 6 | 47688 |
ВИНТ (0.375-16 x 2.750) SCREW (.375-16 x 2.750) |
1 | |
| 7 | 807729T |
ШКИВ PULLEY |
1 | superseded |
| 8 | 47277 |
ВИНТ (0.312-24 x 0.750) SCREW (.312-24 x .750) |
4 | |
| 9 | 864297001 |
ДАТЧИК В СБОРЕ Crankshaft Position SENSOR ASSEMBLY Crankshaft Position |
1 | superseded |
