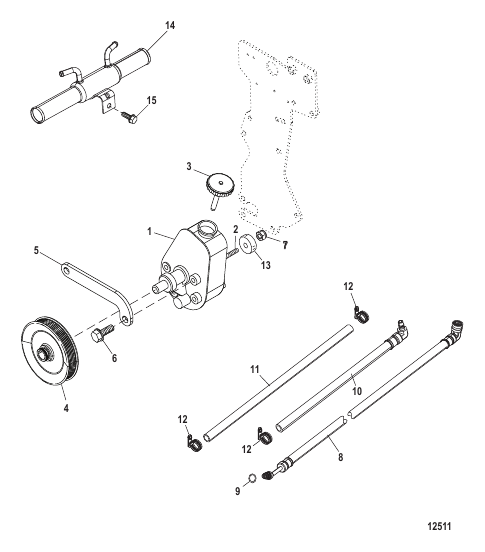

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 16792A39 |
НАСОС В СБОРЕ Power Steering PUMP ASSEMBLY Power Steering |
1 | |
| 10 | 865390015 |
РУКАВ Быстроразъемное соединение вилки (Fitting on One End) HOSE Male Quick Connect (Fitting on One End) |
1 | |
| 11 | 5251914 |
РУКАВ (Общая длина 53.00") Pump to Oil Cooler (37.00 Inch) HOSE (53.00 Inches Bulk) Pump to Oil Cooler (37.00 Inch) |
1 | superseded |
| 12 | 815504105 |
ЗАЖИМ Червячная передача (11-18 мм) Hose CLAMP Worm Gear (11-18 mm) Hose |
3 | superseded |
| 13 | 905201 |
ПРОСТАВКА (0.750 x 0.250) SPACER (.750 x .250) |
1 | |
| 14 | 861554T |
ОХЛАДИТЕЛЬ Power Steering COOLER Power Steering |
1 | superseded |
| 15 | 816585 |
ВИНТ (0.312-18 x 0.875) Metal Cooler SCREW (.312-18 x .875) Metal Cooler |
1 | |
| 15 | 8M2016106 |
ВИНТ (0.312 x 1.25) Composite Cooler (Included with 861554T02) SCREW (.312 x 1.25) Composite Cooler (Included with 861554T02) |
1 | disc. |
| 2 | 41877 |
ШПИЛЬКА (M10) STUD (M10) |
2 | disc. |
| 3 | 95805 |
ПРОБКА CAP |
1 | |
| 4 | 861578 |
ШКИВ PULLEY |
1 | superseded |
| 5 | 862082T |
СКОБА Power Steering BRACE Power Steering |
1 | |
| 6 | 40001188 |
ВИНТ (M10 x 20) SCREW (M10 x 20) |
2 | disc. |
| 7 | 90517 |
ГАЙКА (M10) NUT (M10) |
2 | |
| 8 | 865387053 |
РУКАВ Быстроразъемное соединение гнезда (Fittings on Both Ends) HOSE Female Quick Connect (Fittings on Both Ends) |
1 | superseded |
| 9 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
1 | |
| NS | 806231 |
МУФТА COUPLER |
1 | superseded |
| NS | 8079921 |
КРЫШКА Hose Clamp End (.25 Inside Diameter) COVER Hose Clamp End (.25 Inside Diameter) |
AR | disc. |
| NS | 8079923 |
КРЫШКА Hose Clamp End (.375 Inside Diameter) COVER Hose Clamp End (.375 Inside Diameter) |
1 | superseded |
| NS | 77054 |
ЛЕНТОЧНЫЙ ХОМУТ (14.50") TIE STRAP (14.50 Inches) |
1 |
