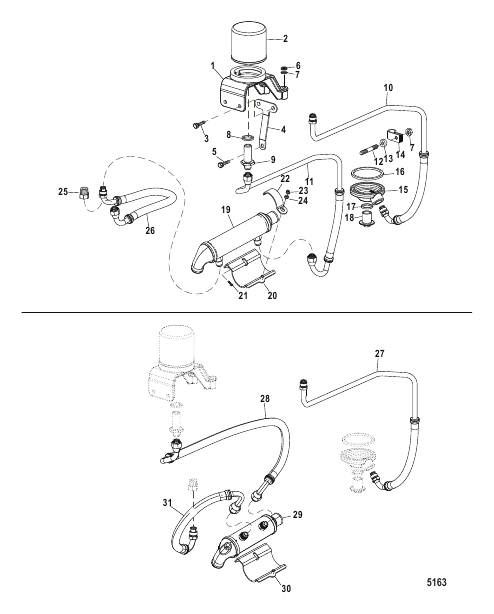

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 862342T |
КРОНШТЕЙН Remote Oil Filter BRACKET Remote Oil Filter |
1 | |
| 10 | 8628641 |
РУКАВ Oil, Filter to Adapter [0M027850] & Below HOSE Oil, Filter to Adapter [0M027850] & Below |
1 | disc. |
| 10 | 8629771 |
РУКАВ Oil, Filter to Adapter (V-Drive) [0M027850] & Below HOSE Oil, Filter to Adapter (V-Drive) [0M027850] & Below |
1 | disc. |
| 11 | 8628651 |
РУКАВ Oil, Filter to Cooler [0M027850] & Below HOSE Oil, Filter to Cooler [0M027850] & Below |
1 | |
| 11 | 8629761 |
РУКАВ Oil, Filter to Cooler (V-Drive) [0M027850] & Below HOSE Oil, Filter to Cooler (V-Drive) [0M027850] & Below |
1 | disc. |
| 12 | 424632 |
ШПИЛЬКА (M8 x 37.1) STUD (M8 x 37.1) |
1 | |
| 13 | 34948 |
ПРОСТАВКА SPACER |
1 | |
| 14 | 475451 |
ЗАЖИМ CLIP |
2 | |
| 15 | 862870T |
ПЕРЕХОДНИК Oil Filter ADAPTER Oil Filter |
1 | |
| 16 | 862957 |
УПЛОТНЕНИЕ Oil Filter Adapter SEAL Oil Filter Adapter |
1 | |
| 17 | 42077 |
УПЛОТНЕНИЕ Swivel Tube SEAL Swivel Tube |
1 | |
| 18 | 862958 |
ФИТИНГ Oil Filter Adapter FITTING Oil Filter Adapter |
1 | |
| 19 | 861946 |
ОХЛАДИТЕЛЬ Oil [0M027850] & Below COOLER Oil [0M027850] & Below |
1 | superseded |
| 2 | 802885Q |
ФИЛЬТР Масло Oil FILTER Oil Oil |
1 | superseded |
| 20 | 8623431 |
КРОНШТЕЙН Oil Cooler [0M027850] & Below BRACKET Oil Cooler [0M027850] & Below |
1 | superseded |
| 21 | 4000327 |
ВИНТ (M6 x 14) SCREW (M6 x 14) |
2 | |
| 22 | 807445T |
ЗАЖИМ Cooler Bracket CLAMP Cooler Bracket |
1 | |
| 23 | 401366 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 24 | 22937 |
ШАЙБА WASHER |
1 | |
| 25 | 805563 |
СОЕДИНИТЕЛЬ (NPTF 0.500" к инвертированной свече зажигания 0.500") CONNECTOR (.500 Inch NPTF To .500 Inch Inverted Flare) |
1 | |
| 26 | 863915 |
РУКАВ Cooler to Engine [0M027850] & Below HOSE Cooler to Engine [0M027850] & Below |
1 | |
| 27 | 863899 |
РУКАВ Oil, Filter to Adapter [0M027851] & Up HOSE Oil, Filter to Adapter [0M027851] & Up |
1 | |
| 27 | 863902 |
РУКАВ Oil, Filter to Adapter (V-Drive) [0M027851] & Up HOSE Oil, Filter to Adapter (V-Drive) [0M027851] & Up |
1 | |
| 28 | 863900 |
РУКАВ Oil, Filter to Cooler [0M027851] & Up HOSE Oil, Filter to Cooler [0M027851] & Up |
1 | |
| 28 | 8639011 |
РУКАВ Oil, Filter to Cooler (V-Drive) [0M027851] & Up HOSE Oil, Filter to Cooler (V-Drive) [0M027851] & Up |
1 | |
| 29 | 863904T |
ОХЛАДИТЕЛЬ Oil [0M027851] & Up COOLER Oil [0M027851] & Up |
1 | |
| 3 | 4000354 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
2 | |
| 30 | 863905T |
КРОНШТЕЙН Oil Cooler [0M027851] & Up BRACKET Oil Cooler [0M027851] & Up |
1 | |
| 31 | 863915 |
РУКАВ Cooler to Engine [0M027851] & Up HOSE Cooler to Engine [0M027851] & Up |
1 | |
| 4 | 8629102 |
КРОНШТЕЙН Support BRACKET Support |
1 | |
| 4 | 8629101 |
КРОНШТЕЙН Support (V-Drive) BRACKET Support (V-Drive) |
1 | |
| 5 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
1 | |
| 6 | 4002030 |
ГАЙКА (M8) NUT (M8) |
3 | |
| 7 | 12038 |
ШАЙБА WASHER |
3 | superseded |
| 8 | 42077 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 9 | 806328 |
ФИТИНГ Oil Adapter FITTING Oil Adapter |
1 |
