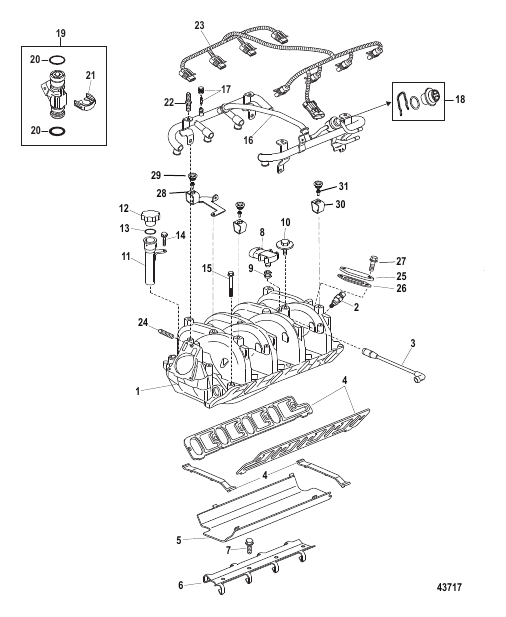

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 881690001 |
КОЛЛЕКТОР MANIFOLD |
1 | disc. |
| 10 | 881646 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
1 | |
| 11 | 864996 |
ТРУБА Oil Fill TUBE Oil Fill |
1 | |
| 12 | 864997 |
ПРОБКА Oil Fill Tube CAP Oil Fill Tube |
1 | |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal, Oil Fill Cap NOT SOLD SEPARATE Seal, Oil Fill Cap |
1 | |
| 14 | 881645 |
БОЛТ (M6 x 20) Oil Fill Tube BOLT (M6 x 20) Oil Fill Tube |
1 | |
| 15 | 895234001 |
ВИНТ (M6 x 73) SCREW (M6 x 73) |
10 | |
| 16 | 881691002 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ Fuel Injection FUEL RAIL Fuel Injection |
1 | disc. |
| 17 | 802631 |
КОМПЛЕКТ КЛАПАНА И КОЛПАЧКА Fuel Pressure Port VALVE AND CAP KIT Fuel Pressure Port |
1 | |
| 18 | 8M0046753 |
КОМПЛЕКТ РЕГУЛЯТОРА Fuel Pressure REGULATOR KIT Fuel Pressure |
1 | |
| 19 | 881693001 |
ФОРСУНКА Штырь с 2 отверстиями INJECTOR 2 hole pintle |
8 | disc. |
| 2 | 805223T |
ДАТЧИК SENSOR |
1 | |
| 20 | 881694001 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 21 | 881695001 |
КОМПЛЕКТ ФИКСАТОРОВ Fuel Injector RETAINER KIT Fuel Injector |
1 | |
| 22 | 881968001 |
ШПИЛЬКА Fuel Injection Rail STUD Fuel Injection Rail |
2 | |
| 23 | 889503 |
ЖГУТ ПРОВОДОВ В СБОРЕ Fuel Injection Wiring HARNESS ASSEMBLY Fuel Injection Wiring |
1 | superseded |
| 24 | 802561 |
ШПИЛЬКА Throttle Body STUD Throttle Body |
3 | disc. |
| 25 | NA |
NOT AVAILABLE PLATE, Block Off Digital Throttle Shift NOT AVAILABLE PLATE, Block Off Digital Throttle Shift |
1 | |
| 26 | 863285 |
ПРОКЛАДКА Digital Throttle Shift GASKET Digital Throttle Shift |
1 | |
| 27 | 881586 |
ВИНТ (M8 x 30) Digital Throttle Shift SCREW (M8 x 30) Digital Throttle Shift |
2 | superseded |
| 28 | 8M2005404 |
КРОНШТЕЙН BRACKET |
1 | |
| 29 | 8M2001671 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | |
| 3 | 881734 |
РУКАВ Fuel Pressure Regulator HOSE Fuel Pressure Regulator |
1 | |
| 30 | 8M2003380 |
КРОНШТЕЙН Digital BRACKET Digital |
4 | |
| 31 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь SCREW (M6 x 12) Stainless Steel |
5 | |
| 4 | 895235 |
КОМПЛЕКТ ПРОКЛАДОК Intake Manifold and Valley GASKET SET Intake Manifold and Valley |
1 | superseded |
| 5 | 881689 |
ЭКРАН Oil Splash SHIELD Oil Splash |
1 | disc. |
| 6 | 845755 |
ФИКСАТОР Valve Lifter Guide RETAINER Valve Lifter Guide |
1 | superseded |
| 7 | 881570 |
ВИНТ (M8 x 25 мм) SCREW (M8 x 25 MM) |
7 | |
| 8 | 881731 |
ДАТЧИК Manifold Air Pressure SENSOR Manifold Air Pressure |
1 | superseded |
| 9 | 881733 |
УПЛОТНЕНИЕ Manifold Air Pressure Sensor SEAL Manifold Air Pressure Sensor |
1 |
