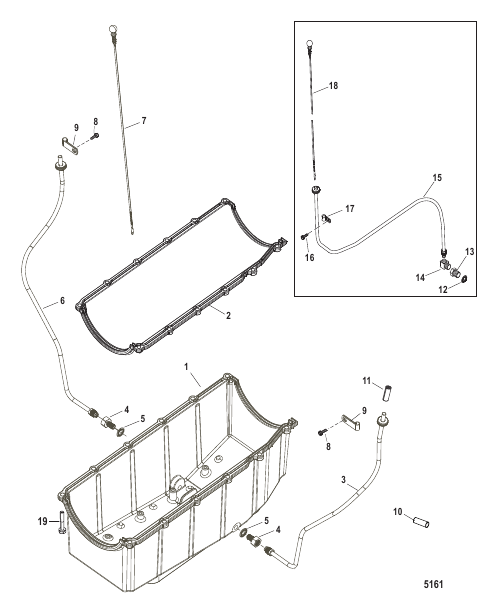

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 881653001 |
ПОДДОН Масло PAN Oil |
1 | disc. |
| 10 | 861982 |
ПРОБКА Vinyl CAP Vinyl |
1 | |
| 11 | 805524 |
ЗАЖИМ CLIP |
1 | |
| 12 | 49955 |
ПРОКЛАДКА Drain V-Drive GASKET Drain V-Drive |
1 | superseded |
| 13 | 863389 |
ФИТИНГ Oil Gauge Tube V-Drive FITTING Oil Gauge Tube V-Drive |
1 | superseded |
| 14 | 19697 |
КОЛЕНЧАТЫЙ V-Drive ELBOW V-Drive |
1 | |
| 15 | 865217 |
ТРУБА Engine Oil Gauge V-Drive TUBE Engine Oil Gauge V-Drive |
1 | |
| 16 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
1 | |
| 17 | 65653 |
ЗАЖИМ V-Drive CLIP V-Drive |
1 | |
| 18 | 86194210 |
УКАЗАТЕЛЬ Oil Level V-Drive GAUGE Oil Level V-Drive |
1 | |
| 19 | 898101392 |
БОЛТ (M8 x 30) BOLT (M8 x 30) |
13 | |
| 2 | 881612 |
ПРОКЛАДКА Oil Pan GASKET Oil Pan |
1 | |
| 3 | 863406 |
ТРУБА Engine Oil Gauge In-Line, Starboard TUBE Engine Oil Gauge In-Line, Starboard |
1 | |
| 4 | 807804 |
ФИТИНГ Oil Gauge Tube In-Line FITTING Oil Gauge Tube In-Line |
2 | |
| 5 | 49955 |
ПРОКЛАДКА Drain In-Line GASKET Drain In-Line |
2 | superseded |
| 6 | 863407 |
ТРУБА Engine Oil Gauge In-Line, Port TUBE Engine Oil Gauge In-Line, Port |
1 | |
| 7 | 86194211 |
УКАЗАТЕЛЬ Oil Level In-Line GAUGE Oil Level In-Line |
1 | |
| 8 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
2 | |
| 9 | 65653 |
ЗАЖИМ CLIP |
2 | |
| NS | 883922 |
ОТРАЖАТЕЛЬНЫЙ ЩИТОК Oil Pan BAFFLE Oil Pan |
1 | disc. |
| NS | 883923 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
AR |
