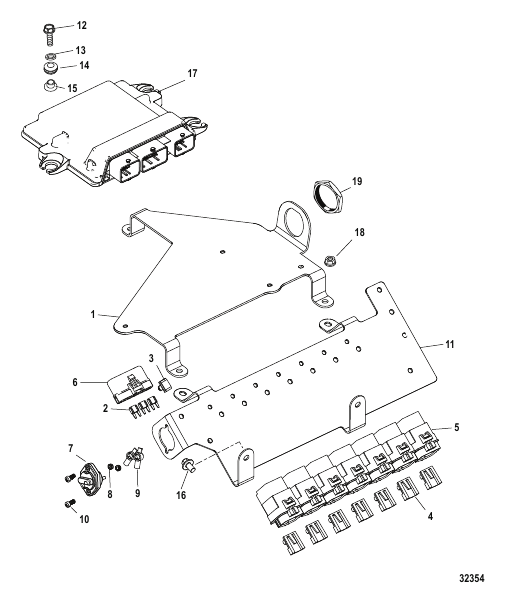

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 879288T60 |
КРОНШТЕЙН PCM BRACKET PCM |
1 | disc. |
| 10 | 830861 |
ВИНТ (№8-32 x .625) SCREW (#8-32 x .625) |
2 | |
| 11 | 866399T |
КРОНШТЕЙН Реле, соединителя BRACKET Relay, Connector |
1 | |
| 12 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
3 | |
| 13 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
3 | |
| 14 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 15 | 856954 |
ВТУЛКА Electrical Plate BUSHING Electrical Plate |
3 | |
| 16 | 4010610 |
ВИНТ (M6 x 10), нержавеющая сталь To Collector SCREW (M6 x 10) Stainless Steel To Collector |
1 | |
| 17 | 879288T53 |
PCM Блок управления движением Base Mechanical Throttle and Shift PCM Propulsion Control Module Base Mechanical Throttle and Shift |
superseded | |
| 17 | 879288T57 |
PCM Блок управления движением Base Digital Throttle and Shift PCM Propulsion Control Module Base Digital Throttle and Shift |
1 | superseded |
| 17 | 879288T54 |
PCM Блок управления движением High Output Mechanical Throttle and Shift PCM Propulsion Control Module High Output Mechanical Throttle and Shift |
1 | superseded |
| 17 | 879288T58 |
PCM Блок управления движением High Output Digital Throttle and Shift PCM Propulsion Control Module High Output Digital Throttle and Shift |
1 | superseded |
| 18 | 4002030 |
ГАЙКА (M8) NUT (M8) |
2 | |
| 19 | 889664 |
ГАЙКА (1.500-18), черный нейлон NUT (1.500-18) Black Nylon |
1 | |
| 2 | 83296910 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – красный – 10 A FUSE Mini - Red - 10 Ampere |
5 | |
| 2 | 83296915 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – синий – 15 A FUSE Mini - Blue - 15 Ampere |
2 | superseded |
| 2 | 83296920 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – желтый – 20 A FUSE Mini - Yellow - 20 Ampere |
3 | superseded |
| 3 | 804352 |
ЗАЖИМ Fuse Block Mounting CLIP Fuse Block Mounting |
1 | |
| 4 | 865205 |
ЗАЖИМ Mechanical Throttle and Shift CLIP Mechanical Throttle and Shift |
6 | |
| 4 | 865205 |
ЗАЖИМ Digital Throttle and Shift CLIP Digital Throttle and Shift |
7 | |
| 5 | 882751A04 |
РЕЛЕ В СБОРЕ Mechanical Throttle and Shift RELAY ASSEMBLY Mechanical Throttle and Shift |
6 | |
| 5 | 882751A04 |
РЕЛЕ В СБОРЕ Digital Throttle and Shift RELAY ASSEMBLY Digital Throttle and Shift |
7 | |
| 6 | 831960 |
КРЫШКА Fuse Digital Throttle and Shift COVER Fuse Digital Throttle and Shift |
1 | |
| 6 | 858754 |
КРЫШКА Предохранитель Mechanical Throttle and Shift COVER Fuse Mechanical Throttle and Shift |
1 | |
| 7 | 865827T |
ВЫКЛЮЧАТЕЛЬ Цепь – 50 ампер BREAKER Circuit - 50 Ampere |
1 | disc. |
| 8 | 826709106 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
2 | superseded |
| 9 | 89919 |
ЧЕХОЛ Изолятор – черный BOOT Insulator - Black |
2 | |
| NS | 865457T07 |
ЖГУТ ПРОВОДОВ В СБОРЕ Engine Mechanical Throttle and Shift HARNESS ASSEMBLY Engine Mechanical Throttle and Shift |
1 | superseded |
| NS | 865457T08 |
ЖГУТ ПРОВОДОВ В СБОРЕ Engine Digital Throttle and Shift HARNESS ASSEMBLY Engine Digital Throttle and Shift |
1 | superseded |
| NS | 865769T01 |
ЖГУТ ПРОВОДОВ В СБОРЕ Transmission Mechanical Throttle and Shift HARNESS ASSEMBLY Transmission Mechanical Throttle and Shift |
1 | |
| NS | 865676T02 |
ЖГУТ ПРОВОДОВ В СБОРЕ Transmission Digital Throttle and Shift HARNESS ASSEMBLY Transmission Digital Throttle and Shift |
1 |
