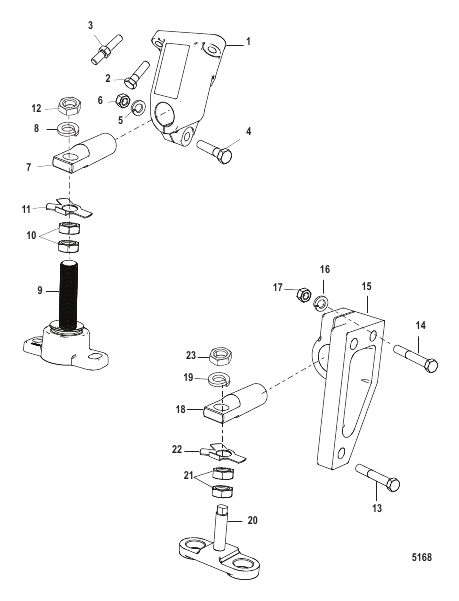

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 66418T |
КРОНШТЕЙН Передний BRACKET Front |
2 | |
| 10 | 20739 |
ГАЙКА (.750-16) NUT (.750-16) |
2 | |
| 11 | 66658 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
2 | |
| 12 | 20739 |
ГАЙКА (.750-16) NUT (.750-16) |
2 | |
| 13 | 4009760 |
ВИНТ (M12 x 60) SCREW (M12 x 60) |
4 | |
| 14 | 57357 |
ВИНТ (0.437-13 x 2.250) (Down Angle Transmission) [0W393270] & Up SCREW (.437-13 x 2.250) (Down Angle Transmission) [0W393270] & Up |
2 | |
| 14 | 47724 |
ВИНТ (0.437-14 x 3.00) (Down Angle Transmission) [0W393271] & Up SCREW (.437-14 x 3.00) (Down Angle Transmission) [0W393271] & Up |
2 | |
| 14 | 47724 |
ВИНТ (0.437-14 x 3.00) (V-Drive Transmission) SCREW (.437-14 x 3.00) (V-Drive Transmission) |
2 | |
| 15 | 805496T |
КРОНШТЕЙН (Port) (Down Angle Transmission) [0W393270] & Below BRACKET (Port) (Down Angle Transmission) [0W393270] & Below |
1 | |
| 15 | 807725T |
КРОНШТЕЙН (Port) (Down Angle Transmission) [0W393271] & Up BRACKET (Port) (Down Angle Transmission) [0W393271] & Up |
1 | |
| 15 | 807724T |
КРОНШТЕЙН (Port) (V-Drive Transmission) BRACKET (Port) (V-Drive Transmission) |
1 | |
| 15 | 805496T1 |
КРОНШТЕЙН (Starboard) (Down Angle Transmission) [0W393270] & Below BRACKET (Starboard) (Down Angle Transmission) [0W393270] & Below |
1 | |
| 15 | 807724T |
КРОНШТЕЙН (Starboard) (Down Angle Transmission) [0W393271] & Up BRACKET (Starboard) (Down Angle Transmission) [0W393271] & Up |
1 | |
| 15 | 807725T |
КРОНШТЕЙН (Starboard) (V-Drive Transmission) BRACKET (Starboard) (V-Drive Transmission) |
1 | |
| 16 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
2 | |
| 17 | 29553 |
ГАЙКА (0.437-14) NUT (.437-14) |
2 | disc. |
| 18 | 66166A4 |
ЦАПФА TRUNNION |
2 | |
| 19 | 68102 |
СТОПОРНАЯ ШАЙБА (0.750) LOCKWASHER (.750) |
2 | |
| 2 | 40001197 |
ВИНТ (M10 x 35) SCREW (M10 x 35) |
2 | |
| 20 | 816326A2 |
БАЗА В СБОРЕ (Rear) BASE ASSEMBLY (Rear) |
2 | |
| 21 | 816331 |
ГАЙКА (.750-16) NUT (.750-16) |
2 | |
| 22 | 66658 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
2 | |
| 23 | 20739 |
ГАЙКА (.750-16) NUT (.750-16) |
2 | |
| 3 | 861580 |
ШПИЛЬКА Port STUD Port |
2 | |
| 3 | 40001195 |
ВИНТ (M10 x 30) Starboard SCREW (M10 x 30) Starboard |
2 | |
| 4 | 37269 |
ВИНТ (0.437-14 x 2.00) SCREW (.437-14 x 2.00) |
2 | |
| 5 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
2 | |
| 6 | 29553 |
ГАЙКА (0.437-14) NUT (.437-14) |
2 | disc. |
| 7 | 66166A4 |
ЦАПФА TRUNNION |
2 | |
| 8 | 68102 |
СТОПОРНАЯ ШАЙБА (0.750) LOCKWASHER (.750) |
2 | |
| 9 | 66284A2 |
БАЗА В СБОРЕ (Front) BASE ASSEMBLY (Front) |
2 |
