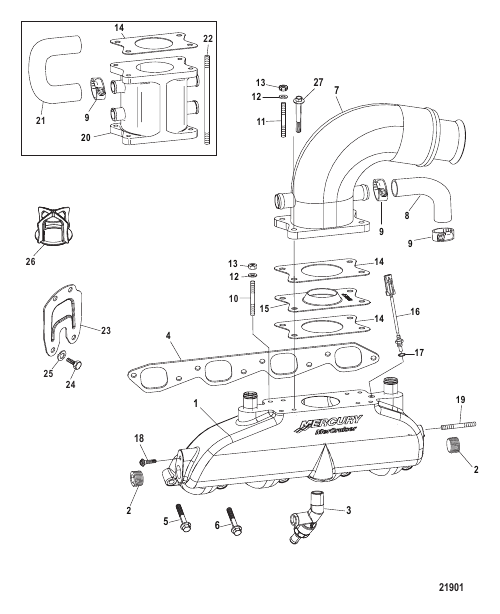

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863127T1 |
ВПУСКНОЙ КОЛЛЕКТОР Exhaust MANIFOLD ASSEMBLY Exhaust |
2 | superseded |
| 1 | 866178T01 |
ВПУСКНОЙ КОЛЛЕКТОР Специальный чугун Exhaust MANIFOLD ASSEMBLY Cast-Iron Alloy Exhaust |
2 | |
| 10 | 8204511 |
ШПИЛЬКА (M8 x 55) STUD (M8 x 55) |
3 | |
| 11 | 424632 |
ШПИЛЬКА (M8 x 37.1) [0W393387] & Below STUD (M8 x 37.1) [0W393387] & Below |
9 | |
| 12 | 12038 |
ШАЙБА WASHER |
8 | superseded |
| 13 | 4002030 |
ГАЙКА (M8) NUT (M8) |
8 | |
| 14 | 862356 |
ПРОКЛАДКА Elbow to Manifold GASKET Elbow to Manifold |
4 | |
| 15 | 863122 |
ПЛАСТИНА ТУРБУЛИЗАТОРА Exhaust TURBULATOR PLATE Exhaust |
2 | superseded |
| 16 | 885342001 |
ДАТЧИК В СБОРЕ Temperature SENSOR ASSEMBLY Temperature |
1 | superseded |
| 17 | 627021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
1 | |
| 18 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
1 | |
| 19 | 424632 |
ШПИЛЬКА (M8 x 37.1) STUD (M8 x 37.1) |
1 | |
| 2 | 866163 |
ПРОБКА (0.75-14) (Use with Aluminum Manifold) PLUG (.75-14) (Use with Aluminum Manifold) |
1 | disc. |
| 2 | 866164 |
Фитинг Редуктор (0.75-14 x 0.125-27) (Use with Aluminum Manifold) Fitting Reducer(.75-14 x .125-27) (Use with Aluminum Manifold) |
1 | disc. |
| 2 | 12524 |
ПРОБКА (0.375-18 x 0.475), латунь (Use with Cast Manifold) PLUG (.375-18 x .475) Brass (Use with Cast Manifold) |
1 | |
| 20 | 863124T |
ПОДЪЕМНЫЙ ПАТРУБОК (6") RISER (6 Inch) |
2 | superseded |
| 21 | 863102 |
РУКАВ HOSE |
4 | |
| 22 | 863121 |
ШПИЛЬКА (M8 x 194) STUD (M8 x 194) |
8 | |
| 23 | 861776A2 |
КОМПЛЕКТ ПЛАСТИН PLATE KIT |
1 | |
| 24 | 98794 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
4 | superseded |
| 25 | 41471 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
4 | |
| 26 | 860222A1 |
РЕЗОНАТОР Exhaust RESONATOR Exhaust |
1 | |
| 27 | 4010725 |
ВИНТ (M8 x 25) [0W393388] & Up SCREW (M8 x 25) [0W393388] & Up |
8 | |
| 3 | 865341A03 |
ФИТИНГИ В СБОРЕ Слив – нержавеющая сталь (Port Exhaust Manifold) FITTING ASSEMBLY Drain - Stainless Steel (Port Exhaust Manifold) |
1 | |
| 3 | 865828A02 |
ФИТИНГИ В СБОРЕ Слив (Starboard Exhaust Manifold) FITTING ASSEMBLY Drain (Starboard Exhaust Manifold) |
1 | |
| 4 | 46820 |
ПРОКЛАДКА Exhaust Manifold to Cylinder Head GASKET Exhaust Manifold to Cylinder Head |
2 | |
| 5 | 40011151 |
ВИНТ (M8 x 35), нержавеющая сталь SCREW (M8 x 35) Stainless Steel |
8 | |
| 6 | 40011158 |
ВИНТ (M8 x 70), нержавеющая сталь SCREW (M8 x 70) Stainless Steel |
8 | |
| 7 | 865331A01 |
КОЛЕНЧАТЫЙ Exhaust (Standard Rise) ELBOW Exhaust (Standard Rise) |
2 | superseded |
| 7 | 865332A01 |
КОЛЕНЧАТЫЙ Exhaust (2 Inch Rise) ELBOW Exhaust (2 Inch Rise) |
2 | superseded |
| 8 | 863095 |
РУКАВ Elbow to Manifold HOSE Elbow to Manifold |
4 | |
| 9 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) Hose CLAMP Worm Gear (1.56 Diameter) Hose |
8 | |
| NS | 8079923 |
КРЫШКА Hose Clamp End COVER Hose Clamp End |
8 | superseded |
