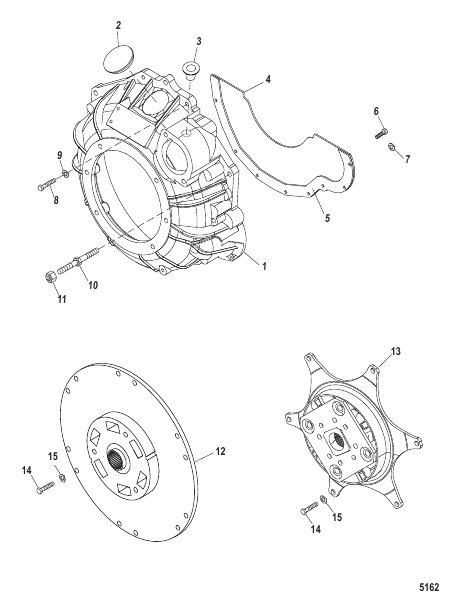

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 814309A1 |
КОРПУС В СБОРЕ HOUSING ASSEMBLY |
1 | |
| 10 | 861316 |
ШПИЛЬКА Grounding, Stainless Steel STUD (.375-16 x 2.750) Special Grounding, Stainless Steel |
2 | |
| 11 | 40125100 |
ГАЙКА (M10) NUT (M10) |
2 | |
| 12 | 860125T |
ВЕДУЩИЙ ДИСК В СБОРЕ (Borg Warner 72C Only) DRIVEPLATE ASSEMBLY (Borg Warner 72C Only) |
1 | |
| 13 | 862975A2 |
ВЕДУЩИЙ ДИСК В СБОРЕ (Borg Warner 5000 And All Hurth Transmissions)(Includes Fasteners) DRIVEPLATE ASSEMBLY (Borg Warner 5000 And All Hurth Transmissions)(Includes Fasteners) |
1 | |
| 14 | 40001195 |
ВИНТ (M10 x 30) SCREW (M10 x 30) |
6 | |
| 15 | 25909 |
ШАЙБА (0.406 x 0.812 x 0.065) WASHER (.406 x .812 x .065) |
6 | |
| 2 | 12304 |
ПРОБКА PLUG |
1 | |
| 3 | NA |
NOT AVAILABLE NOT AVAILABLE |
1 | |
| 4 | 818718A4 |
КРЫШКА В СБОРЕ Flywheel COVER ASSEMBLY Flywheel |
1 | |
| 5 | 86015 |
ПРОКЛАДКА GASKET |
1 | |
| 6 | 98253 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
5 | |
| 7 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
5 | |
| 8 | 47277 |
ВИНТ (0.312-24 x 0.750) SCREW (.312-24 x .750) |
1 | |
| 8 | 4009025 |
ВИНТ (M10 x 25), нержавеющая сталь SCREW (M10 x 25) Stainless Steel |
1 | |
| 8 | 40001197 |
ВИНТ (M10 x 35) SCREW (M10 x 35) |
2 | |
| 8 | 4010870 |
ВИНТ Шестигранный фланец (M10 x 70), нержавеющая сталь SCREW (M10 x 70) Hex Flange - Stainless Steel |
2 | |
| 9 | 400248 |
СТОПОРНАЯ ШАЙБА (M10) LOCKWASHER (M10) |
7 | |
| 9 | 400247 |
СТОПОРНАЯ ШАЙБА (M8) LOCKWASHER (M8) |
1 |
