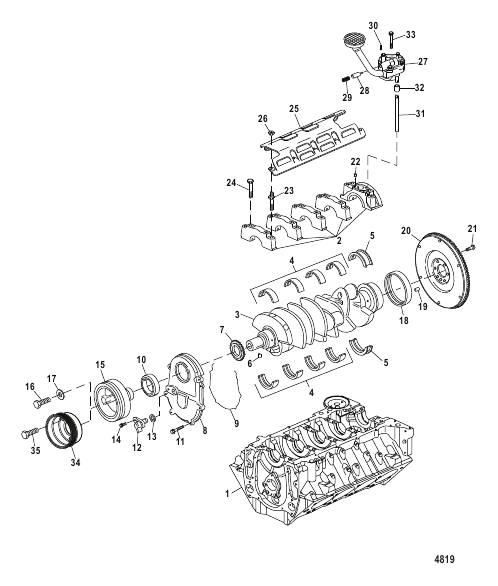

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО BLOCK-Engine (Order Longblock Assembly) NOT SOLD SEPARATE BLOCK-Engine (Order Longblock Assembly) |
1 | |
| 10 | 881613 |
УПЛОТНЕНИЕ Crankshaft Front Oil SEAL Crankshaft Front Oil |
1 | superseded |
| 11 | 881577 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
6 | superseded |
| 12 | 892615 |
ДАТЧИК Camshaft Position SENSOR Camshaft Position |
1 | superseded |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SEAL-Camshaft Position Sensor NOT SOLD SEPARATE SEAL-Camshaft Position Sensor |
1 | |
| 14 | 881594 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
1 | superseded |
| 15 | 891769 |
БАЛАНСИР Crankshaft BALANCER Crankshaft |
1 | disc. |
| 16 | 881587 |
ВИНТ (M16 x 1.5) SCREW (M16 x 1.5) |
1 | |
| 17 | 881614 |
ШАЙБА WASHER |
1 | |
| 18 | 881608 |
УПЛОТНЕНИЕ Crankshaft Rear Oil SEAL Crankshaft Rear Oil |
1 | superseded |
| 19 | 881609 |
ШТИФТ Flywheel Locating PIN Flywheel Locating |
2 | disc. |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО CAP-Crankshaft Bearing NOT SOLD SEPARATE CAP-Crankshaft Bearing |
5 | |
| 20 | 881641 |
МАХОВИК (Base and H.O.) FLYWHEEL (Base and H.O.) |
1 | superseded |
| 21 | 881578 |
БОЛТ BOLT |
6 | |
| 22 | 35312 |
ШТИФТ Штифт (1/4" в диаметре) Oil Pump Locating PIN Dowel (1/4 In. Diameter) Oil Pump Locating |
1 | superseded |
| 23 | 881615 |
ШПИЛЬКА Crankshaft Bearing Cap STUD Crankshaft Bearing Cap |
10 | |
| 24 | 881580 |
ВИНТ (M12 x 89) SCREW (M12 x 89) |
10 | |
| 25 | 883236 |
ОТРАЖАТЕЛЬ Oil DEFLECTOR Oil |
1 | disc. |
| 26 | 881579 |
ГАЙКА NUT |
9 | superseded |
| 27 | 881652 |
НАСОС С экраном Oil PUMP With Screen Oil |
1 | superseded |
| 28 | 881611 |
ШТИФТ Oil Pump PIN Oil Pump |
1 | |
| 29 | 881610 |
ПРУЖИНА Oil Pump SPRING Oil Pump |
1 | |
| 3 | 881654 |
КОЛЕНЧАТЫЙ ВАЛ (Base) CRANKSHAFT (Base) |
1 | superseded |
| 3 | 881654 |
КОЛЕНЧАТЫЙ ВАЛ (H.O.) CRANKSHAFT (H.O.) |
1 | superseded |
| 30 | 881643 |
КЛАПАН Pressure Relief VALVE Pressure Relief |
1 | disc. |
| 31 | 14761 |
ВАЛ И ФИКСАТОР Oil Pump Drive SHAFT AND RETAINER Oil Pump Drive |
1 | superseded |
| 32 | 36183 |
ФИКСАТОР Oil Pump Drive RETAINER Oil Pump Drive |
1 | |
| 33 | 881585 |
ВИНТ (M10 x 60) SCREW (M10 x 60) |
1 | |
| 34 | 862349 |
ШКИВ Crankshaft PULLEY Crankshaft |
1 | disc. |
| 35 | 4009025 |
ВИНТ (M10 x 25), нержавеющая сталь SCREW (M10 x 25) Stainless Steel |
3 | |
| 4 | 881606 |
КОМПЛЕКТ ПОДШИПНИКОВ Crankshaft BEARING KIT Crankshaft |
4 | superseded |
| 5 | 881607 |
КОМПЛЕКТ ПОДШИПНИКОВ Crankshaft Main Thrust BEARING KIT Crankshaft Main Thrust |
1 | superseded |
| 6 | 881605 |
ШТИФТ Balancer Locating PIN Balancer Locating |
1 | |
| 7 | 881655 |
ЗВЕЗДОЧКА Crankshaft SPROCKET Crankshaft |
1 | |
| 8 | 892616 |
КРЫШКА Front COVER Front |
1 | superseded |
| 9 | 881604 |
ПРОКЛАДКА Front Cover GASKET Front Cover |
1 | |
| NS | 865519A01 |
ЛОНГ-БЛОК В СБОРЕ Base (Block codes 4WW and 4WY) LONGBLOCK ASSEMBLY Base (Block codes 4WW and 4WY) |
1 | superseded |
| NS | 865752A01 |
ЛОНГ-БЛОК В СБОРЕ Base (Block codes 4ZW and 4ZY) LONGBLOCK ASSEMBLY Base (Block codes 4ZW and 4ZY) |
1 | disc. |
| NS | 865521A01 |
ЛОНГ-БЛОК В СБОРЕ H.O. (Block codes 4WA and 4WF) LONGBLOCK ASSEMBLY H.O. (Block codes 4WA and 4WF) |
1 | superseded |
| NS | 865754A01 |
ЛОНГ-БЛОК В СБОРЕ H.O. (Block codes 4ZA and 4ZF) LONGBLOCK ASSEMBLY H.O. (Block codes 4ZA and 4ZF) |
1 | disc. |
