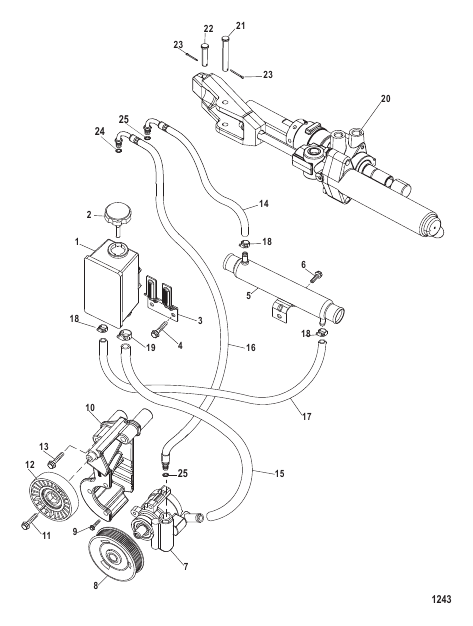

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 862752T1 |
РЕЗЕРВУАР В СБОРЕ Power Steering RESERVOIR ASSEMBLY Power Steering |
1 | disc. |
| 10 | 863856T |
КРОНШТЕЙН Power Steering Pump BRACKET Power Steering Pump |
1 | |
| 11 | 4010816 |
ВИНТ Шестигранный фланец (M10 x 16), нержавеющая сталь SCREW (M10 x 16) Hex Flange - Stainless Steel |
1 | |
| 12 | 818382 |
ШКИВ PULLEY |
1 | superseded |
| 13 | 40108100 |
ВИНТ Шестигранный фланец (M10 x 100), нержавеющая сталь SCREW (M10 x 100) Hex Flange - Stainless Steel |
3 | superseded |
| 14 | 8062215 |
РУКАВ (Cylinder to Cooler) HOSE (Cylinder to Cooler) |
1 | |
| 15 | 864229 |
РУКАВ (Pump to Reservoir) HOSE (Pump to Reservoir) |
1 | |
| 16 | 86131720 |
РУКАВ (Pump to Cylinder) HOSE (Pump to Cylinder) |
1 | |
| 17 | 5251914 |
РУКАВ (Общая длина 53.00") (Reservoir to Cooler) (Cut to 48 In.) HOSE (53.00 Inches Bulk) (Reservoir to Cooler) (Cut to 48 In.) |
1 | superseded |
| 18 | 815504105 |
ЗАЖИМ Червячная передача (11-18 мм) Hose CLAMP Worm Gear (11-18 mm) Hose |
3 | superseded |
| 19 | 815504210 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
2 | |
| 2 | 806216 |
ПРОБКА Power Steering Reservoir Assembly CAP Power Steering Reservoir Assembly |
1 | |
| 20 | 806034A1 |
ПРИВОД В СБОРЕ Рулевой механизм с усилителем ACTUATOR ASSEMBLY Power Steering |
1 | superseded |
| 21 | 15878 |
ШТИФТ Вилка (Long) PIN Clevis (Long) |
1 | |
| 22 | 16419 |
ШТИФТ Вилка (Short) PIN Clevis (Short) |
1 | |
| 23 | 46950 |
ШПЛИНТ Cotter COTTER PIN Cotter |
2 | |
| 24 | 806232 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.239 x 0.064) O-RING (.239 x .064) |
1 | |
| 25 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
2 | |
| 3 | 863119 |
КРОНШТЕЙН Power Steering Reservoir BRACKET Power Steering Reservoir |
1 | disc. |
| 4 | 4000354 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
2 | |
| 5 | 861554T |
ОХЛАДИТЕЛЬ Power Steering COOLER Power Steering |
1 | superseded |
| 6 | 816585 |
ВИНТ (0.312-18 x 0.875) Metal Cooler SCREW (.312-18 x .875) Metal Cooler |
1 | |
| 6 | 8M2016106 |
ВИНТ (0.312 x 1.25) Composite Cooler (Included with 861554T02) SCREW (.312 x 1.25) Composite Cooler (Included with 861554T02) |
1 | disc. |
| 7 | 806230T |
НАСОС Power Steering PUMP Power Steering |
1 | disc. |
| 8 | 862751 |
ШКИВ Power Steering PULLEY Power Steering |
1 | disc. |
| 9 | 4010720 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
3 | |
| NS | 8079921 |
КРЫШКА Hose Clamp End COVER Hose Clamp End |
AR | disc. |
