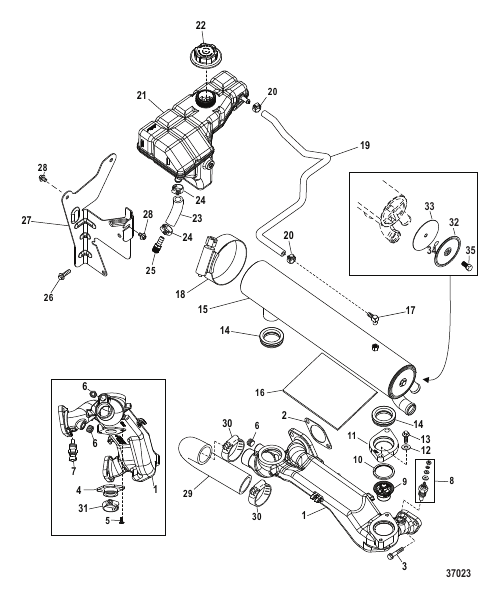

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863771T |
ПЕРЕПУСКНАЯ ТРУБА Coolant CROSSOVER Coolant |
1 | |
| 10 | 865078 |
УПЛОТНЕНИЕ Thermostat SEAL Thermostat |
1 | |
| 11 | 861949T |
ФИКСАТОР Thermostat RETAINER Thermostat |
1 | |
| 12 | 12038 |
ШАЙБА WASHER |
2 | superseded |
| 13 | 4000354 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
2 | |
| 14 | 865066 |
УПЛОТНЕНИЕ Heat Exchanger to Crossover SEAL Heat Exchanger to Crossover |
2 | |
| 15 | 863903T |
ТЕПЛООБМЕННИК HEAT EXCHANGER |
1 | superseded |
| 16 | 863392 |
НАКЛАДКА Heat Exchanger PAD Heat Exchanger |
2 | |
| 17 | 629101 |
ФИТИНГ Коленчатый патрубок, 90 градусов (0.125-27) FITTING Elbow - 90 Degree (.125-27) |
1 | |
| 18 | 815504280 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
2 | |
| 19 | 863303 |
РУКАВ Coolant Bleed HOSE Coolant Bleed |
1 | |
| 2 | 881620 |
ПРОКЛАДКА Cylinder Head to Crossover GASKET Cylinder Head to Crossover |
2 | superseded |
| 20 | 815504206 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
2 | |
| 21 | 861944A1 |
РЕЗЕРВУАР Coolant RESERVOIR Coolant |
1 | |
| 22 | 862863 |
ПРОБКА Резервуар для охлаждающей жидкости CAP Coolant Reservoir |
1 | |
| 23 | 863304 |
РУКАВ Reservoir to Crossover HOSE Reservoir to Crossover |
1 | |
| 24 | 815504212 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
2 | |
| 25 | 8552141 |
ФИТИНГ Straight Hose FITTING Straight Hose |
1 | superseded |
| 26 | 863388 |
ВИНТ (M10 x 16) SCREW (M10 x 16) |
3 | |
| 27 | 862986 |
КРОНШТЕЙН Coolant Reservoir BRACKET Coolant Reservoir |
1 | |
| 28 | 81893412 |
ВИНТ (M8 x 12) SCREW (M8 x 12) |
3 | |
| 29 | 8619521 |
РУКАВ Crossover to Pump HOSE Crossover to Pump |
1 | |
| 3 | 881593 |
ВИНТ (M10 x 30) SCREW (M10 x 30) |
4 | |
| 30 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) Hose CLAMP Worm Gear (2.50 Diameter) Hose |
2 | |
| 31 | 865373 |
ЗАЖИМ Hose CLAMP Hose |
1 | superseded |
| 32 | 814875 |
КРЫШКА Торцевая крышка теплообменника (Use W/ 4 In. Dia. Heat Exchanger) COVER Heat Exchanger End (Use W/ 4 In. Dia. Heat Exchanger) |
2 | superseded |
| 32 | 891717 |
КРЫШКА Heat Exchanger End (Use W/ 3.75 In Dia. Heat Exchanger) COVER Heat Exchanger End (Use W/ 3.75 In Dia. Heat Exchanger) |
2 | |
| 33 | 803644 |
ПРОКЛАДКА Heat Exchanger Cover (Use W/ 4 In. Dia. Heat Exchanger) GASKET Heat Exchanger Cover (Use W/ 4 In. Dia. Heat Exchanger) |
2 | superseded |
| 33 | 891716 |
ПРОКЛАДКА Heat Exchanger Cover (Use W/ 3.75 In. Dia. Heat Exchanger) GASKET Heat Exchanger Cover (Use W/ 3.75 In. Dia. Heat Exchanger) |
2 | |
| 34 | 814878 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Специальный O-RING Special |
2 | superseded |
| 35 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | |
| 4 | 861947 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 5 | 863609 |
ВИНТ (M6 x 14) SCREW (M6 x 14) |
2 | |
| 6 | 12524 |
ПРОБКА (0.375-18 x 0.475), латунь PLUG (.375-18 x .475) Brass |
2 | |
| 7 | 805218T |
ДАТЧИК SENSOR |
1 | |
| 8 | 806490T |
ДАТЧИК Temerature SENDER Temerature |
1 | |
| 9 | 863358T |
ТЕРМОСТАТ 71°C (160°F) THERMOSTAT 71°C (160°F) |
1 | superseded |
| N.S. | 8079923 |
КРЫШКА Hose Clamp End COVER Hose Clamp End |
AR | superseded |
| NS | 863355 |
НАКЛЕЙКА Предостережение Heat Exchanger DECAL Caution Heat Exchanger |
1 |
