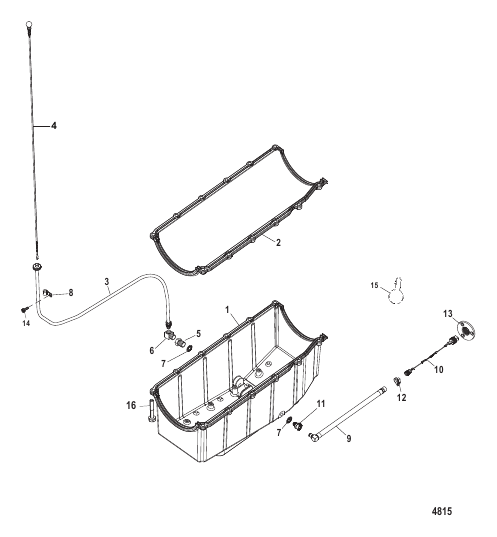

OIL PAN AND DRAIN SYSTEM
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 881653 |
ПОДДОН Масло PAN Oil |
1 | superseded |
| 10 | 862827 |
ТРОС В СБОРЕ TETHER ASSEMBLY |
1 | |
| 11 | 862811 |
ФИТИНГ Female Quick Disconnect (DESIGN I - With Quick Connect Hose Assembly) [0M628485] & Below FITTING Female Quick Disconnect (DESIGN I - With Quick Connect Hose Assembly) [0M628485] & Below |
1 | discontinued |
| 12 | 863481 |
ЗАЖИМ CLAMP |
1 | |
| 13 | 862777 |
ФЛАНЕЦ Drain FLANGE Drain |
1 | |
| 14 | 4000328 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
1 | superseded |
| 15 | 805524 |
ЗАЖИМ CLIP |
1 | |
| 16 | 898101392 |
БОЛТ (M8 x 30) BOLT (M8 x 30) |
13 | |
| 2 | 881612 |
ПРОКЛАДКА Oil Pan GASKET Oil Pan |
1 | |
| 3 | 863408 |
ТРУБА Engine Oil Gauge (MCM) TUBE Engine Oil Gauge (MCM) |
1 | |
| 4 | 86194210 |
УКАЗАТЕЛЬ Oil Level GAUGE Oil Level |
1 | |
| 5 | 863389 |
ФИТИНГ Oil Guage Tube FITTING Oil Guage Tube |
1 | superseded |
| 6 | 19697 |
КОЛЕНЧАТЫЙ ELBOW |
1 | |
| 7 | 49955 |
ПРОКЛАДКА Drain GASKET Drain |
2 | superseded |
| 8 | 65653 |
ЗАЖИМ CLIP |
1 | |
| 9 | 805505A4 |
РУКАВ Oil Drain (DESIGN I- With Quick Connect Hose Assembly) [0M628485] & Below HOSE Oil Drain (DESIGN I- With Quick Connect Hose Assembly) [0M628485] & Below |
1 | discontinued |
| 9 | 865281 |
РУКАВ Oil Drain (DESIGN II-Without Quick Connect Hose Assembly) [0M628486] & Up HOSE Oil Drain (DESIGN II-Without Quick Connect Hose Assembly) [0M628486] & Up |
1 | |
| 9 | 865280 |
РУКАВ Oil Drain (Jackshaft Models) (DESIGN II-Without Quick Connect Hose Assembly) [0M628486] & Up HOSE Oil Drain (Jackshaft Models) (DESIGN II-Without Quick Connect Hose Assembly) [0M628486] & Up |
1 | discontinued |
| NS | 883922 |
ОТРАЖАТЕЛЬНЫЙ ЩИТОК Oil Pan BAFFLE Oil Pan |
1 | discontinued |
| NS | 883923 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
AR | |
| NS | 805063 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
2 | superseded |
