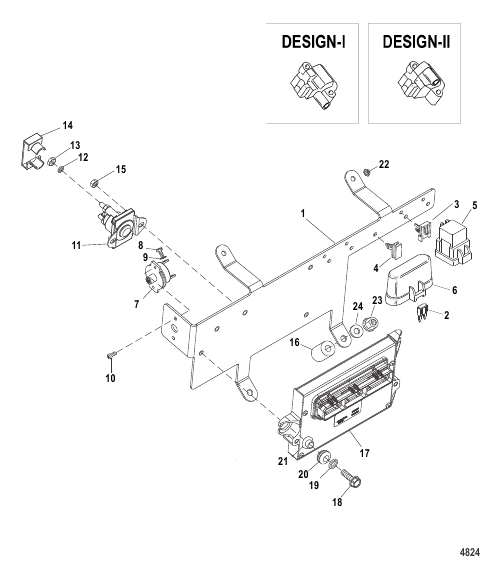

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 862539T |
КРОНШТЕЙН PCM (Use with Design-I Ignition Coil ) [0M376087] & Below BRACKET PCM (Use with Design-I Ignition Coil ) [0M376087] & Below |
1 | disc. |
| 1 | 862539T01 |
КРОНШТЕЙН PCM (Use with Design-II Ignition Coil) [0M376088] & Up BRACKET PCM (Use with Design-II Ignition Coil) [0M376088] & Up |
1 | |
| 10 | 57583 |
ВИНТ (№8-32 x .375) SCREW (#8-32 x .375) |
2 | superseded |
| 11 | 96158T |
ЭЛЕКТРОМАГНИТ SOLENOID |
1 | superseded |
| 12 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь Split Lock LOCKWASHER (.250) Stainless Steel Split Lock |
2 | |
| 13 | 94330 |
ГАЙКА (0.250-20), латунь NUT (.250-20) Brass |
2 | |
| 14 | 97861 |
РАЗЪЕДИНИТЕЛЬ Solenoid INSULATOR Solenoid |
1 | |
| 15 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 16 | 862995 |
ПРОСТАВКА SPACER |
1 | |
| 17 | 863618T7 |
PCM Блок управления движением (Base) (Mechanical Throttle and Shift) [0M667042] & Below PCM Propulsion Control Module (Base) (Mechanical Throttle and Shift) [0M667042] & Below |
1 | superseded |
| 17 | 865364T01 |
PCM Блок управления движением (Base) (Mechanical Throttle and Shift) [0M667043] & Up PCM Propulsion Control Module (Base) (Mechanical Throttle and Shift) [0M667043] & Up |
1 | superseded |
| 17 | 863784T01 |
PCM Блок управления движением (Base) (Digital Throttle and Shift) [0M672220] & Below PCM Propulsion Control Module (Base) (Digital Throttle and Shift) [0M672220] & Below |
1 | superseded |
| 17 | 863784T03 |
PCM Блок управления движением (Base) (Digital Throttle and Shift) [0M672221] & Up PCM Propulsion Control Module (Base) (Digital Throttle and Shift) [0M672221] & Up |
1 | |
| 17 | 863619T7 |
PCM Блок управления движением (H.O.) (Mechanical Throttle and Shift) [0M667042] & Below PCM Propulsion Control Module (H.O.) (Mechanical Throttle and Shift) [0M667042] & Below |
1 | superseded |
| 17 | 865366T01 |
PCM Блок управления движением (H.O.) (Mechanical Throttle and Shift) [0M667043] & Up PCM Propulsion Control Module (H.O.) (Mechanical Throttle and Shift) [0M667043] & Up |
1 | superseded |
| 17 | 863785T02 |
PCM Блок управления движением (H.O.) (Digital Throttle and Shift) [0M672221] & Up PCM Propulsion Control Module (H.O.) (Digital Throttle and Shift) [0M672221] & Up |
1 | superseded |
| 18 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
3 | |
| 19 | 856954 |
ВТУЛКА Electrical Plate BUSHING Electrical Plate |
3 | |
| 2 | 83296920 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – желтый – 20 A FUSE Mini - Yellow - 20 Ampere |
3 | superseded |
| 20 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 21 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
3 | |
| 22 | 863289 |
ГАЙКА (M6) NUT (M6) |
2 | disc. |
| 23 | 4002030 |
ГАЙКА (M8) NUT (M8) |
2 | |
| 24 | 12038 |
ШАЙБА WASHER |
2 | superseded |
| 3 | 804351 |
ЗАЖИМ Fuse Block Mounting CLIP Fuse Block Mounting |
1 | superseded |
| 4 | 804352 |
ЗАЖИМ Relay Mounting CLIP Relay Mounting |
3 | |
| 5 | 807057T |
РЕЛЕ (Mechanical Throttle and Shift) RELAY (Mechanical Throttle and Shift) |
3 | superseded |
| 5 | 807057T |
РЕЛЕ (Digital Throttle and Shift) RELAY (Digital Throttle and Shift) |
4 | superseded |
| 6 | 883562 |
КРЫШКА Fuse COVER Fuse |
1 | |
| 7 | 806950 |
ВЫКЛЮЧАТЕЛЬ Цепь – 50 ампер BREAKER Circuit - 50 Ampere |
1 | disc. |
| 8 | 68513 |
ВИНТ (№10-32 x 0.375), нержавеющая сталь SCREW (#10-32 x .375) Stainless Steel |
2 | |
| 9 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь Split Lock LOCKWASHER (#10) Stainless Steel Split Lock |
2 | |
| NS | 26419 |
ГАЙКА (№8-32), латунь NUT (#8-32) Brass |
2 | |
| NS | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь Split Lock LOCKWASHER (#10) Stainless Steel Split Lock |
2 |
