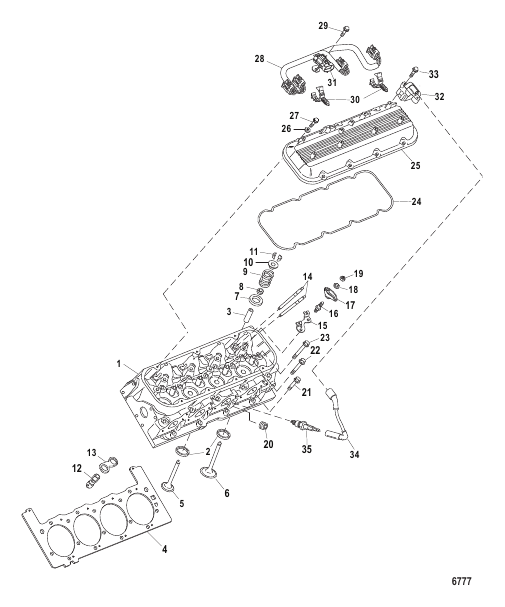

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 881684001 |
ГОЛОВКА ЦИЛИНДРА Starboard CYLINDER HEAD Starboard |
1 | disc. |
| 1 | 881685001 |
ГОЛОВКА ЦИЛИНДРА Port CYLINDER HEAD Port |
1 | superseded |
| 10 | 850464 |
ПРОБКА Valve Spring CAP Valve Spring |
8 | |
| 11 | 54530 |
КЛЮЧ Valve Stem KEY Valve Stem |
32 | |
| 12 | 850467 |
СЪЕМНИК Valve LIFTER Valve |
16 | |
| 13 | 845754 |
НАПРАВЛЯЮЩАЯ Valve Lifter GUIDE Valve Lifter |
8 | |
| 14 | 881682 |
ШТОК ТОЛКАТЕЛЯ Intake PUSH ROD Intake |
8 | superseded |
| 14 | 881683 |
ШТОК ТОЛКАТЕЛЯ Exhaust PUSH ROD Exhaust |
8 | |
| 15 | 881686 |
НАПРАВЛЯЮЩАЯ Rocker Arm GUIDE Rocker Arm |
8 | |
| 16 | 881635 |
ШПИЛЬКА STUD |
16 | |
| 17 | 881687 |
ARM ARM |
16 | superseded |
| 18 | 58041 |
ШАРИК BALL |
16 | |
| 19 | 801883 |
ГАЙКА NUT |
12 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seat NOT SOLD SEPARATE Seat |
||
| 20 | 75983 |
ПРОБКА PLUG |
2 | |
| 21 | 881642A01 |
КОМПЛЕКТ БОЛТОВ BOLT KIT |
1 | disc. |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW(M10x86) Component Of 881642A01 NOT SOLD SEPARATE SCREW(M10x86) Component Of 881642A01 |
AR | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SCREW (M10x103) Component Of 881642A01 NOT SOLD SEPARATE SCREW (M10x103) Component Of 881642A01 |
AR | |
| 24 | 881622 |
ПРОКЛАДКА Cylinder Head Cover GASKET Cylinder Head Cover |
2 | |
| 25 | 891870 |
КРЫШКА Cylinder Head COVER Cylinder Head |
2 | |
| 26 | 881621 |
ПРОКЛАДКА GASKET |
14 | |
| 27 | 881623 |
ВИНТ (M6 x 1) SCREW (M6 x 1) |
14 | |
| 28 | 891886001 |
ЖГУТ ПРОВОДОВ В СБОРЕ Ignition Coil Wiring HARNESS ASSEMBLY Ignition Coil Wiring |
2 | superseded |
| 29 | 881648 |
БОЛТ (M6 x 13) BOLT (M6 x 13) |
4 | superseded |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Guide, Valve NOT SOLD SEPARATE Guide, Valve |
||
| 30 | 881722 |
ЗАЖИМ Wiring Harness CLIP Wiring Harness |
2 | superseded |
| 31 | 881723 |
СОЕДИНИТЕЛЬ Harness to Harness CONNENCTOR Harness to Harness |
1 | disc. |
| 32 | 889925 |
КАТУШКА Ignition COIL Ignition |
8 | superseded |
| 33 | 881647 |
ВИНТ SCREW |
16 | |
| 34 | 881698 |
КОМПЛЕКТ ПРОВОДОВ (8 жил) Spark Plug WIRE KIT (8 Leads) Spark Plug |
1 | superseded |
| 34 | 888740 |
ПРОВОД Отдельный Spark Plug Use with Cylinders 1, 2, 7 and 8 WIRE Individual Spark Plug Use with Cylinders 1, 2, 7 and 8 |
4 | disc. |
| 34 | 888741 |
ПРОВОД Отдельный Spark Plug Use with Cylinders 3, 4, 5 and 6 WIRE Individual Spark Plug Use with Cylinders 3, 4, 5 and 6 |
4 | superseded |
| 35 | 863622001 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
8 | superseded |
| 4 | 881631 |
ПРОКЛАДКА Cylinder Head Port GASKET Cylinder Head Port |
1 | |
| 4 | 879150064 |
ПРОКЛАДКА Cylinder Head Starboard GASKET Cylinder Head Starboard |
1 | disc. |
| 5 | 881674 |
КЛАПАН Intake Standard VALVE Intake Standard |
8 | |
| 5 | 881675 |
КЛАПАН Intake (.003) Over Size VALVE Intake (.003) Over Size |
AR | disc. |
| 5 | 881676 |
КЛАПАН Intake (.015) Over Size VALVE Intake (.015) Over Size |
AR | superseded |
| 5 | 881677 |
КЛАПАН Intake (.030) Over Size VALVE Intake (.030) Over Size |
AR | |
| 6 | 891713 |
КЛАПАН Exhaust Standard VALVE Exhaust Standard |
8 | superseded |
| 6 | 881679 |
КЛАПАН Exhaust (.003) Over Size VALVE Exhaust (.003) Over Size |
AR | disc. |
| 6 | 881680 |
КЛАПАН Exhaust (.015) Over Size VALVE Exhaust (.015) Over Size |
AR | |
| 6 | 881681 |
КЛАПАН Exhaust (.030) Over Size VALVE Exhaust (.030) Over Size |
AR | |
| 7 | 850463 |
РОТАТОР Valve ROTATOR Valve |
8 | |
| 8 | 881637T |
УПЛОТНЕНИЕ Valve Stem Oil SEAL Valve Stem Oil |
16 | |
| 9 | 881672001 |
ПРУЖИНА Valve SPRING Valve |
16 | |
| NS | 881720 |
ФИКСАТОР 2 Spark Plug Wire RETAINER 2 Spark Plug Wire |
AR | disc. |
| NS | 883924 |
ФИКСАТОР Conduit RETAINER Conduit |
AR |
