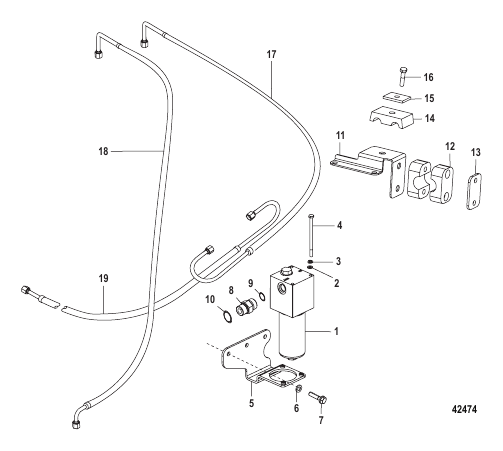

AXIUS Steering High Pressure Filter Conversion Kit, Gen I
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M8024873 |
КОМПЛЕКТ ФИЛЬТРА Высокое давление Conversion FILTER KIT High Pressure Conversion |
1 | |
| - | 879172A19 |
КОМПЛЕКТ ПЫЛЕЗАЩИТНОГО КОЛПАЧКА (Refer to Service Bulletin SMC-09-06) DUST CAP KIT (Refer to Service Bulletin SMC-09-06) |
1 | discontinued |
| 1 | 879288T |
ФИЛЬТР High Pressure FILTER High Pressure |
1 | |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O-RING NOT SOLD SEPARATE O-RING |
1 | |
| 11 | 879194T |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 12 | 8M2017128 |
ПЛАСТИНА PLATE |
1 | |
| 13 | 8M2017127 |
ЗАЖИМ CLAMP |
2 | |
| 14 | 8M2017031 |
ЗАЖИМ CLAMP |
2 | |
| 15 | 8M2017033 |
ПЛАСТИНА PLATE |
1 | |
| 16 | 4000332 |
ВИНТ (M6 x 35) SCREW (M6 x 35) |
1 | |
| 17 | 8M2016704 |
РУКАВ Cylinder to Filter (Refer to Service Bulletin SMC-09-06) HOSE Cylinder to Filter (Refer to Service Bulletin SMC-09-06) |
1 | |
| 18 | 8M2016700 |
РУКАВ Cylinder to Cooler (Refer to Service Bulletin SMC-09-06) HOSE Cylinder to Cooler (Refer to Service Bulletin SMC-09-06) |
1 | |
| 19 | 8M2016702 |
РУКАВ Pump to Filter HOSE Pump to Filter |
1 | |
| 2 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
3 | superseded |
| 3 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
3 | |
| 4 | 844886 |
ВИНТ (0.250-20 x 4.250) SCREW (.250-20 x 4.250) |
3 | |
| 5 | 879172T |
КРОНШТЕЙН BRACKET |
1 | |
| 6 | 72521 |
СТОПОРНАЯ ШАЙБА Внутренние зубья LOCKWASHER Internal Tooth |
3 | |
| 7 | 816585 |
ВИНТ (0.312-18 x 0.875) SCREW (.312-18 x .875) |
3 | |
| 8 | 8M2015982 |
ФИТИНГ Переходник (с -6ORF в -8ORB) FITTING Adapter (-6ORF TO -8ORB) |
2 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O-RING NOT SOLD SEPARATE O-RING |
1 |
