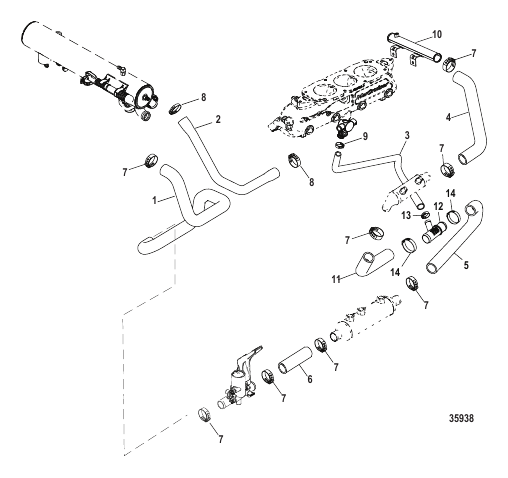

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M2007279 |
РУКАВ Water Drain to Heat Exchanger HOSE Water Drain to Heat Exchanger |
1 | |
| 10 | 879312T65 |
ТРУБА TUBE |
1 | |
| 11 | 8M2012662 |
РУКАВ Y-Fitting to Oil Cooler HOSE Y-Fitting to Oil Cooler |
1 | |
| 12 | 862993 |
ФИТИНГ Y, (2) 1-1/4" Ниппели шлангов / (1) 3/4" Ниппель шланга FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 | |
| 13 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
1 | |
| 14 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 2 | 864488 |
РУКАВ Heat Exchanger to Port Exhaust Manifold Drain HOSE Heat Exchanger to Port Exhaust Manifold Drain |
1 | |
| 3 | 4285069 |
РУКАВ (Общая длина 44.00") Manifold to Y-Fitting Port, Cut to 14 Inch Length HOSE (44.00 Inches Bulk) Manifold to Y-Fitting Port, Cut to 14 Inch Length |
1 | superseded |
| 4 | 863894 |
РУКАВ Connector Tube to Oil Cooler HOSE Connector Tube to Oil Cooler |
1 | |
| 5 | 8M2012661 |
РУКАВ Steering Cooler to Y-Fitting HOSE Steering Cooler to Y-Fitting |
1 | |
| 6 | 8M2007278 |
РУКАВ Steering Cooler to Drain Actuator HOSE Steering Cooler to Drain Actuator |
1 | |
| 7 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
8 | |
| 8 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
2 | |
| 9 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 |
