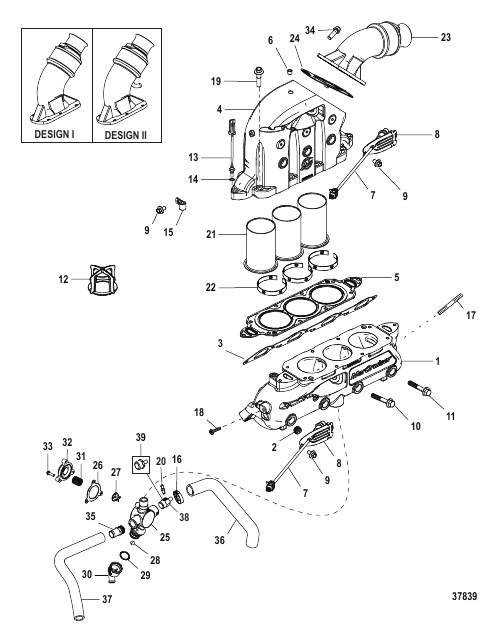

Exhaust Manifold
Parts (50)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 866389T01 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп MANIFOLD ASSEMBLY Exhaust |
2 | superseded |
| 10 | 40011151 |
ВИНТ (M8 x 35), нержавеющая сталь SCREW (M8 x 35) Stainless Steel |
8 | |
| 11 | 40011158 |
ВИНТ (M8 x 70), нержавеющая сталь SCREW (M8 x 70) Stainless Steel |
8 | |
| 12 | 860222A1 |
РЕЗОНАТОР RESONATOR |
1 | |
| 13 | 885342002 |
ДАТЧИК В СБОРЕ SENSOR ASSEMBLY |
2 | superseded |
| 14 | 896699 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.78 мм x 0.08 мм) O-RING (1.78 mm x .08 mm) |
1 | |
| 15 | 65653 |
ЗАЖИМ CLIP |
2 | |
| 16 | 815504206 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
4 | |
| 17 | 424632 |
ШПИЛЬКА (M8 x 37.1) STUD (M8 x 37.1) |
2 | |
| 18 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
2 | |
| 19 | 4009535 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
20 | |
| 2 | 864689 |
ПРОБКА Расширитель PLUG Expansion |
8 | |
| 20 | 16604 |
ФИТИНГ Прямой (0.125-27) (MIE) (See Note) FITTING Straight (.125-27) (MIE) (See Note) |
2 | |
| 21 | 879288T47 |
КАТАЛИЗАТОР CATALYST |
6 | |
| 22 | 866775 |
КОЛЬЦО Удержание Catalyst RING Retention Catalyst |
6 | |
| 23 | 879288T79 |
КОЛЕНЧАТЫЙ Выхлоп No Rise (See Note) ELBOW Exhaust No Rise (See Note) |
2 | |
| 23 | 879288T80 |
КОЛЕНЧАТЫЙ Выхлоп No Rise (MIE V-Drive only) (See Note) ELBOW Exhaust No Rise (MIE V-Drive only) (See Note) |
2 | |
| 23 | 879288T81 |
КОМПЛЕКТ ПОДЪЕМНОГО ПАТРУБКА Выхлопной – 2" патр. (Contains 2 Elbows) (Includes Hose Ref #38) (See Note) RISER KIT Exhaust - 2 Inch Rise (Contains 2 Elbows) (Includes Hose Ref #38) (See Note) |
1 | superseded |
| 23 | 879288T82 |
КОМПЛЕКТ ПОДЪЕМНОГО ПАТРУБКА Выхлопной – 4" патр. (Contains 2 Elbows) (Includes Hose Ref #38) (See Note) RISER KIT Exhaust - 4 Inch Rise (Contains 2 Elbows) (Includes Hose Ref #38) (See Note) |
1 | superseded |
| 23 | 879288T83 |
КОМПЛЕКТ ПОДЪЕМНОГО ПАТРУБКА Выхлопной – 6" патр. (Contains 2 Elbows) (Includes Hose Ref #38) (See Note) RISER KIT Exhaust - 6 Inch Rise (Contains 2 Elbows) (Includes Hose Ref #38) (See Note) |
1 | superseded |
| 23 | 879288T84 |
КОМПЛЕКТ ПОДЪЕМНОГО ПАТРУБКА Выхлопной – 8" патр. (Contains 2 Elbows) (Includes Hose Ref #38) (See Note) RISER KIT Exhaust - 8 Inch Rise (Contains 2 Elbows) (Includes Hose Ref #38) (See Note) |
1 | |
| 24 | 8M2003931 |
ПРОКЛАДКА (Elbow 0 rise includes 1 gasket each) GASKET (Elbow 0 rise includes 1 gasket each) |
2 | |
| 25 | 879288T59 |
КЛАПАН Узел тарельчатого клапана VALVE Poppet Assembly |
2 | |
| 26 | 8M2010475 |
ПРОКЛАДКА Крышка тарельчатого клапана GASKET Poppet Cover |
1 | |
| 27 | 8M2010186 |
ТАРЕЛЬЧАТЫЙ КЛАПАН POPPET |
1 | |
| 28 | 863129 |
ШАРИК BALL |
1 | |
| 29 | 864701 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.112 x 0.103) O-RING (1.112 x .103) |
1 | |
| 3 | 8M2000886 |
ПРОКЛАДКА Cylinder Head to Exhaust Manifold GASKET Cylinder Head to Exhaust Manifold |
1 | superseded |
| 30 | 862994T |
ФИТИНГ FITTING |
1 | |
| 31 | 42996 |
ПРУЖИНА (Нержавеющая сталь) SPRING (Stainless Steel) |
1 | |
| 32 | 8M8020539 |
ПРОБКА Перепускной клапан CAP Poppet Valve |
1 | |
| 33 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
3 | |
| 34 | 8M2003966 |
ВИНТ (M8), шестигранный фланец SCREW (M8) Hex Flange |
12 | superseded |
| 35 | 866725 |
ФИТИНГ Прямой (0.750-14) (See Note) FITTING Straight (.750-14) (See Note) |
2 | |
| 36 | 8M2012906 |
РУКАВ (Общая длина 45") Poppet to Elbow (MCM & MIE Inline) 0 & 2 in. Risers Cut to 22 In. (Included in 2 in. Riser Kit Ref #23) (See Note) HOSE (45 Inches Bulk) Poppet to Elbow (MCM & MIE Inline) 0 & 2 in. Risers Cut to 22 In. (Included in 2 in. Riser Kit Ref #23) (See Note) |
2 | superseded |
| 36 | 8M2012906 |
РУКАВ (Общая длина 45") Poppet to Elbow (MCM & MIE Inline) 4,6,8 in. Risers Cut to 26 in. (Included in Riser Kit Ref #23) (See Note) HOSE (45 Inches Bulk) Poppet to Elbow (MCM & MIE Inline) 4,6,8 in. Risers Cut to 26 in. (Included in Riser Kit Ref #23) (See Note) |
2 | superseded |
| 36 | 8M2012906 |
РУКАВ (Общая длина 45") Poppet to Elbow (MIE Vdrive) 0,2,4 in. Risers Cut to 40 in. (Included in 4 in. Riser Kit Ref #23) (See Note) HOSE (45 Inches Bulk) Poppet to Elbow (MIE Vdrive) 0,2,4 in. Risers Cut to 40 in. (Included in 4 in. Riser Kit Ref #23) (See Note) |
2 | superseded |
| 36 | 8M2012906 |
РУКАВ (Общая длина 45") Poppet to Elbow (MIE Vdrive) 6,8 in. Risers Cut to 45 in. (Included in Riser Kit Ref #23) (See Note) HOSE (45 Inches Bulk) Poppet to Elbow (MIE Vdrive) 6,8 in. Risers Cut to 45 in. (Included in Riser Kit Ref #23) (See Note) |
2 | superseded |
| 37 | 8M2004598 |
РУКАВ To Heat Exchanger Starboard (See Note) HOSE To Heat Exchanger Starboard (See Note) |
1 | |
| 37 | 8M2004608 |
РУКАВ To Heat Exchanger Port (See Note) HOSE To Heat Exchanger Port (See Note) |
1 | |
| 38 | 8M2016321 |
ФИТИНГ Прямой (3/4 x 0.5) (MIE) (See Note) FITTING Straight (3/4 x 0.5) (MIE) (See Note) |
2 | |
| 39 | 8M2004390 |
ФИТИНГ Прямой (MCM) (See Note) FITTING Straight (MCM) (See Note) |
2 | |
| 4 | 866391T02 |
КОЛЛЕКТОР Выхлоп (See Note) COLLECTOR Exhaust (See Note) |
2 | discontinued |
| 5 | 866390 |
ПРОКЛАДКА Collector, Exhaust GASKET Collector, Exhaust |
1 | |
| 6 | 73379 |
ПРОБКА (.250-18) PLUG (.250-18) |
1 | superseded |
| 7 | 8M2003959 |
ДАТЧИК Кислород SENSOR Oxygen |
4 | |
| 8 | 8M2004289 |
КРЫШКА Датчик кислорода COVER Oxygen Sensor |
4 | discontinued |
| 9 | 4010610 |
ВИНТ (M6 x 10), нержавеющая сталь SCREW (M6 x 10) Stainless Steel |
AR | |
| NS | 8M2016531 |
ЗАЖИМ Закрытый CLAMP Closed |
2 | discontinued |
| NS | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
2 |
