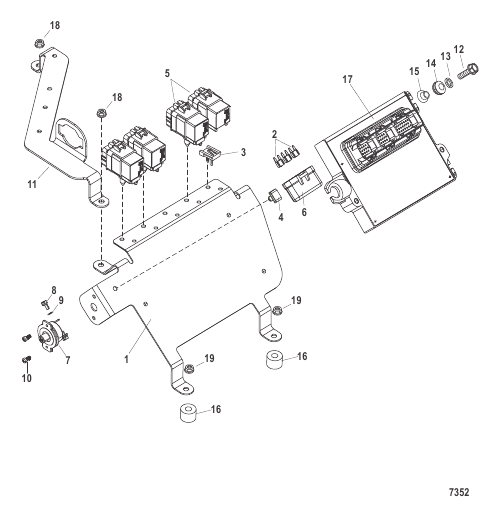

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 865638T |
КРОНШТЕЙН BRACKET |
1 | |
| 10 | 57583 |
ВИНТ (№8-32 x .375) SCREW (#8-32 x .375) |
2 | superseded |
| 11 | 865639T |
КРОНШТЕЙН BRACKET |
1 | |
| 12 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
3 | |
| 13 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
3 | |
| 14 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 15 | 856954 |
ВТУЛКА Electrical Plate BUSHING Electrical Plate |
3 | |
| 16 | 862995 |
ПРОСТАВКА SPACER |
1 | |
| 17 | 866090T01 |
PCM Блок управления движением Base (Mechanical Throttle and Shift) PCM Propulsion Control Module Base (Mechanical Throttle and Shift) |
1 | superseded |
| 17 | 865851T01 |
PCM Блок управления движением Base (Digital Throttle and Shift) [0W343985] & Below PCM Propulsion Control Module Base (Digital Throttle and Shift) [0W343985] & Below |
1 | superseded |
| 17 | 866361T02 |
PCM Блок управления движением Base (Digital Throttle and Shift) [0W343986] & Up PCM Propulsion Control Module Base (Digital Throttle and Shift) [0W343986] & Up |
1 | superseded |
| 17 | 866091T01 |
PCM Блок управления движением High Output (Mechanical Throttle and Shift) PCM Propulsion Control Module High Output (Mechanical Throttle and Shift) |
1 | superseded |
| 17 | 865856T01 |
PCM Блок управления движением High Output (Digital Throttle and Shift) [0W343985] & Below PCM Propulsion Control Module High Output (Digital Throttle and Shift) [0W343985] & Below |
1 | superseded |
| 17 | 866363T02 |
PCM Блок управления движением High Output (Digital Throttle and Shift) [0W343986] & Up PCM Propulsion Control Module High Output (Digital Throttle and Shift) [0W343986] & Up |
1 | superseded |
| 18 | 4002030 |
ГАЙКА (M8) NUT (M8) |
2 | |
| 19 | 863289 |
ГАЙКА (M6) NUT (M6) |
2 | disc. |
| 2 | 83296920 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – желтый – 20 A FUSE Mini - Yellow - 20 Ampere |
3 | superseded |
| 3 | 804351 |
ЗАЖИМ Fuse Block Mounting CLIP Fuse Block Mounting |
1 | superseded |
| 4 | 804352 |
ЗАЖИМ Relay Mounting CLIP Relay Mounting |
3 | |
| 5 | 882751A04 |
РЕЛЕ В СБОРЕ Mechanical Throttle and Shift RELAY ASSEMBLY Mechanical Throttle and Shift |
4 | |
| 5 | 882751A04 |
РЕЛЕ В СБОРЕ Digital Throttle and Shift RELAY ASSEMBLY Digital Throttle and Shift |
5 | |
| 6 | 883562 |
КРЫШКА Fuse COVER Fuse |
1 | |
| 7 | 806950 |
ВЫКЛЮЧАТЕЛЬ Цепь – 50 ампер BREAKER Circuit - 50 Ampere |
1 | disc. |
| 8 | 68513 |
ВИНТ (№10-32 x 0.375), нержавеющая сталь SCREW (#10-32 x .375) Stainless Steel |
2 | |
| 9 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь Split Lock LOCKWASHER (#10) Stainless Steel Split Lock |
2 | |
| NS | 865457T04 |
ЖГУТ ПРОВОДОВ В СБОРЕ Engine (Mechanical Throttle and Shift) HARNESS ASSEMBLY Engine (Mechanical Throttle and Shift) |
1 | superseded |
| NS | 865653T02 |
ЖГУТ ПРОВОДОВ В СБОРЕ Engine (Digital Throttle and Shift) HARNESS ASSEMBLY Engine (Digital Throttle and Shift) |
1 | superseded |
