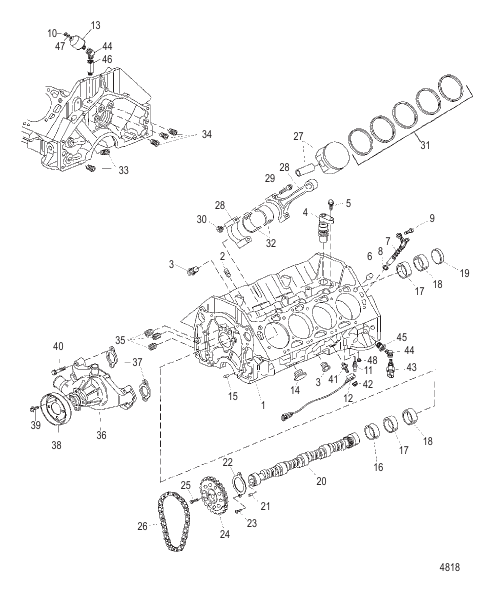

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО BLOCK-Engine (Order Longblock Assembly) NOT SOLD SEPARATE BLOCK-Engine (Order Longblock Assembly) |
1 | |
| 10 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
1 | |
| 11 | 805563 |
СОЕДИНИТЕЛЬ (NPTF 0.500" к инвертированной свече зажигания 0.500") CONNECTOR (.500 Inch NPTF To .500 Inch Inverted Flare) |
1 | |
| 12 | 878187 |
ДАТЧИК В СБОРЕ Детонационное сгорание SENSOR ASSEMBLY Knock |
2 | superseded |
| 13 | 815425T |
ДАТЧИК В СБОРЕ Oil Pressure SENDER ASSEMBLY Oil Pressure |
1 | superseded |
| 14 | 48340 |
ПРОБКА (0.250-18 x 0.41) Oil Galley PLUG (.250-18 x .41) Oil Galley |
1 | superseded |
| 14 | 34487 |
ПРОБКА (0.375-18 x 0.42) Pipe - Oil Galley PLUG (.375-18 x .42) Pipe - Oil Galley |
2 | superseded |
| 14 | 48341 |
ПРОБКА (0.125-27 x 0.375) Oil Galley PLUG (.125-27 x .375) Oil Galley |
AR | |
| 14 | 881568 |
ПРОБКА Engine Coolant PLUG Engine Coolant |
1 | |
| 14 | 881569 |
ПРОБКА (0.250-18 x 54) Engine Coolant PLUG (.250-18 x .54) Engine Coolant |
1 | |
| 15 | 35312 |
ШТИФТ Штифт (1/4" в диаметре) PIN Dowel (1/4 In. Diameter) |
1 | superseded |
| 16 | 881659 |
ПОДШИПНИК Camshaft (pos 1) BEARING Camshaft (pos 1) |
1 | disc. |
| 17 | 881660 |
ПОДШИПНИК Camshaft (pos 2 / 5) BEARING Camshaft (pos 2 / 5) |
2 | disc. |
| 18 | 881661 |
ПОДШИПНИК Camshaft (pos 3 / 4) BEARING Camshaft (pos 3 / 4) |
2 | disc. |
| 19 | 94140 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА Camshaft Bearing Hole EXPANSION PLUG Camshaft Bearing Hole |
1 | |
| 2 | 48341 |
ПРОБКА (0.125-27 x 0.375) Oil Galley PLUG (.125-27 x .375) Oil Galley |
3 | |
| 20 | 881627 |
РАСПРЕДЕЛИТЕЛЬНЫЙ ВАЛ (Base) CAMSHAFT (Base) |
1 | superseded |
| 20 | 881628 |
РАСПРЕДЕЛИТЕЛЬНЫЙ ВАЛ (H.O.) CAMSHAFT (H.O.) |
1 | superseded |
| 21 | 35312 |
ШТИФТ Штифт (1/4" в диаметре) Camshaft Sprocket Location PIN Dowel (1/4 In. Diameter) Camshaft Sprocket Location |
1 | superseded |
| 22 | 845941 |
ФИКСАТОР Camshaft RETAINER Camshaft |
1 | |
| 23 | 881588 |
ВИНТ SCREW |
1 | |
| 24 | 892640 |
ЗВЕЗДОЧКА Camshaft SPROCKET Camshaft |
1 | superseded |
| 25 | 881570 |
ВИНТ (M8 x 25 мм) SCREW (M8 x 25 MM) |
3 | |
| 26 | 881626 |
ЦЕПЬ Camshaft Timing CHAIN Camshaft Timing |
1 | |
| 27 | 881592 |
ПОРШЕНЬ В СБОРЕ Стандарт (Starboard) [BASE 0W020104 / H.O. 0W020080] & Below PISTON ASSEMBLY Standard (Starboard) [BASE 0W020104 / H.O. 0W020080] & Below |
4 | superseded |
| 27 | 881592002 |
ПОРШЕНЬ В СБОРЕ Стандартная / плавающая конструкция (Starboard) [BASE 0W020105 / H.O. 0W020081] & Up PISTON ASSEMBLY Standard/Floating Design (Starboard) [BASE 0W020105 / H.O. 0W020081] & Up |
4 | disc. |
| 27 | 881592001 |
ПОРШЕНЬ В СБОРЕ Стандартная / плавающая конструкция (Starboard) [BASE 0W020105 / H.O. 0W020081] & Up PISTON ASSEMBLY Standard/Floating Design (Starboard) [BASE 0W020105 / H.O. 0W020081] & Up |
4 | disc. |
| 27 | 883515 |
ПОРШЕНЬ В СБОРЕ Стандартн. (Port) [BASE 0W020104 / H.O. 0W020080] & Below PISTON ASSEMBLY Standard (Port) [BASE 0W020104 / H.O. 0W020080] & Below |
4 | superseded |
| 27 | 883515002 |
ПОРШЕНЬ В СБОРЕ Стандартная / плавающая конструкция (Port) [BASE 0W020105 / H.O. 0W020081] & Up PISTON ASSEMBLY Standard/Floating Design (Port) [BASE 0W020105 / H.O. 0W020081] & Up |
4 | disc. |
| 27 | 883515001 |
ПОРШЕНЬ В СБОРЕ Стандартная / плавающая конструкция (Port) [BASE 0W020105 / H.O. 0W020081] & Up PISTON ASSEMBLY Standard/Floating Design (Port) [BASE 0W020105 / H.O. 0W020081] & Up |
4 | disc. |
| 27 | 881596 |
ПОРШЕНЬ В СБОРЕ Большой размер 0.030 (Starboard) [BASE 0W020104 / H.O. 0W020080] & Below PISTON ASSEMBLY .030 Oversize (Starboard) [BASE 0W020104 / H.O. 0W020080] & Below |
AR | superseded |
| 27 | 881596002 |
ПОРШЕНЬ В СБОРЕ 0.030 / плавающая конструкция (Starboard) [BASE 0W020105 / H.O. 0W020081] & Up PISTON ASSEMBLY .030/Floating Design (Starboard) [BASE 0W020105 / H.O. 0W020081] & Up |
AR | disc. |
| 27 | 881596001 |
ПОРШЕНЬ В СБОРЕ 0.030 / плавающая конструкция Without Connecting Rod(Starboard) [BASE 0W020105 / H.O. 0W020081] & Up PISTON ASSEMBLY .030/Floating Design Without Connecting Rod(Starboard) [BASE 0W020105 / H.O. 0W020081] & Up |
AR | disc. |
| 27 | 881597 |
ПОРШЕНЬ В СБОРЕ Большой размер 0.030 (Port) [BASE 0W020104 / H.O. 0W020080] & Below PISTON ASSEMBLY .030 Oversize (Port) [BASE 0W020104 / H.O. 0W020080] & Below |
AR | superseded |
| 27 | 881597002 |
ПОРШЕНЬ В СБОРЕ 0.030 / плавающая конструкция (Port) [BASE 0W020105 / H.O. 0W020081] & Up PISTON ASSEMBLY .030/Floating Design (Port) [BASE 0W020105 / H.O. 0W020081] & Up |
AR | |
| 27 | 881597001 |
ПОРШЕНЬ В СБОРЕ 0.030 / плавающая конструкция Without Connecting Rod(Port) [BASE 0W020105 / H.O. 0W020081] & Up PISTON ASSEMBLY .030/Floating Design Without Connecting Rod(Port) [BASE 0W020105 / H.O. 0W020081] & Up |
AR | disc. |
| 28 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО ROD-Connecting NOT SOLD SEPARATE ROD-Connecting |
8 | |
| 29 | 883917 |
ВИНТ Connecting Rod SCREW Connecting Rod |
16 | |
| 3 | 883919 |
ПРОБКА Coolant Drain PLUG Coolant Drain |
1 | superseded |
| 30 | 883918 |
ГАЙКА Connecting Rod NUT Connecting Rod |
16 | superseded |
| 31 | 881601 |
КОМПЛЕКТ КОЛЬЦА Piston(Standard) RING KIT Piston(Standard) |
8 | |
| 31 | 881602 |
КОМПЛЕКТ КОЛЬЦА Piston (.030 Over Size) RING KIT Piston (.030 Over Size) |
AR | |
| 32 | 883239 |
ПОДШИПНИК Connecting Rod BEARING Connecting Rod |
8 | superseded |
| 33 | 881567 |
ПРОБКА Oil Galley PLUG Oil Galley |
4 | superseded |
| 34 | 881598 |
ПРОБКА Oil Galley PLUG Oil Galley |
3 | superseded |
| 35 | 48341 |
ПРОБКА (0.125-27 x 0.375) Oil Galley PLUG (.125-27 x .375) Oil Galley |
AR | |
| 35 | 34487 |
ПРОБКА (0.375-18 x 0.42) Pipe - Oil Galley PLUG (.375-18 x .42) Pipe - Oil Galley |
2 | superseded |
| 35 | 48340 |
ПРОБКА (0.250-18 x 0.41) Oil Galley PLUG (.250-18 x .41) Oil Galley |
1 | superseded |
| 36 | 883514 |
НАСОС Circulating PUMP Circulating |
superseded | |
| 37 | 881603 |
ПРОКЛАДКА Circulating Pump GASKET Circulating Pump |
2 | superseded |
| 38 | 862583 |
ШКИВ Circulating Pump PULLEY Circulating Pump |
1 | disc. |
| 39 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
4 | |
| 4 | 881669 |
ПРИВОД Масляный насос Oil Pump DRIVE Oil Pump Oil Pump |
1 | superseded |
| 40 | 881576 |
ВИНТ (M10 x 65) SCREW (M10 x 65) |
3 | |
| 40 | 884036 |
ВИНТ (M10 x 95) SCREW (M10 x 95) |
1 | disc. |
| 41 | 862915 |
ШПИЛЬКА (0.250-18/M10, специальный) Knock Sensor STUD (.250-18/M10 Special) Knock Sensor |
2 | |
| 42 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием Knock Sensor NUT (M10) Brass/Nickel Plated Knock Sensor |
2 | |
| 43 | 881879A6 |
ДАТЧИК (0-100 фунтов на кв. дюйм) Oil Pressure SENSOR (0 - 100 PSI) Oil Pressure |
1 | superseded |
| 44 | 29085 |
ФИТИНГ Колено (45 градусов) FITTING Elbow (45 Degree) |
2 | superseded |
| 45 | 64013 |
ФИТИНГ (Вилка 0.375 к гнезду 0.125) Reducer FITTING (.375 Male To .125 Female) Reducer |
1 | |
| 46 | 805059 |
ФИТИНГ Reducer Bushing FITTING Reducer Bushing |
1 | |
| 47 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
1 | |
| 48 | 38407 |
ПРОБКА (0.500-14) Pipe PLUG (.500-14) Pipe |
1 | |
| 5 | 881590 |
ВИНТ (M8 x 20) Oil Pump SCREW (M8 x 20) Oil Pump |
1 | |
| 6 | 845758 |
ШТИФТ Штифт Cylinder Head Locating PIN Dowel Cylinder Head Locating |
4 | superseded |
| 7 | 881667 |
ДАТЧИК Crankshaft Position SENSOR Crankshaft Position |
1 | superseded |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SEAL-Crankshaft Position Sensor NOT SOLD SEPARATE SEAL-Crankshaft Position Sensor |
1 | |
| 9 | 881595 |
ВИНТ (M6 x 21) Crankshaft Position Sensor SCREW (M6 x 21) Crankshaft Position Sensor |
1 | |
| NS | 865519A01 |
ЛОНГ-БЛОК В СБОРЕ Base (Block Codes 4WW and 4WY) LONGBLOCK ASSEMBLY Base (Block Codes 4WW and 4WY) |
1 | superseded |
| NS | 865752A01 |
ЛОНГ-БЛОК В СБОРЕ Base (Block Codes 4ZW and 4ZY) LONGBLOCK ASSEMBLY Base (Block Codes 4ZW and 4ZY) |
1 | disc. |
| NS | 865521A01 |
ЛОНГ-БЛОК В СБОРЕ H.O. (Block Codes 4WA and 4WF) LONGBLOCK ASSEMBLY H.O. (Block Codes 4WA and 4WF) |
1 | superseded |
| NS | 865754A01 |
ЛОНГ-БЛОК В СБОРЕ H.O (Block Codes 4ZA and 4ZF) LONGBLOCK ASSEMBLY H.O (Block Codes 4ZA and 4ZF) |
1 | disc. |
